Hitachi CP-A220N User Manual

6

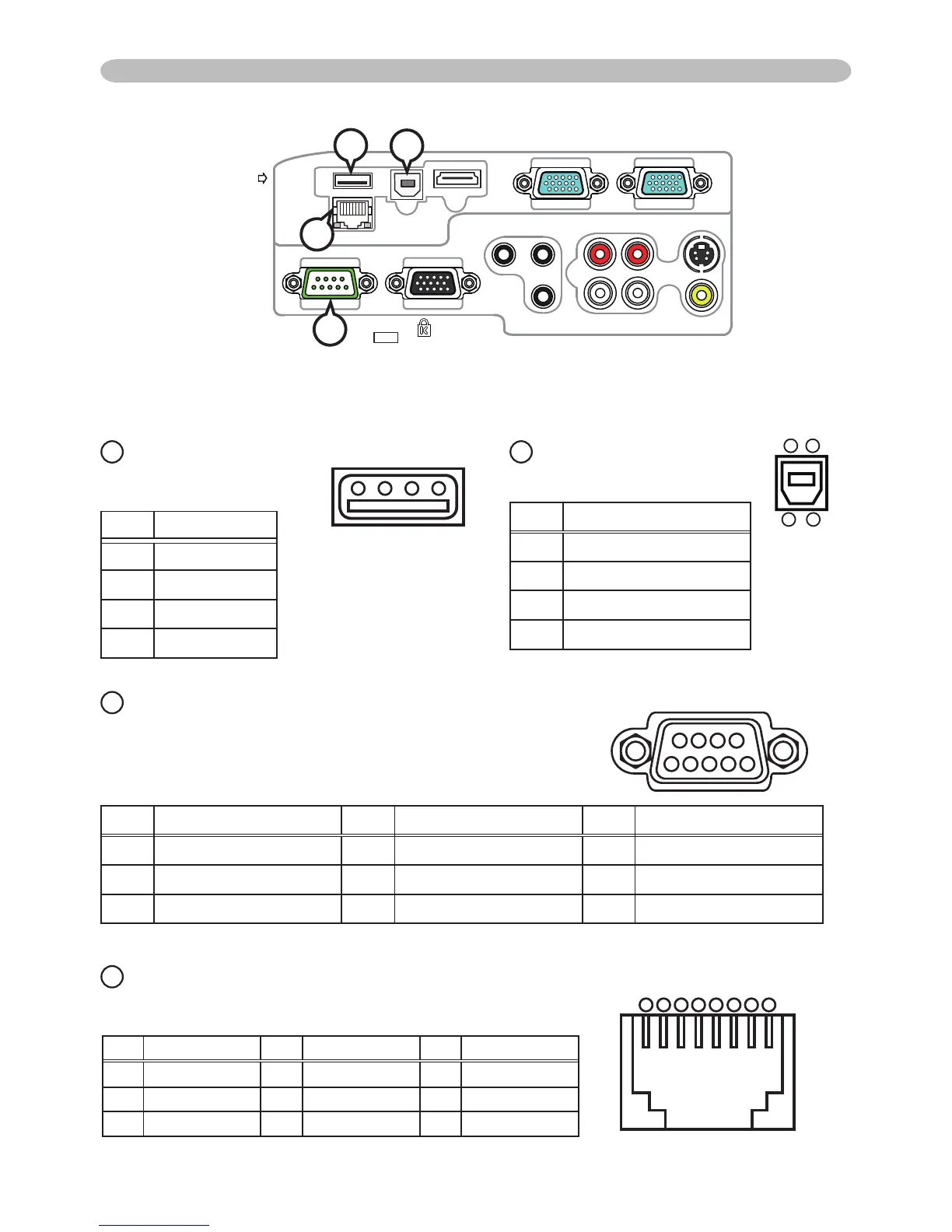

Connection to the ports (continued)
O
USB TYPE B
USB B type jack
Pin Signal
1 +5V
2 - Data
3 + Data
4 Ground
4
3
21
P
CONTROL
D-sub 9pin plug
• About the details of RS-232C communication,
please refer to the section "RS-232C Communication".
Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)
Q
LAN
RJ-45 jack
87654
3
21
Pin Signal Pin Signal Pin Signal
1 TX+ 4 - 7 -
2 TX- 5 - 8 -
3 RX+ 6 RX-
N
USB TYPE A
USB A type jack
4
3
2 1
Pin Signal
1 +5V
2 - Data
3 + Data
4 Ground
9
5 4 3 2 1
6
7
8
COMPUTER IN1COMPUTER IN2
HDMI
USB TYPE B
S-VIDEO
VIDEO
AUDIO OUT
AUDIO IN3AUDIO IN1
AUDIO IN2
MIC
MONITOR OUT
CONTROL
USB
TYPE A
DC5V
0.5A
N
O
Q
P

Hitachi CP-A220N Specifications

General

Matrix size	0.63 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	106 kHz
Horizontal synchronization (min)	15 kHz
Throw ratio	0.3:1
Focal length range	- mm
Lamp power	210 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	5000 h
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
RMS rated power	10 W
Number of built-in speakers	1
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Optical disc player type	Not included
Noise level	35 dB
Certification	UL, C-UL, FCC, CE
Noise level (economic mode)	28 dB
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	310 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	303 mm
Width	344.93 mm
Height	85.09 mm
Weight	3900 g
