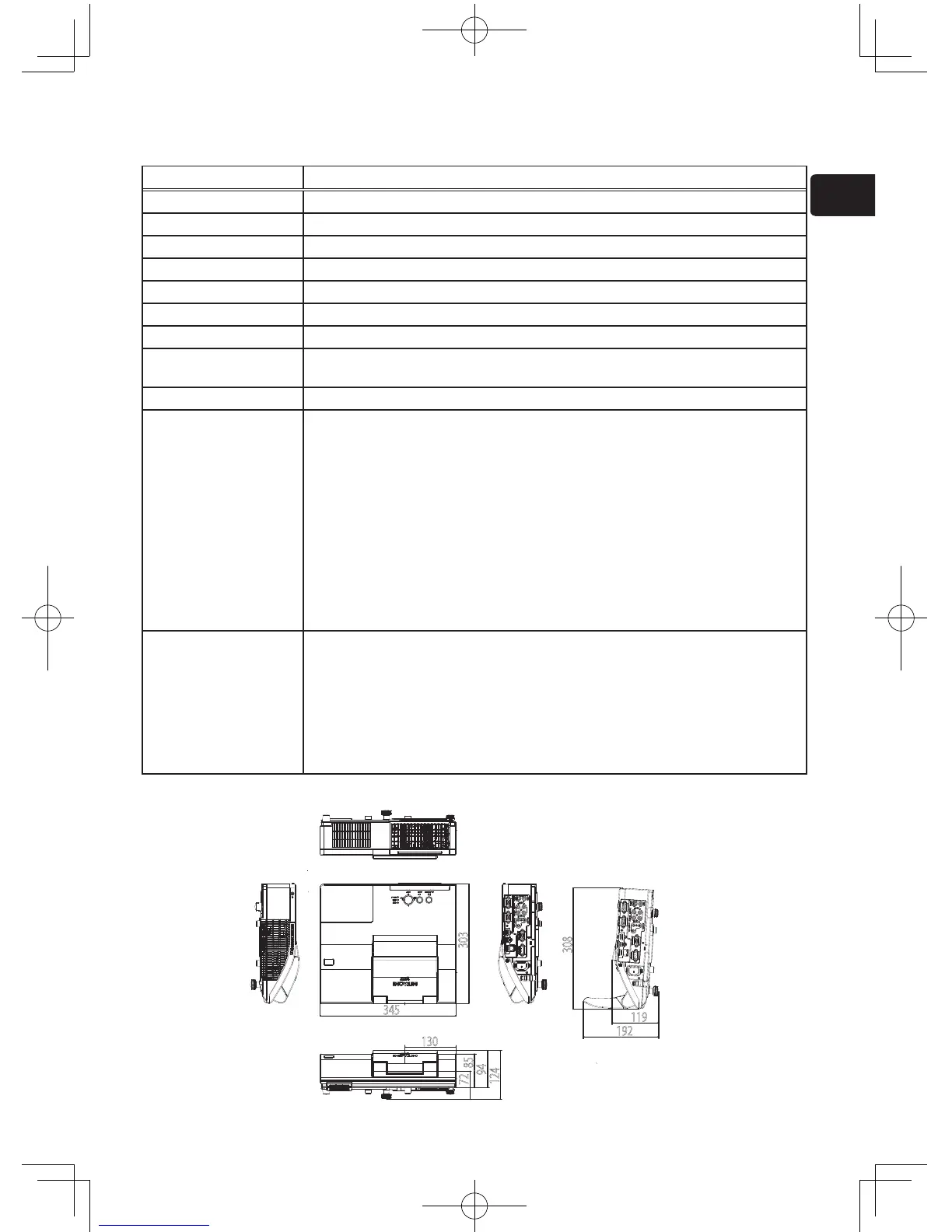

Item Specication
Product name Liquid crystal projector
Liquid Crystal Panel 786,432 pixels (1024 horizontal x 768 vertical)
Lamp 210W UHP
Speaker 10W
Power supply AC 100-120V/3.1A, AC 220-240V/1.6A
Power consumption AC 100-120V:310 W, AC 220-240V:300W
Temperature range 5 ~ 35°C (Operating)
Size
345 (W) x 85 (H) x 303 (D) mm
* Not including protruding parts. Please refer to the following gure.
Weight (mass) approx. 3.8 kg
Ports
Computer input port
COMPUTER IN1
....................... D-sub 15 pin mini x1
COMPUTER IN2
....................... D-sub 15 pin mini x1
Computer output port
MONITOR OUT
....................... D-sub 15 pin mini x1
Video input port
S-VIDEO ..............mini DIN 4 pin x1
VIDEO ................................. RCA x1
HDMI input port
HDMI ............... HDMI connector ×1
Audio input/output port
AUDIO IN1 ................ Stereo mini x1
AUDIO IN2 ................ Stereo mini x1
AUDIO IN3 (R, L) ................. RCA x2
AUDIO OUT (R, L) ............... RCA x2
Others
USB TYPE A ......................USB-Ax1
USB TYPE B .....................USB-Bx1
CONTROL ................. D-sub 9 pin x1
LAN ..................................... RJ45 x1
MIC .............................. Mono mini x1
Optional parts
Lamp: DT01181
Filter set: UX37191
Mounting accessary: HAS-AW100 (Bracket for ceiling mount)
HAS-203L (Fixing adaptor for low ceilings)
HAS-P100 (Fixing adaptor for high ceilings)
HAS-K250 (
Wall mount unit : only for CP-A220N/CP-A300N )
Laser remote control: RC-R008
* For more information, please consult your dealer.
[unit: mm]
Specications

Hitachi CP-A220N Specifications

General

Matrix size	0.63 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	16.78 million colors
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	2000:1
Digital gamma correction	Yes
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	106 kHz
Horizontal synchronization (min)	15 kHz
Throw ratio	0.3:1
Focal length range	- mm
Lamp power	210 W
Light source type	Lamp
Service life of light source	3000 h
Service life of light source (economic mode)	5000 h
Full HD	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
RMS rated power	10 W
Number of built-in speakers	1
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Component video (YPbPr/YCbCr) in	0
Optical disc player type	Not included
Noise level	35 dB
Certification	UL, C-UL, FCC, CE
Noise level (economic mode)	28 dB
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	90 - 264 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	310 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth	303 mm
Width	344.93 mm
Height	85.09 mm
Weight	3900 g
