Hitachi CP-AW2505 User Guide

7

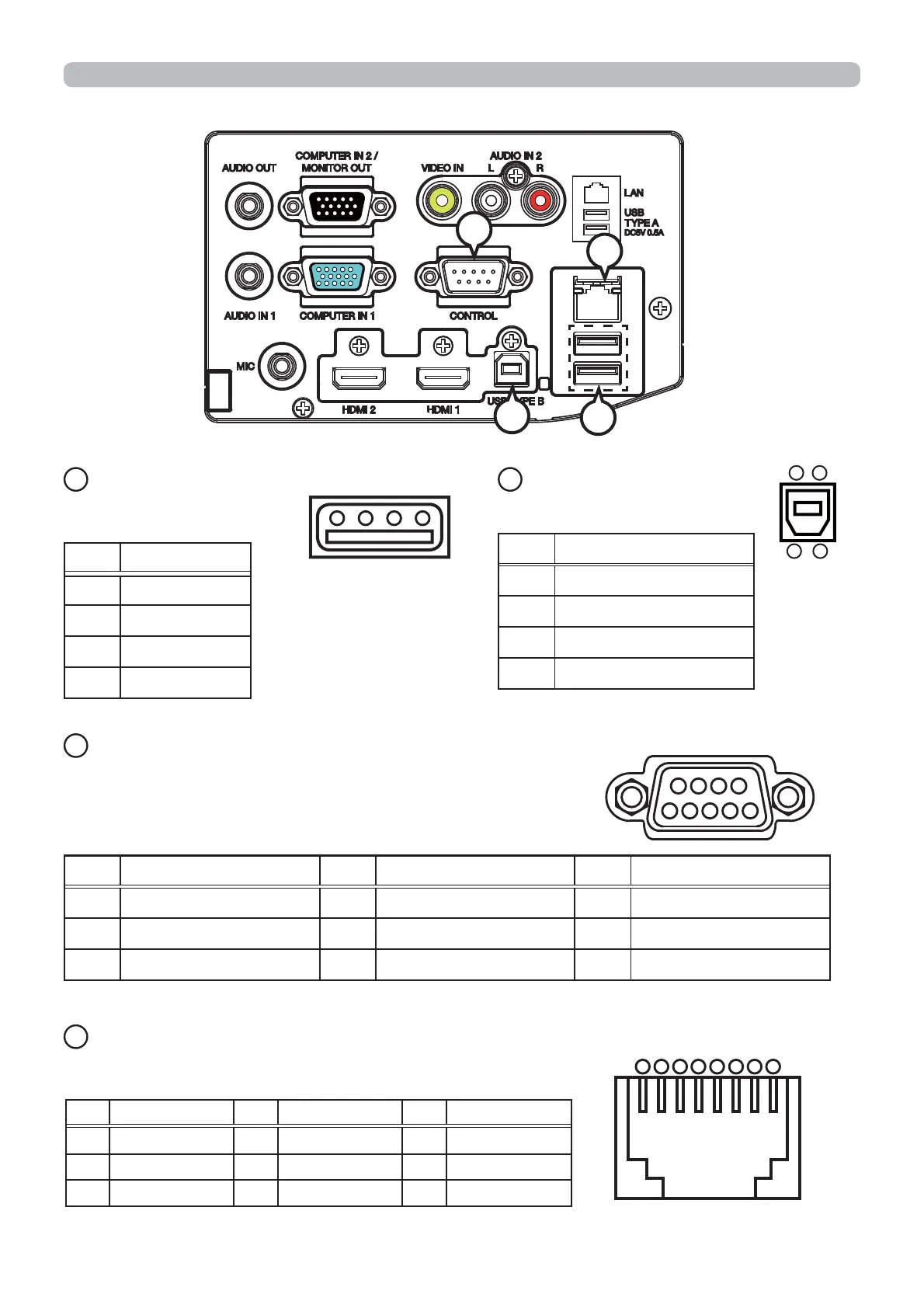

Connection to the ports (continued)
L
USB TYPE B
86%%W\SHMDFN
Pin Signal
1+5V
2 - Data
3 + Data
4 Ground
4
3
21
M
CONTROL
'VXESLQSOXJ
$ERXWWKHGHWDLOVRI56&FRPPXQLFDWLRQ
SOHDVHUHIHUWRWKHVHFWLRQ56&&RPPXQLFDWLRQ
Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)
N
LAN
5-MDFN
87654
3
21
Pin Signal Pin Signal Pin Signal
1TX+ 4- 7-
2TX- 5- 8-
3RX+ 6RX-
K
USB TYPE A
86%$W\SHMDFN
4
3
2 1
Pin Signal
1+5V
2 - Data
3 + Data
4 Ground
9
54321
6
7
8
N
M
K
L

Hitachi CP-AW2505 Specifications

General

Matrix size	0.59 \
Matrix type	3-panel (p-Si TFT active)
Number of colors	16.78 million colors
Native aspect ratio	16:10
Projection distance	0.368 - 0.649 m
Projection technology	3LCD
Contrast ratio (typical)	10000:1
Screen size compatibility	60 - 100 \
Projector native resolution	WXGA (1280x800)
Projector brightness (economic mode)	1800 ANSI lumens
Lamp power	250 W
Light source type	Lamp
Service life of light source	10000 h
Digital zoom	1.35 x
Focal length range	- mm
3D	No
Full HD	-
Supported video modes	480i, 480p, 576i, 720p, 1080i, 1080p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Microphone in	Yes
Audio (L/R) out	0
Composite video in	1
Serial interface type	RS-232C
USB 2.0 ports quantity	3
Noise level	37 dB
Noise level (economic mode)	30 dB
RMS rated power	16 W
Placement	Desktop, Ceiling
Product type	Ultra short throw projector
Product color	White
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.35 W
Power consumption (typical)	350 W
Sustainability certificates	RoHS
Remote control type	IR

Weight and Dimensions

Depth	360 mm
Width	377 mm
Height	136 mm
Weight	4300 g
