5

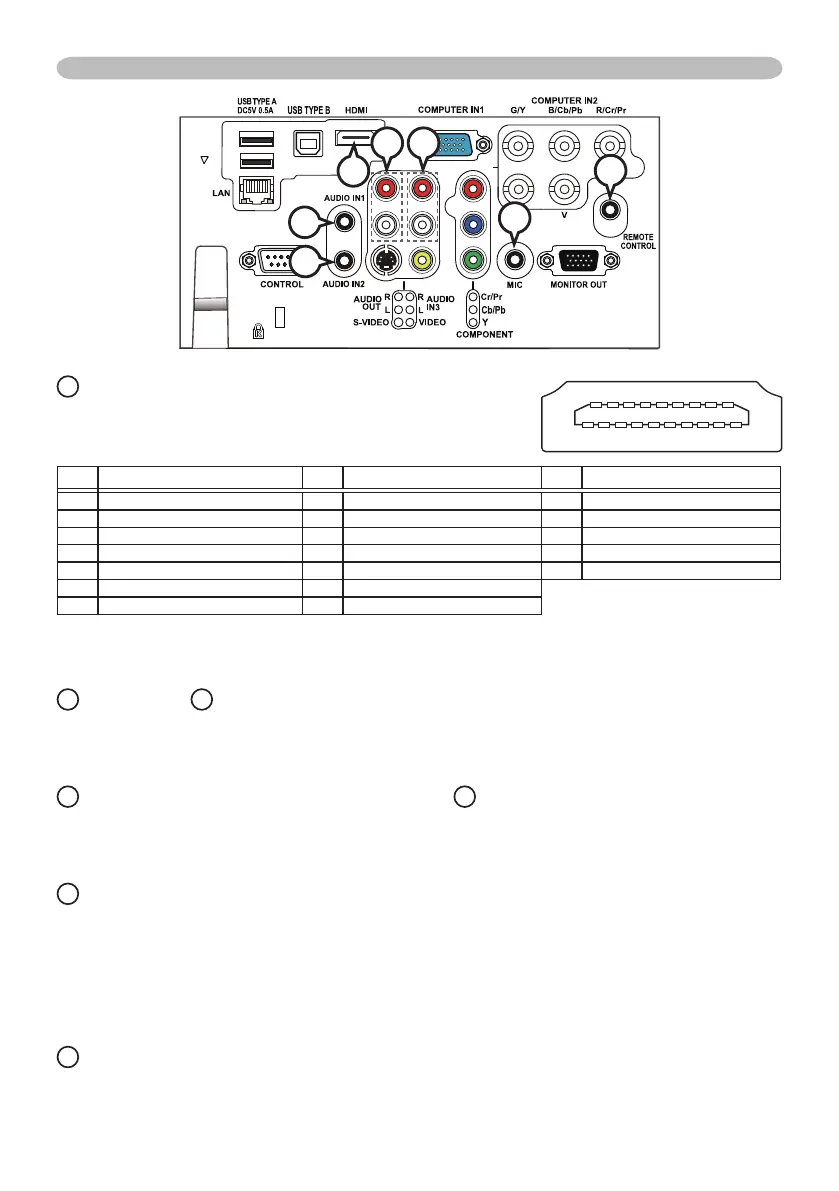

Connection to the ports (continued)
H
AUDIO IN1,
I
AUDIO IN2
Ø3.5 stereo mini jack
• 47kΩ terminator
J
AUDIO IN3 (R, L)
K
AUDIO OUT (R, L)
RCA jack x2 RCA jack x2
• 47kΩ terminator • 1kΩ output impedance
L
MIC
Ø3.5 mono mini jack
<Low level>
• 2 mVrms, 1kΩ terminator
<High level>
• 20 mVrms, 1kΩ terminator
M
REMOTE CONTROL
Ø3.5 stereo mini jack
G
HDMI
• Type :Digital audio/video connector
• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)
Pin Signal Pin Signal Pin Signal
1 T.M.D.S. Data2 + 8 T.M.D.S. Data0 Shield 15 SCL
2 T.M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA
3 T.M.D.S. Data2 - 10 T.M.D.S. Clock + 17 DDC/CEC Ground
4 T.M.D.S. Data1 + 11 T.M.D.S. Clock Shield
18
+5V Power
5 T.M.D.S. Data1 Shield 12 T.M.D.S. Clock - 19 Hot Plug Detect
6 T.M.D.S. Data1 - 13 CEC
7 T.M.D.S. Data0 + 14 Reserved(N.C. on device)
* HDMI, the HDMI logo, and High-De nition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC in the United States and other countries.
M
JK
G
H
I
L
To Next Page
