English
6
FUNCTIONAL DESCRIPTION
NOTE:
The information contained in this Instruction Manual is designed to assist you in the safe operation and
maintenance of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all
safey instructions contained in this manual.
Some illustrations in this Instruction Manual may show details or attachments that differ from those on
your own power tool.

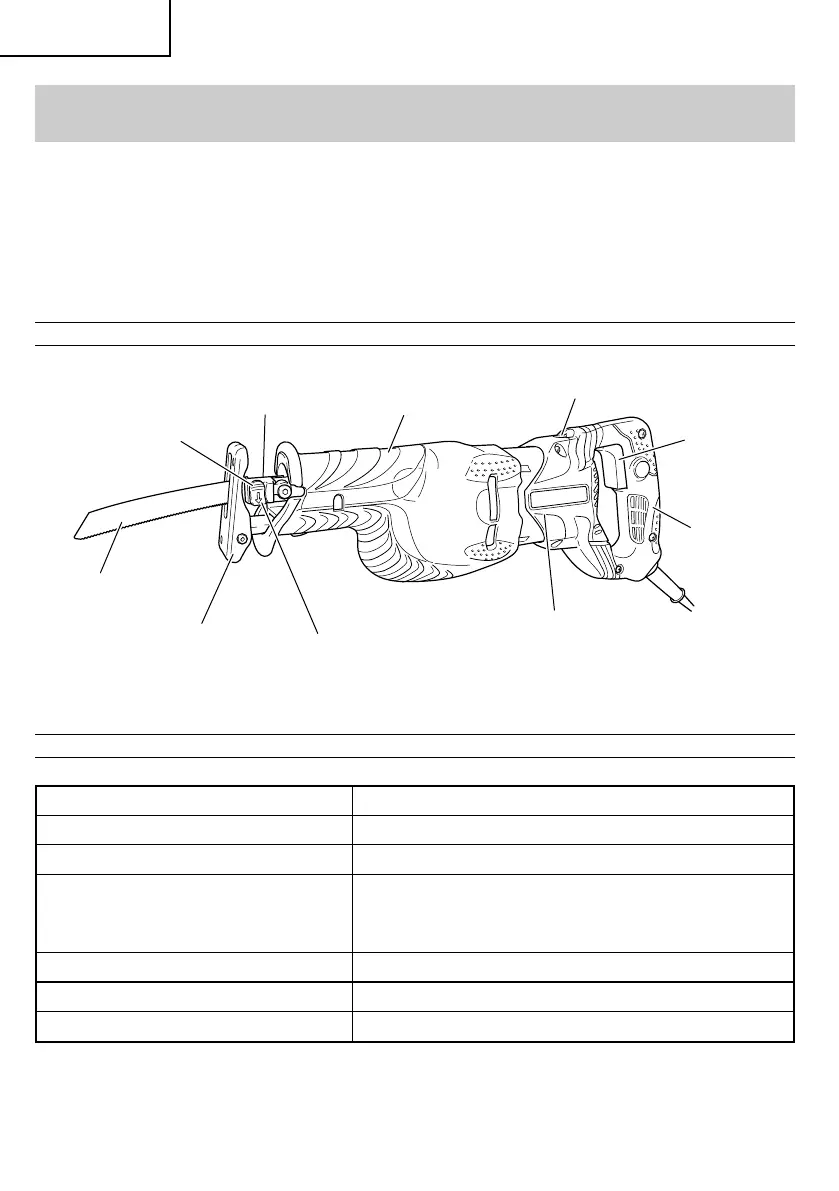

NAME OF PARTS
SPECIFICATIONS
Motor Single-Phase, Series Commutator Motor
Power Source Single-Phase, 120 V AC 60 Hz
Current 10 A
Capacity Mild Steel Pipe: O.D. 5" (130 mm)
Vinyl Chloride Pipe: O.D. 5" (130 mm)
Wood: Depth 5" (130 mm)
No-Load Speed 0 – 2800/min.
Stroke 1-1/8" (29 mm)
Weight (without cord) 7.3 lbs (3.3 kg)
Front Cover
Brush Cap
Lever
Blade Holder
Fig. 1
Housing
Switch
Trigger
Handle
Blade
Base
Rubber Cap
01Eng_CR13V2_US 10/22/08, 18:086
