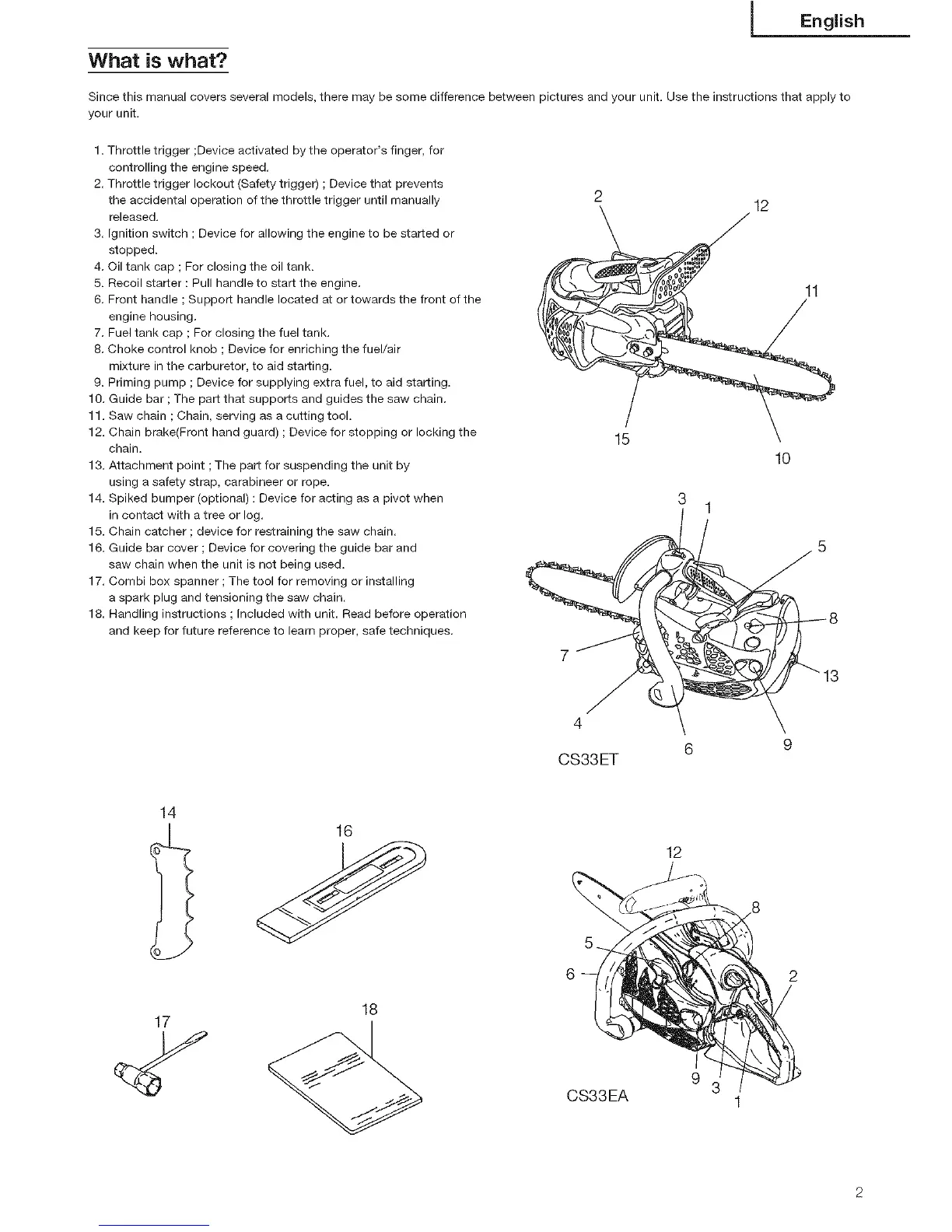

What is what?
English
Since this manual covers several models, there may be some difference between pictures and your unit. Use the instructions that apply to
your unit.
1. Throttle trigger ;Device activated by the operator's finger, for
controlling the engine speed.
2. Throttle trigger lockout (Safety trigger) ; Device that prevents
the accidental operation of the throttle trigger until manually
released.
3. Ignition switch ; Device for allowing the engine to be started or
stopped.
4. Oil tank cap ; For closing the oil tank.
5. Recoil starter : Pull handle to start the engine.
6. Front handle ; Support handle located at or towards the front of the
engine housing.
7. Fuel tank cap ; For closing the fuel tank.
8. Choke control knob ; Device for enriching the fuel/air
mixture in the carburetor, to aid starting.
9. Priming pump ; Device for supplying extra fuel, to aid starting.
10. Guide bar ; The part that supports and guides the saw chain.
11. Saw chain ; Chain, serving as a cutting tool.
12. Chain brake(Front hand guard) ; Device for stopping or locking the
chain.
13. Attachment point ; The part for suspending the unit by
using a safety strap, carabineer or rope.
14. Spiked bumper (optional) : Device for acting as a pivot when
in contact with a tree or log.
15. Chain catcher ; device for restraining the saw chain.
16. Guide bar cover ; Device for covering the guide bar and
saw chain when the unit is not being used.
17. Combi box spanner ; The tool for removing or installing
a spark plug and tensioning the saw chain.
18. Handling instructions ; Included with unit. Read before operation
and keep for future reference to learn proper, safe techniques.
