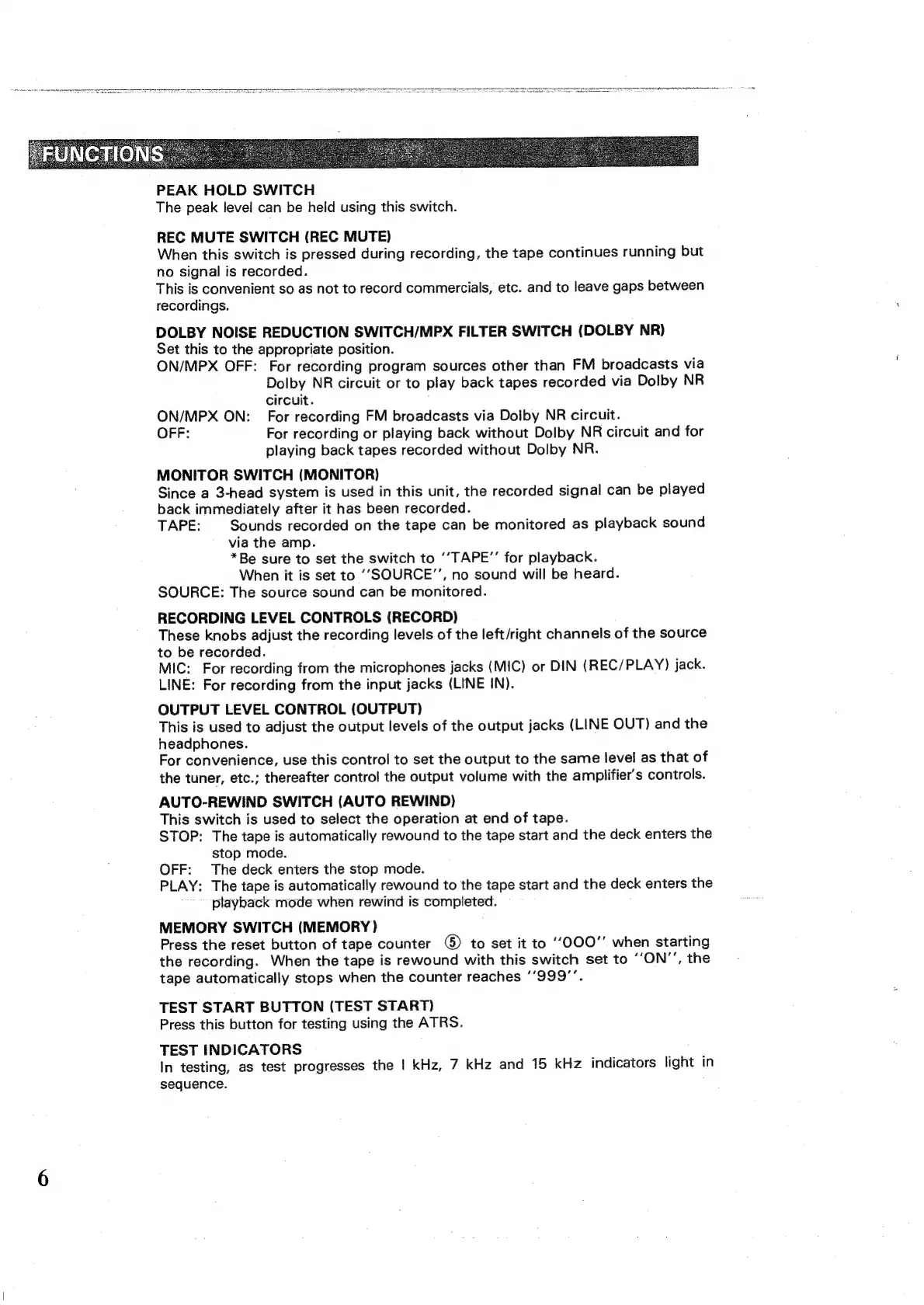

Hitachi D-3300M - Page 6

PEAK HOLD SWITCH
The peak level can be held using this switch.
REC MUTE SWITCH (REC MUTE)
When
this
switch
is
pressed
during
recording,
the
tape
continues
running
but
no
signal
is
recorded.
This
is
convenient
so
as
not
to
record
commercials,
etc.
and
to
leave
gaps
between
recordings.
DOLBY NOISE REDUCTION SWITCH/MPX FILTER SWITCH (DOLBY NR)
Set this to the appropriate position.
ON/MPX
OFF:
For
recording
program
sources
other
than
FM
broadcasts
via
Dolby
NR
circuit
or
to
play
back
tapes
recorded
via
Dolby
NR
circuit.
ON/MPX ON: For recording FM broadcasts via Doiby NR circuit.
OFF: For recording or playing back without Dolby NR circuit and for
playing back tapes recorded without Dolby NR.
MONITOR SWITCH (MONITOR)
Since
a
3-head
system
is
used
in
this
unit,
the
recorded
signal
can
be
played
back immediately after it has been recorded.
TAPE:
Sounds
recorded
on
the
tape
can
be
monitored
as
playback
sound
via the amp.
*Be sure to set the switch to ‘’TAPE”’ for playback.
When it is set to ‘“SOURCE”’, no sound will be heard.
SOURCE: The source sound can be monitored.
RECORDING LEVEL CONTROLS (RECORD)
These knobs
adjust
the
recording
levels
of
the
left/right
channels
of
the
source
to
be
recorded.
MIC:
For
recording
from
the
microphones
jacks
(MIC)
or
DIN
(REC/PLAY)
jack.
LINE:
For
recording
from
the
input
jacks
(LINE
IN).
OUTPUT LEVEL CONTROL (OUTPUT)
This
is
used
to
adjust
the
output
levels
of
the
output
jacks
(LINE
OUT)
and
the
headphones.
For
convenience,
use
this
control
to
set
the
output
to
the
same
level
as
that
of
the
tuner,
etc.;
thereafter
control
the
output
volume
with
the
amplifier’s
controls.
AUTO-REWIND SWITCH (AUTO REWIND)
This switch is used to select the operation at end of tape.
STOP:
The
tape
is
automatically
rewound
to
the
tape
start
and
the
deck
enters
the
stop
mode.
OFF: The deck enters the stop mode.
PLAY:
The
tape
is
automatically
rewound
to
the
tape
start
and
the
deck
enters
the
playback
mode
when
rewind
is
completed.
MEMORY SWITCH (MEMORY)
Press the reset button of tape counter ®) to set it to ‘‘O000”’ when starting
the
recording.
When
the
tape
is
rewound
with
this
switch
set
to
“ON”,
the
tape automatically stops when the counter reaches ‘’999’’.
TEST START BUTTON (TEST START)
Press this button for testing using the ATRS.
TEST
INDICATORS
: ;
In
testing,
as
test
progresses
the
|
kHz,
7
kHz
and
15
kHz
indicators
light
in
sequence.
