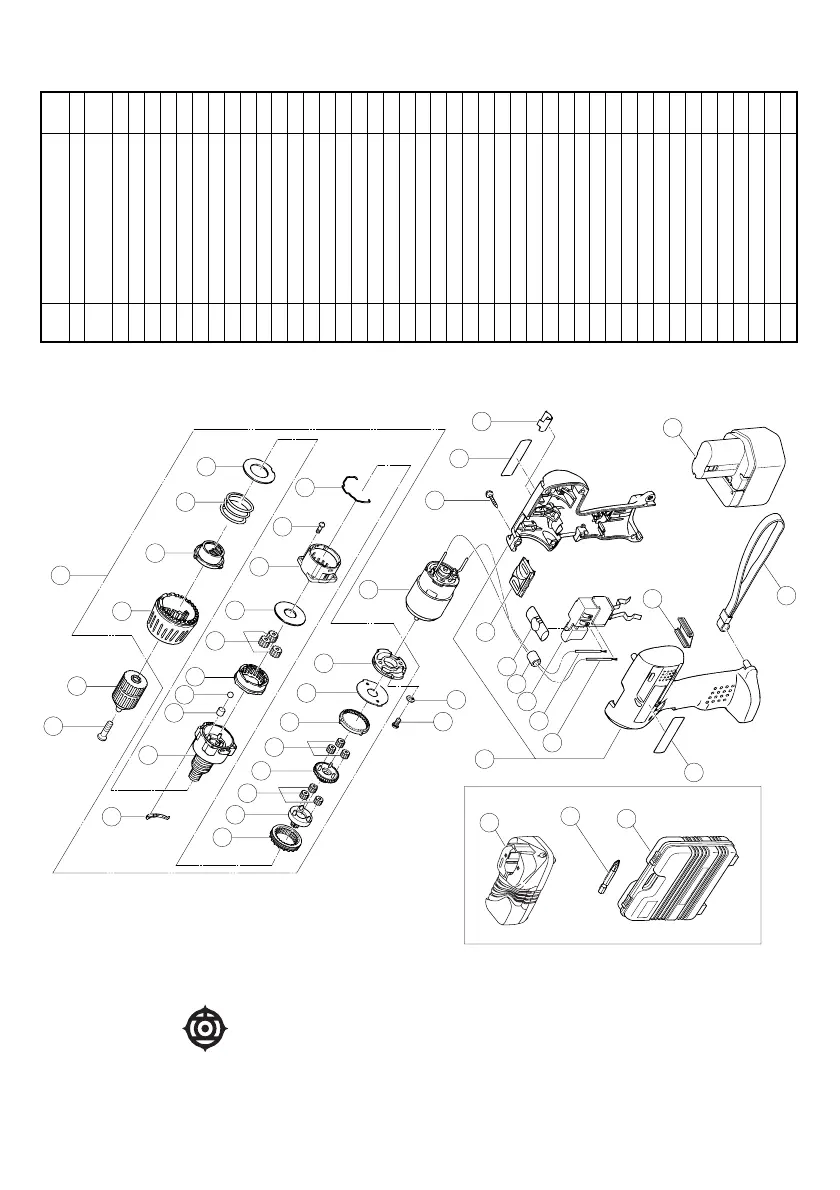

Item
No.
Part Name Q’TY
1
SPECIAL SCREW (LEFT HAND) M5 × 27
1
2A
DRILL CHUCK 10TLRK-N
(W/O CHUCK WRENCH)
1
3GEAR BOX ASS'Y 1
4CAP 1
5NUT 1
6SPRING 1
7WASHER (D) 1
8CLICK SPRING 1
9FRONT CASE 1
10 ROLLER 6
11 STEEL BALL D5 6
12 RING GEAR 1
13 PLANET GEAR (C) SET 1
14 WASHER (A) 1
15 REAR CASE 1
16 SCREW SET D3 × 12 1
17 SHIF T ARM 1
18 SLIDE RING GEAR 1
19 PINION (C) 1
20 PLANET GEAR (B) SET 1
21 PINION (B) 1
22 PLANET GEAR (A) SET 1
23 FIRST RING GEAR 1
24 WASHER (B) 1
25 MOTOR SPACER 1
26 MOTOR 1
27
TAPPI NG SCREW (W/WASHER) D3 × 16
7
28 NAME PLATE 1
29 BIT HOLDER 1
30 MACHINE SCREW M3 × 82
31 SPRING WASHER M3 2
32 HOUSING (A).(B) SET 1
33
INTERNAL WIRE (B) (BLACK)
1
34 INTERNAL WIRE (B) (RED) 1
35
DC-SPEED CONTROL SWITCH
1
36 FERRITE CORE 1
37 PUSHING BUTTON 1
38 SHIFT KNOB 1
39 HITACHI LABEL 1
40 STRAP (BLACK) 1
41 TERMINAL SUPPORT (A) 1
42 BATTERY BCC1212 1
501
CHARGER (MODEL UC18YK)
1
502 + DRIVER BIT NO.2 55L 1
503 CASE (OFF-BLACK GREEN) 1
