Hitachi E24SB - OPERATION AND MAINTENANCE

7
English
OPERATION AND MAINTENANCE
NOTE: The information contained in this Instruction Manual is designed to assist you in the safe operation
and maintenance of the generator. Some illustrations in this Instruction Manual may show details
or attachments that differ from those on your own generator.

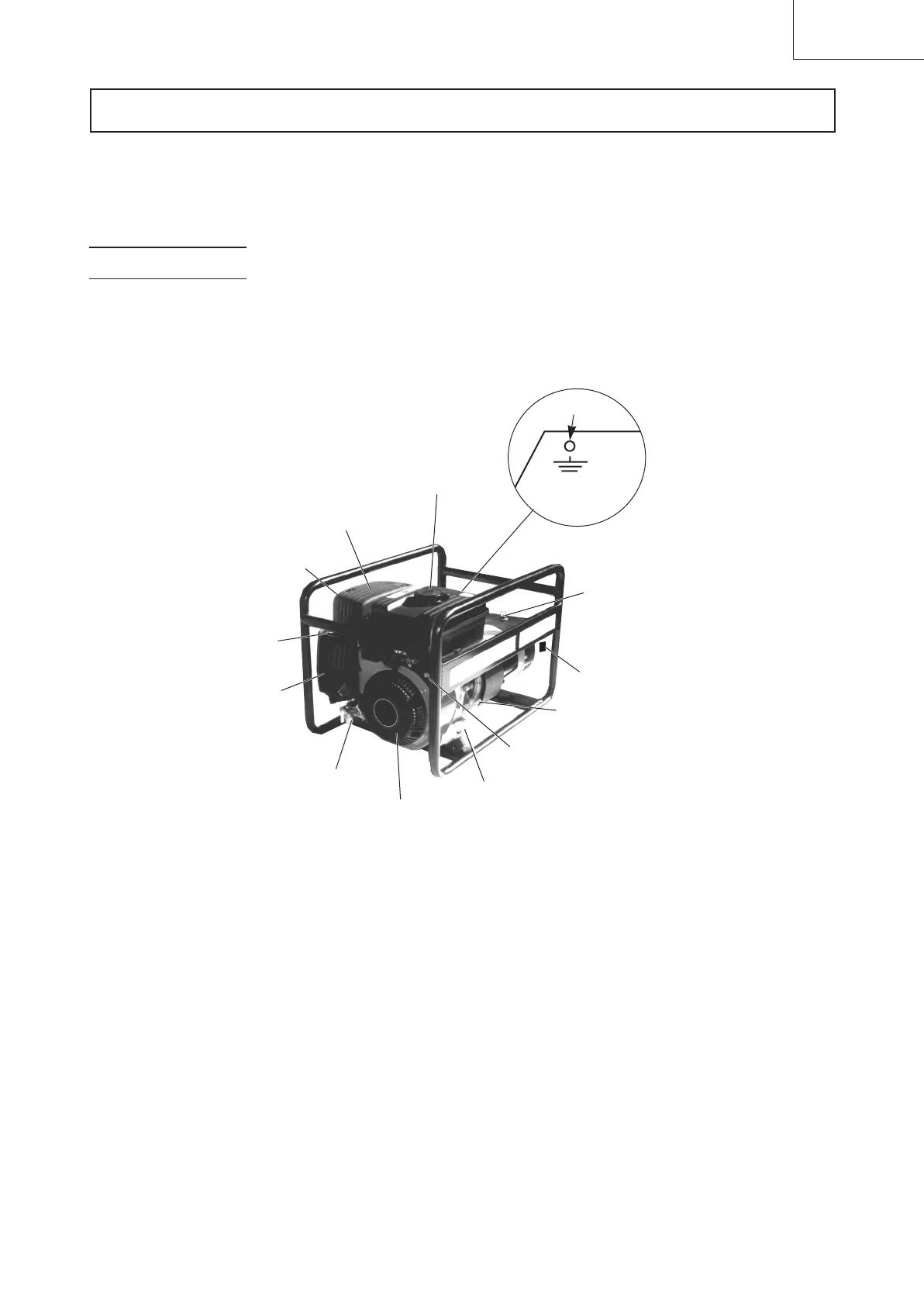

COMPONENTS
MODEL E24SB, E35SB, E42SB
Fig. 4
1 AC CIRCUIT BREAKER
2 ENGINE SWITCH
3 AC RECEPTACLE
4 OIL FILLER CAP
5 OIL DRAIN PLUG
6 FUEL COCK
7 AIR CLEANER
8 SPARK PLUG
9 CHOKE LEVER
0 RECOIL STARTER
A GROUND TERMINAL
B MUFFLER
C FUEL TANK CAP
