— 9 —
OPERATION AND MAINTENANCE
NOTE:
The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the
compressor.
Some illustrations in this Instruction Manual may show details or attachments that diff er from those on your own compressor.

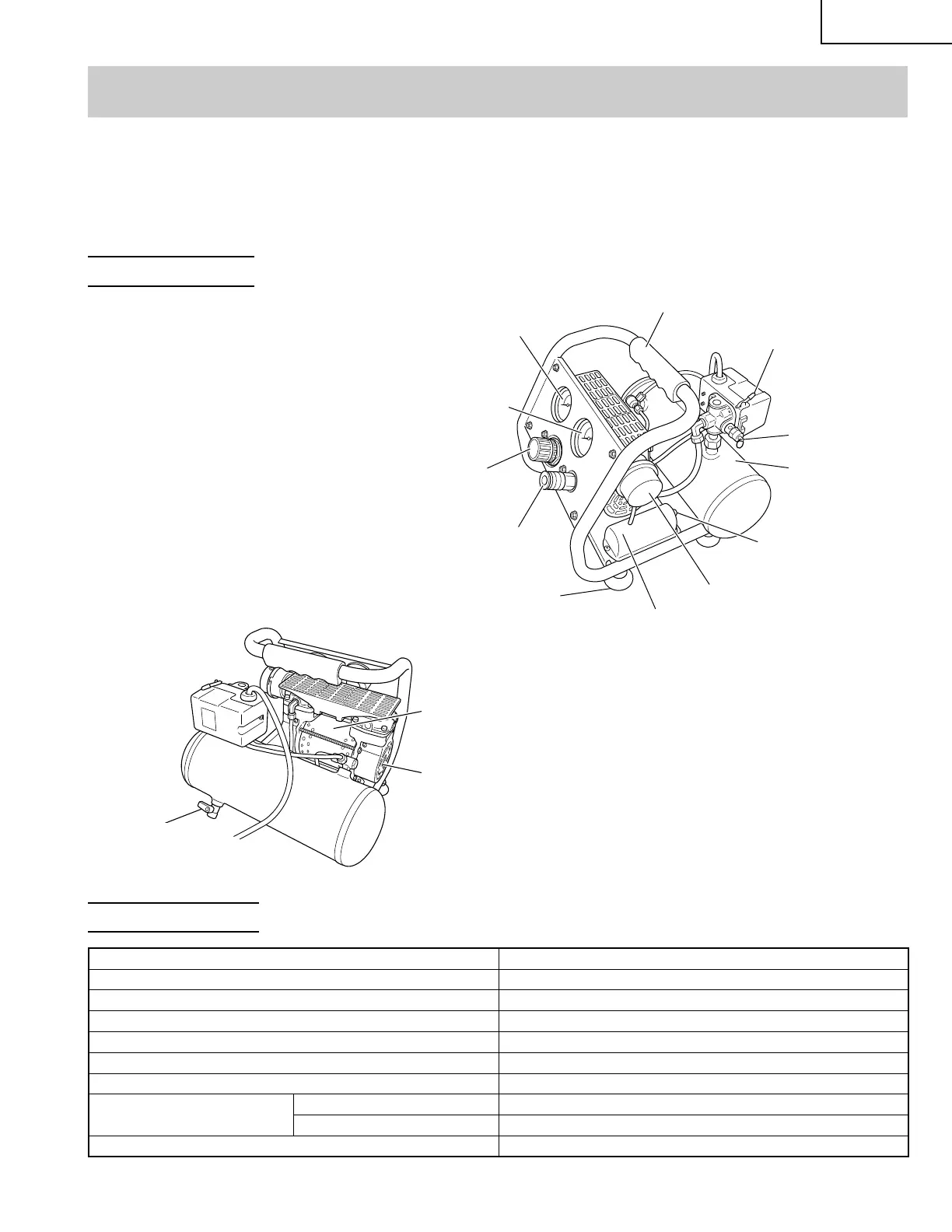

NAME OF PARTS
Handle
Tank
Rubber bumper (Foot)
Reset switch
Safety valve
Quick air connect
(air outlet)
Knob of the
pressure switch
Pressure gauge (B)
indicates the working
pressure.
Knob of the pressure
reducer
Pressure gauge (A)
indicates the pressure
in the air tank.
Protective breaker
Intake fi lter
Drain cock
Fan cover
Motor
Fig. 1
SPECIFICATIONS
Model EC 28M
Motor Single-Phase, Induction motor
Power Source Single-Phase, 120 V AC 60 Hz
Running Horse Power 0.5 HP (0.37 kW)
Current 2.8 A
Tank Capacity 1 gal. (3.8 ltr)
Maximum Pressure 125 PSI (8.6 bar)
Free Air Delivery
at 40 PSI (2.8 bar) 1.3 CFM (36.8 ltr/min)
at 90 PSI (6.2 bar) 0.8 CFM (23.2 ltr/min)
Lubrication Oil-less
000BookEC28M.indb9000BookEC28M.indb9 2017/08/1015:54:082017/08/1015:54:08
