7
English
OPERATION AND MAINTENANCE
NOTE:
The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the
compressor.
Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own compressor.

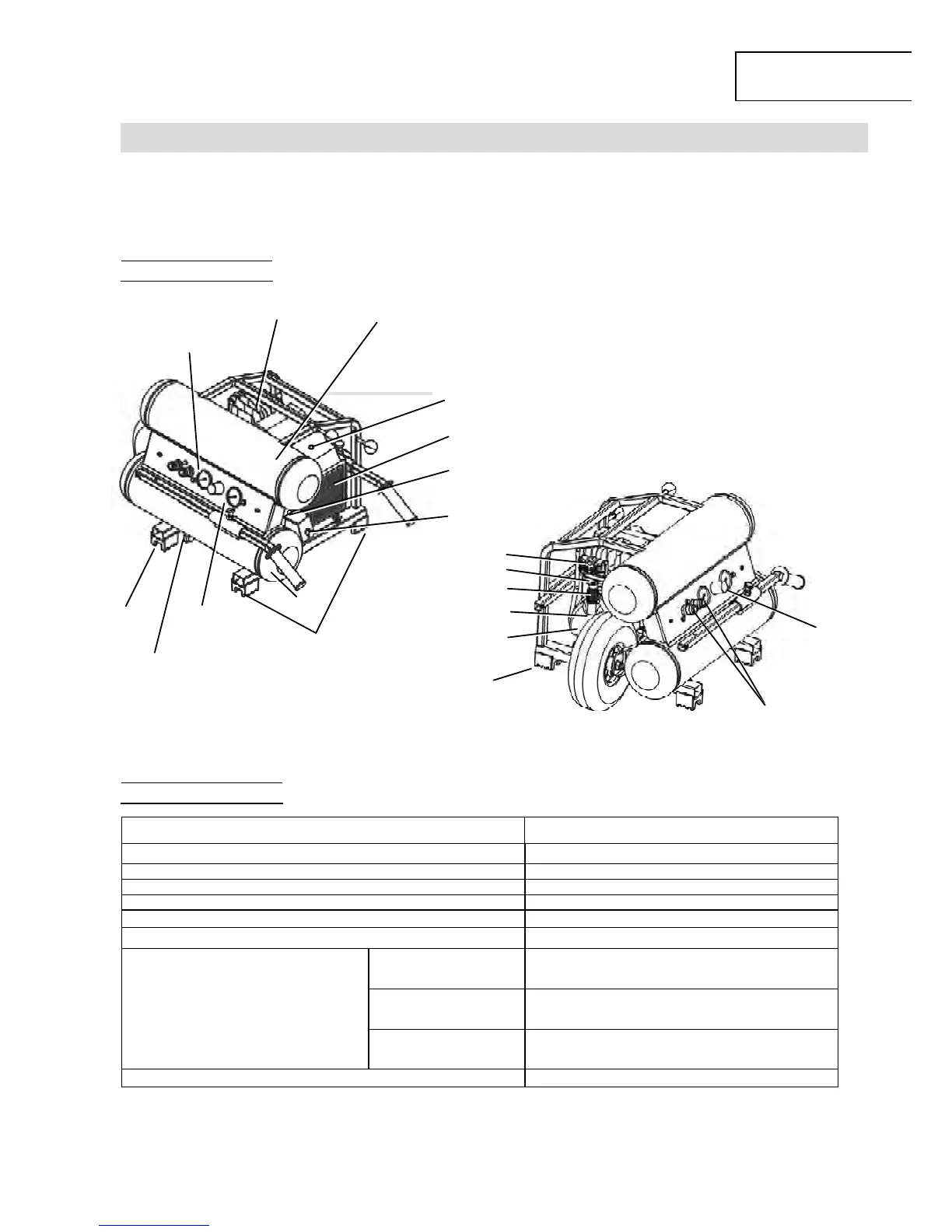

NAME OF PARTS
SPECIFICATIONS
Compressor Model EC 1110
Motor Single-phase, induction motor
Power source Single-phase, 120V AC 60 Hz
Output power 1.6 HP (1.2 kw)
Current 15.0 A
Tank Capacity 5 gal. (19 ltr)
)rab 01( ISP 541 erusserP mumixaM
at 40 PSI
(2.8 bar)
5.2 CFM
(147 ltr/min)
Free Air Delivery
at 90 PSI
(6.2 bar)
4.2 CFM
(120 ltr/min)
at 100 PSI
(6.9 bar)
3.9 CFM
(112 ltr/min)
liO noitacirbuL
Fig.1
Intake filter
C
y
linder
Di
p
stick
Casing cover
Drain ca
p
Rubber
bumper
Knob of the
pressure
reducer
Quick coupler
(air outlet)
Pressure gauge
(B) indicates the
working pressure
Head
Tank
Switch of thermal
protector
Motor
Tank
Rubber
bumper
Pressure gauge
(A) indicates the
pressure in the air
tank
Knob of the
pressure switch
Drain
cock
Rubber
bumper
Safety valve
