CP-A100 / ED-A100 / ED-A110 (A1DN)
6-2 Before Replacing The LCD/Lens Prism

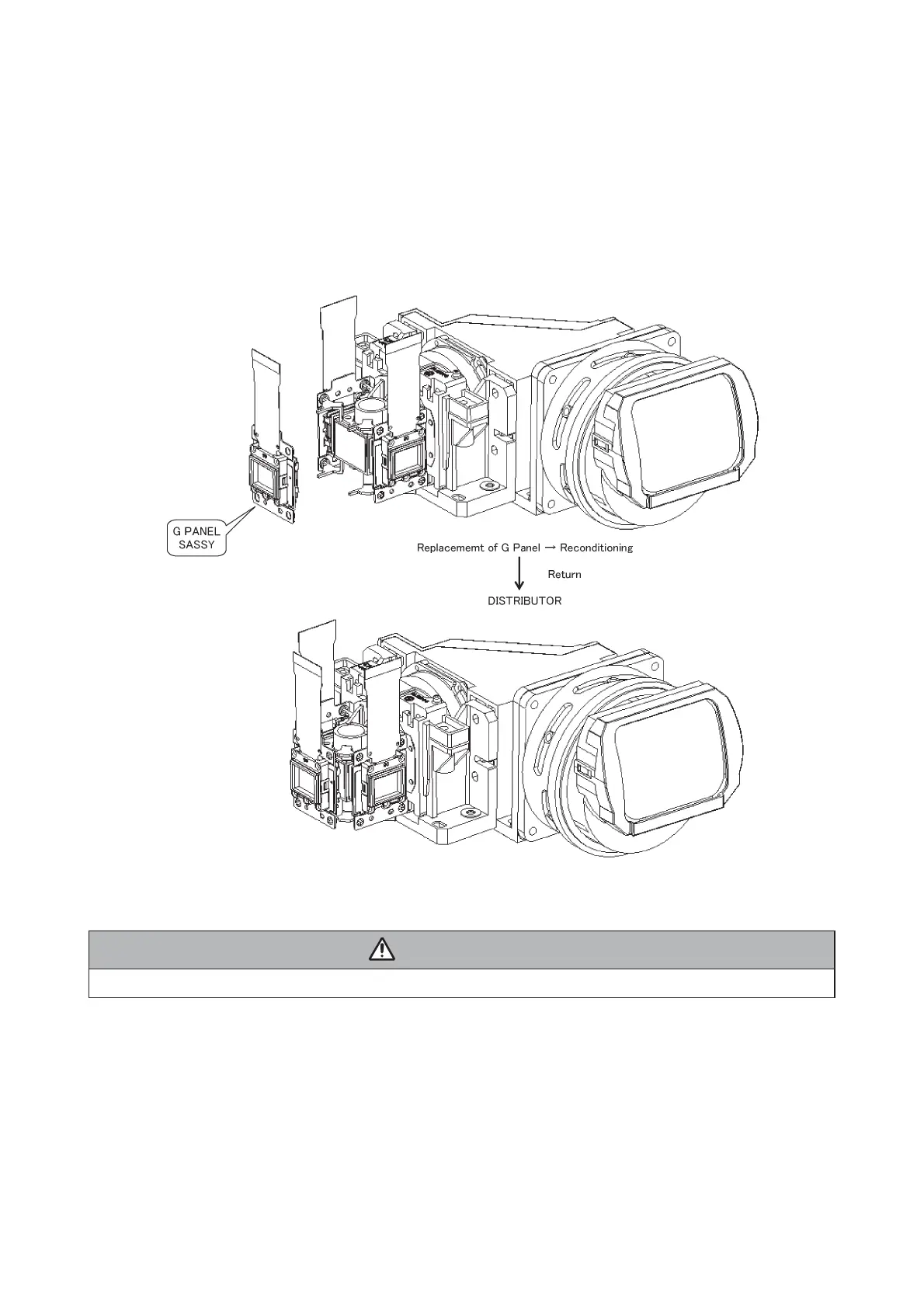

You should not replace separately the parts of the liquid crystal LCD/Lens prism because it works properly
only when used together. Therefore, regarding these parts, you can either replace part, LCD/Lens prism
assembly, or send the whole unit LCD/Lens prism assembly back to HITACHI, where we will replace the
malfunctioning part, recondition the device and send it back to you.
Reset the PANEL TIME whenever you change the LCD/LENS prism assembly. With reference to the
PANEL TIME, see the section “6-13 HIDDEN SERVICE MENU” in this manual.
1. Preparation
Please prepare cleaning tools and materials as follows and prepare relatively clean room not to work in
additional dust, while removing operation.
(1) Swab for cleaning : P#: NX32451, "Cotton stick BB-014"
(2) Air duster (Dust blower, spray can)
(3) Vacuum cleaner
2. Disassemble and setting up.
(1) Turn off the projector and unplug the power cord.
(2) Remove the lamp cover and upper case according to the disassembling diagram of chapter 8.
6-3 Cleaning up dust from panels and optical filters
WARNING
Wear sunglasses to protect your eyes when you maintain the projector with its lamp on.
Do not disassemble the unit because replacement of separate parts is not possible.
