CP-A100 / ED-A100 / ED-A110 (A1DN)
(5) Press and hold the switch S801 using an insulator during maintenance.
(6) Keep the unscrewed wires away from all of electric parts.
WARNING
Never put the heavy stress to the main board.
Otherwise, connectors will be damaged.

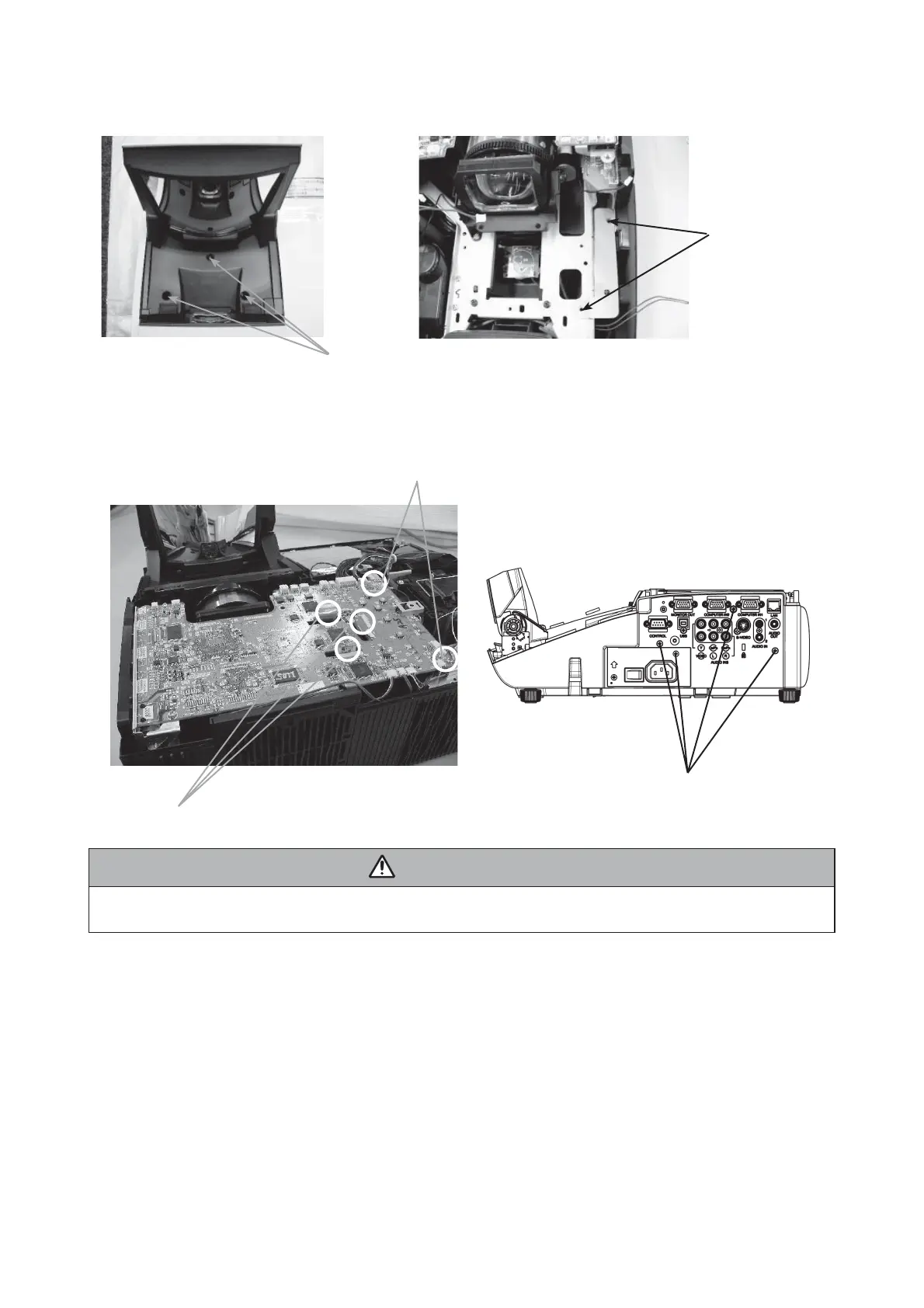

(3) Remove the mirror cover and the bracket.
Remove 2 screw,
then remove the
bracket
Remove 2 screws
Flexible cables of LCD panel
Remove 4 screws
(4) Disconnect the LCD panel flexible cables and unscrew PWB assembly MAIN to release it.
Remove 3 screws, then remove the mirror
cover. Never damage the surface of the mirror.
