25
CP-A100 / ED-A100 / ED-A110 (A1DN)

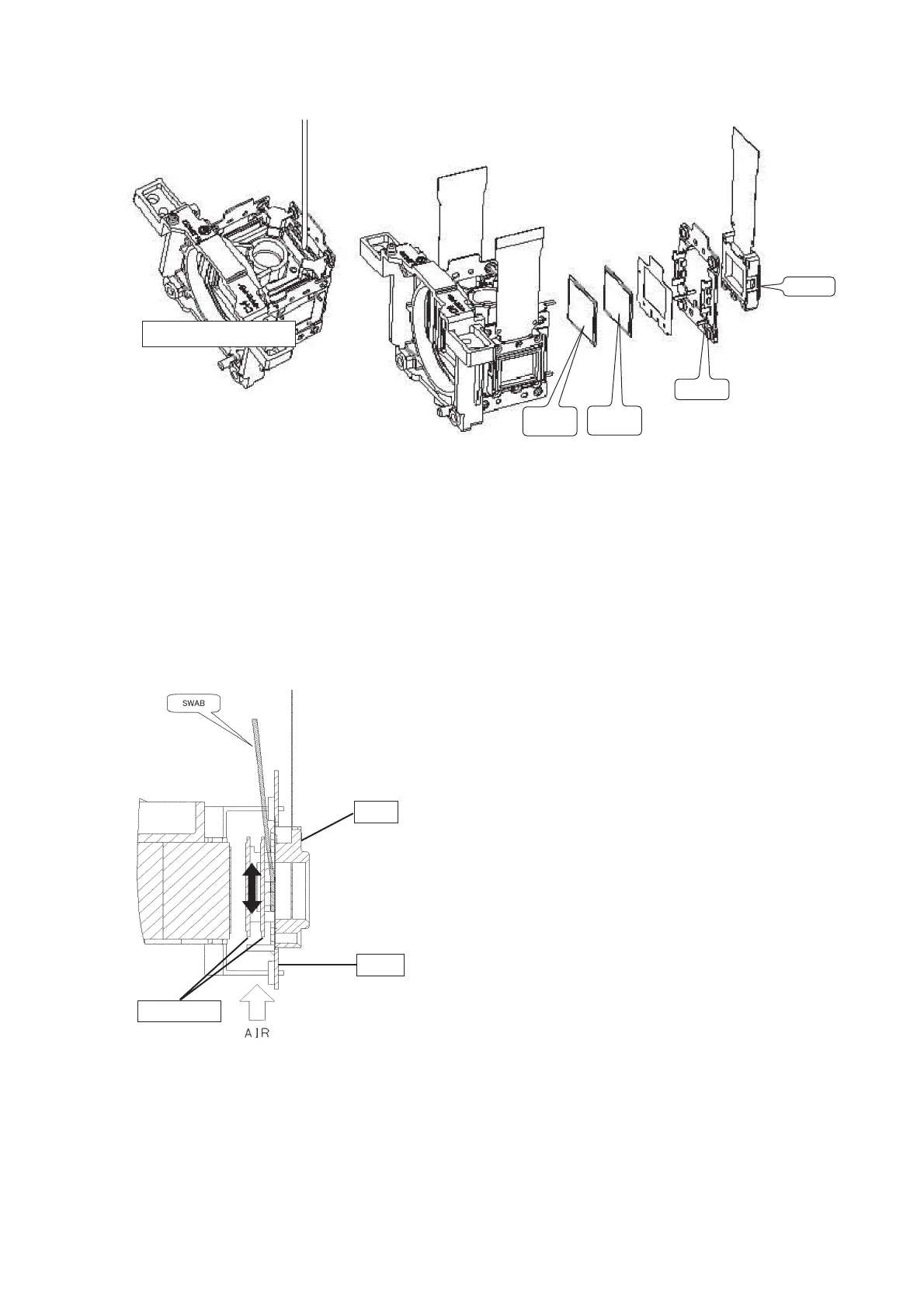

Each color part has the same construction. By using swab and air duster, you can
easily remove dust from panel and optical filter.
3. Maintenance point
4. Cleaning the panels and optical filters
(1) Turn on the set and light up the lamp.
(2) By using swab and air duster, remove the dust. Focusing dust, make sure you check the dust on screen.
• While removing the dust, separated dust will be blown
off by air cooling system.
• Please pay attention not to damage panels and optical
filters.
• Bend the top of SWAB a little if it is hard to insert the
SWAB.
Panel
Holder
Optical filter
5. Re-assembly
(1) Turn off the set and unplug the power cord.
(2) Remove an insulator from S801.
(3)
Screw down the PWB assembly MAIN and connect the LCD panel flexible cables to the PWB assembly MAIN.
(4) Re-assemble the set.
(5) While re-assembling, please clean the intake filter by using a vacuum cleaner.
Actual formation
OPTICAL
FILTER
OPTICAL
FILTER
HOLDER
PANEL
To Next Page
