Hitachi ED-A110A1DN Service Manual

4
CP-A100 / ED-A100 / ED-A110 (A1DN)

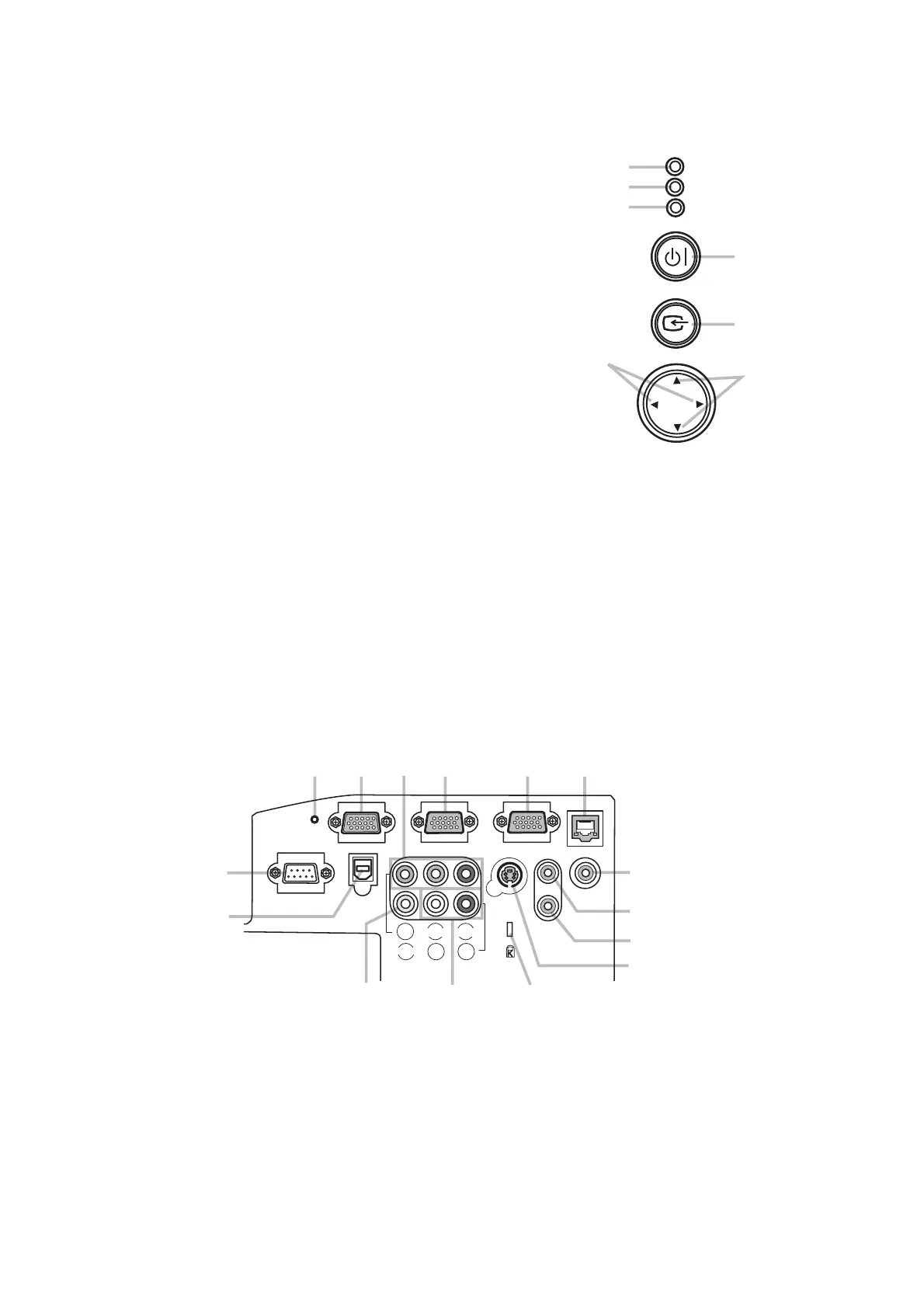

Control buttons
(1) LAMP indicator
(2) TEMP indicator
(3) POWER indicator
(4) STANDBY/ON button
(5) INPUT button
(6) FOCUS +/- buttons
when no menu is displayed, or
Cursor Ż, Ź buttons
when a menu is displayed.
(7) MENU buttons
when no menu is displayed, or
Cursor Ÿ, ź buttons
when a menu is displayed.
Ports
(1) Shutdown switch
(2) MONITOR OUT port
(3) Y, C
B/PB, CR/PR
(Component video) ports
(4) COMPUTER IN2 port
(5) COMPUTER IN1 port
(6) LAN port
(7) CONTROL port
(8) USB port
(9) VIDEO port
(10) AUDIO IN3 (L,R) ports
(11) AUDIO OUT port
(12) AUDIO IN1 port
(13) AUDIO IN2 port
(14) S-VIDEO port
(15) Security slot
(1)
(2)
(3)
(4)
(5)
(7)
(6)
LAMP
TEMP
POWER
STANDBY/ON
INPUT
MENU
FOCUS - + FOCUS
(1) (2) (3) (4) (5) (6)
(11)
(12)
(13)
(7)
(8)
(9) (10)
(14)
MONITOR OUT
COMPUTER IN2
COMPUTER IN1
CONTROL
LAN
AUDIO
OUT
S-VIDEO
YC
B
/P
B
C
R
/P
R
VIDEO L R
USB
AUDIO IN3
AUDIO IN
1
2
(15)
