CP-A100 / ED-A100 / ED-A110 (A1DN)
Notice

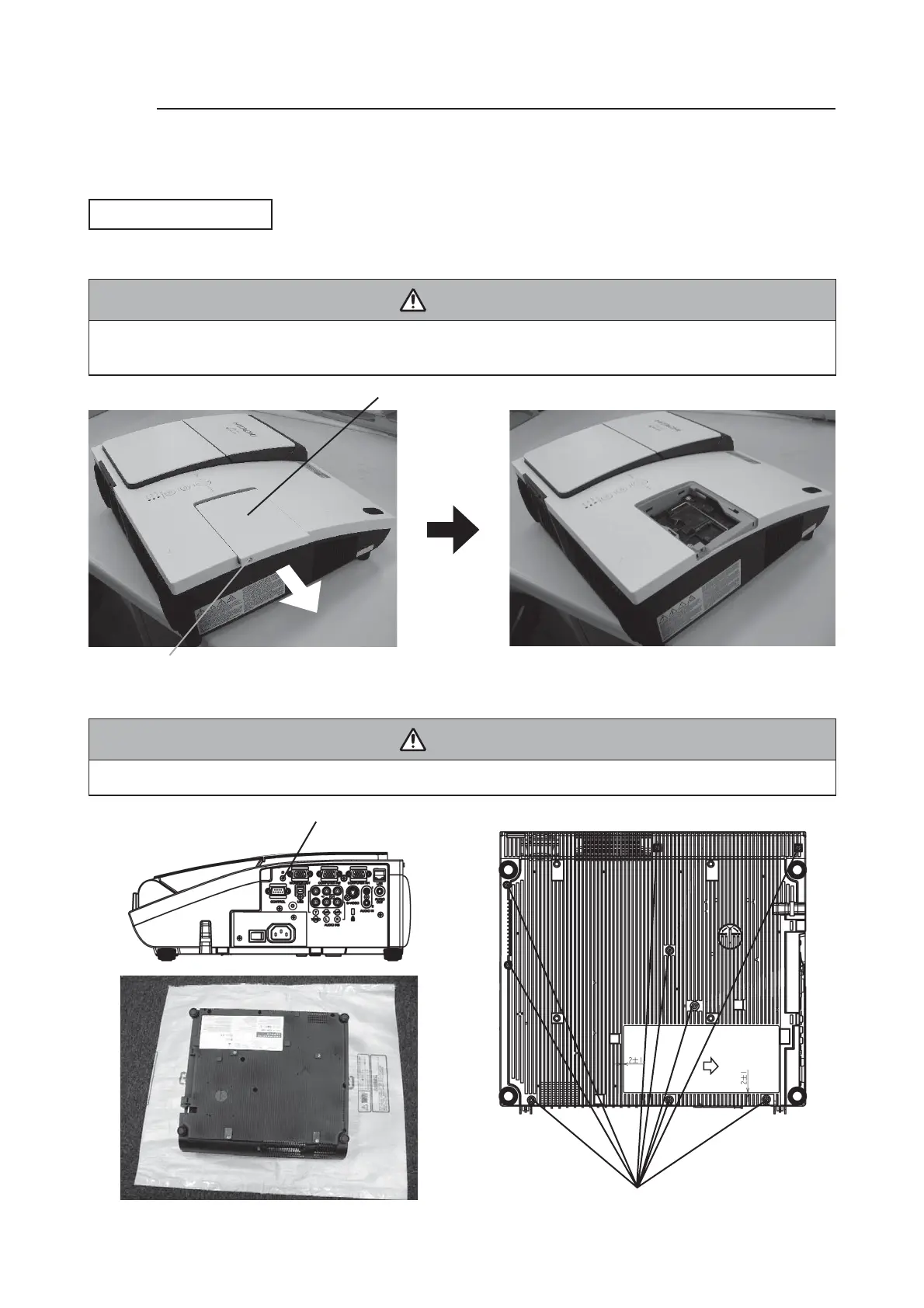

1. Detach and attach the upper case.
Follow the procedure below to detach and attach the upper case.
When disassembling
CAUTION
The lamp door must be removed before the upper case when disassembling the machine. If the upper
case is detached with the lamp door installed, the MAIN board might be damaged.
a. Remove the Lamp door.
Loosen this screw
b. Remove 9 screws on the bottom and 1 screw on the side to detach the upper case.
This screws
CAUTION
Put the projector on soft sheet when you tighten / remove the screws on the bottom.
9 screws
Lamp door
To Next Page
