64
CP-A100 / ED-A100 / ED-A110 (A1DN)

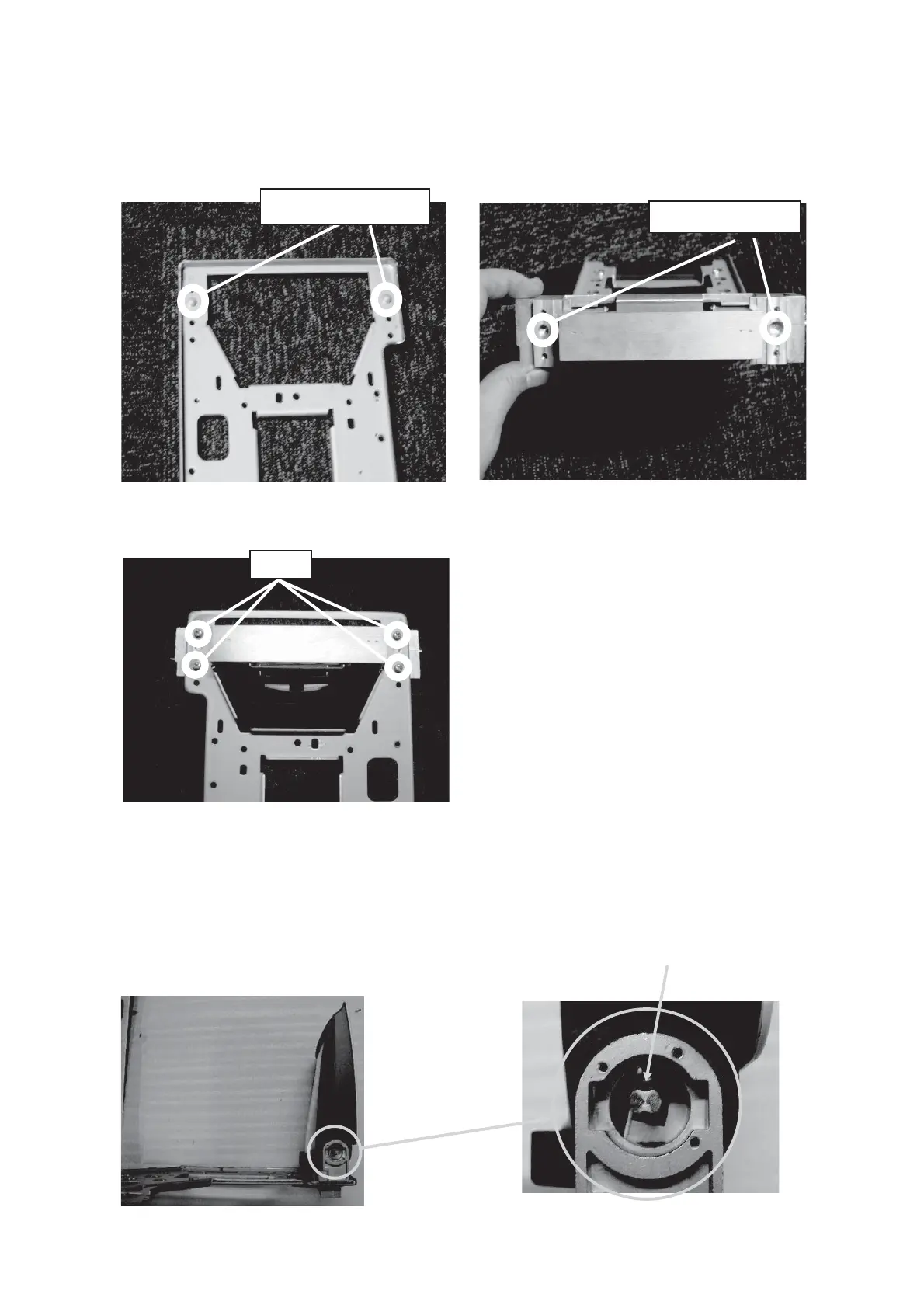

(4) Assembling Mirror Hinge Assy
Combine two ಲ parts of Engine base plate to ಳ parts of Mirror Hinge Assy.
Tighten 4 screws to attach the Mirror Hinge Assy to Engine base plate from the under.
ಲ parts of Engine base
plate
ಳ parts of mirror hinge
4 screws
Pull the mirror motor and detach from mirror.
(5) Assembling the mirror motor
Stand the mirror vertically.
Rotation axis of the mirror will be horizontal.
Axis of the mirror
To Next Page
