CP-A100 / ED-A100 / ED-A110 (A1DN)

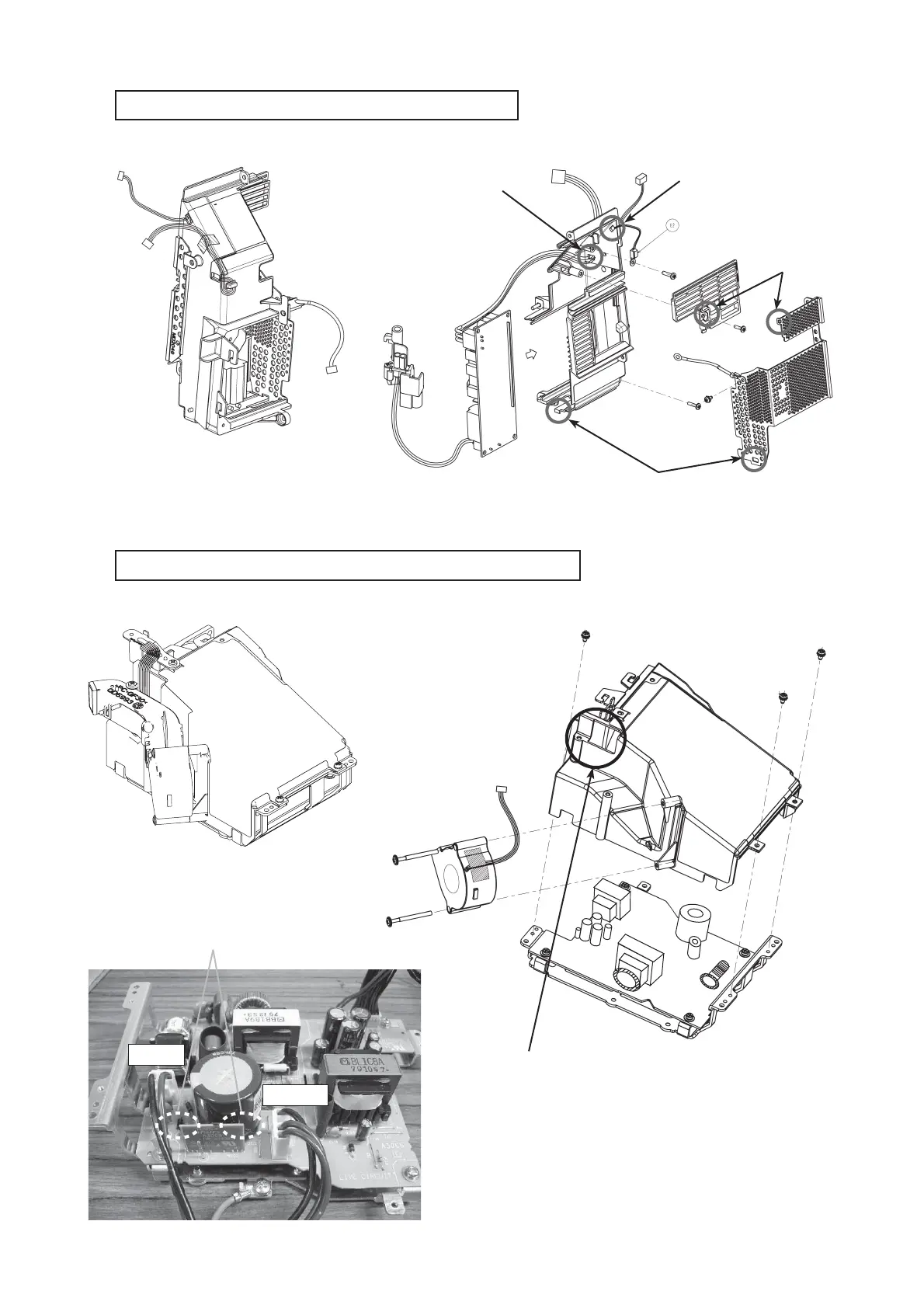

Assembling and Disassembling the ballast Unit
Assembly Disassembly
Assembling and Disassembling the power Unit (circuit)
Assembly Disassembly
5.
6.
Do not injure your finger by edge of
standing board when you connect/
disconnet CNAC and CNPFC.
CNPFC
CNAC
Pass ballast cable
Pass sensor cable
combine
combine
To main board
Pass TSW and CNPW through this hole before you
assemble the box.
