3
MONITOR OUT
COMPUTER IN2
COMPUTER IN1
CONTROL
LAN
AUDIO
OUT
S-VIDEO
Y CB/PB CR/PR
VIDEO L R
USB
AUDIO IN3
AUDIO IN
1
2
A
COMPUTER IN1,
B
COMPUTER IN2,
C
MONITOR OUT
D-sub 15pin mini shrink jack
9LGHRVLJQDO5*%VHSDUDWH$QDORJ9SSȍ
terminated (positive)
• H/V. sync. signal: TTL level (positive/negative)
• Composite sync. signal: TTL level
Pin Signal Pin Signal
1
Video Red 10 Ground
2 Video Green 11 (No connection)
3 Video Blue
12
A
: SDA (DDC data)
B
,
C
: (No connection)
4 (No connection)
5 Ground 13 H. sync / Composite sync.
6 Ground Red 14 V. sync.
7 Ground Green
15
A
: SCL (DDC clock)
B
,
C
: (No connection)
8 Ground Blue
9 (No connection) - -

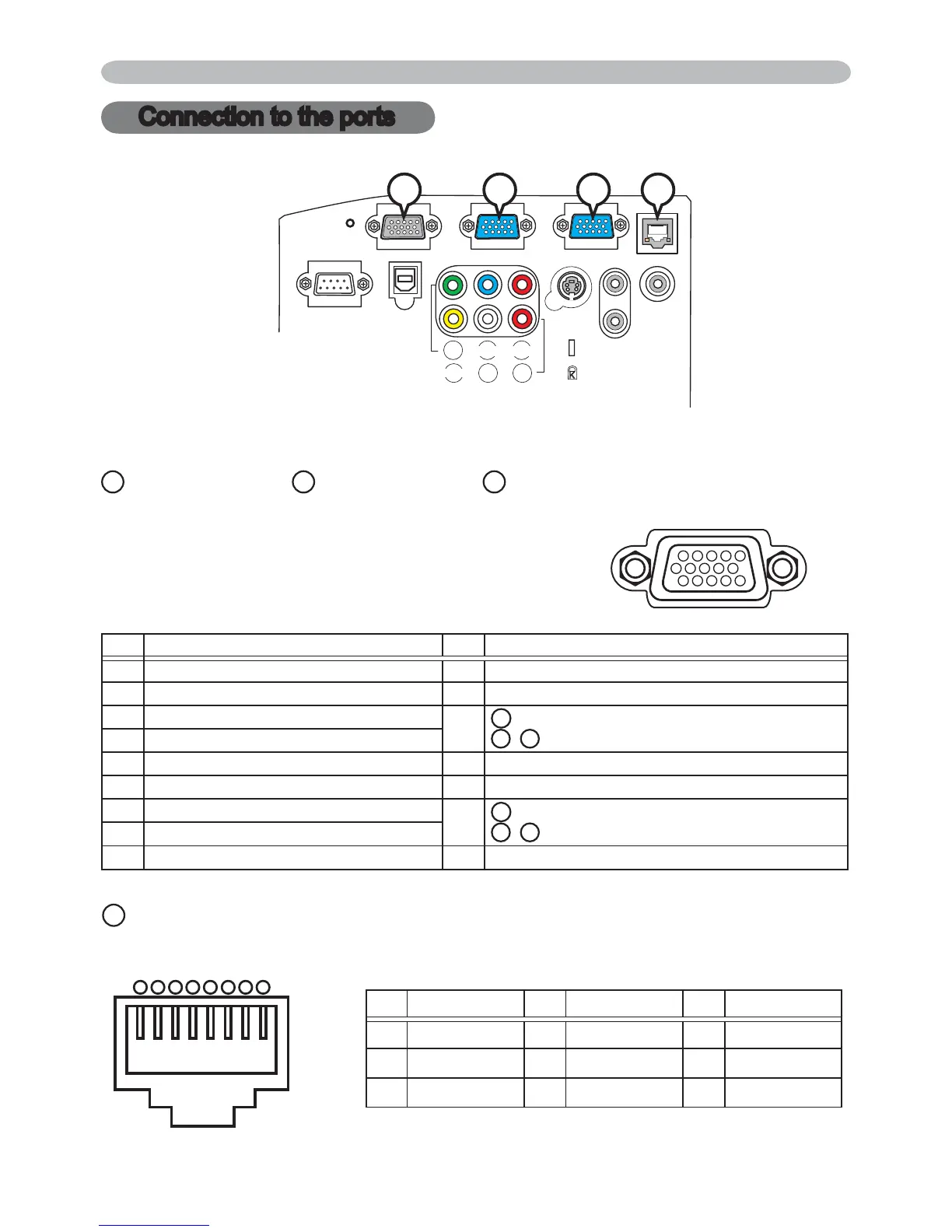

Connection to the ports


 
Connection to the ports
B DAC
D
LAN
RJ-45 jack
Pin Signal Pin Signal Pin Signal
1 TX + 4 - 7 -
2 TX - 5 - 8 -
3 RX + 6 RX - - -
87654
3
21
