4
2. Using a large diameter drill bit
The larger the drill bit diameter, the larger the reactive
force on your arm. Be careful not to lose control of
the drill because of this reactive force. To maintain
firm control, establish a good foothold, hold the drill
tightly with both hands, and ensure that the drill is
vertical to the material being drilled.
3. When drilling completely through the material
When the drill bit bores completely through the
material, careless handling often results in a broken,
drill bit or damage to the drill body itself due to the
sudden movement of the drill. Always be alert and
ready to release pushing force when drilling through
the material.
4. Switch operation
䡬 When the trigger is depressed, the tool rotates. When
the trigger is released, the tool stops.
䡬 The rotational speed of the drill can be controlled by
varying the amount that the trigger switch is pulled.
Speed is low when the trigger switch is pulled slightly
and increases as the trigger switch is pulled more.
䡬 The desired rotation speed can be pre-selected with
the speed control dial.

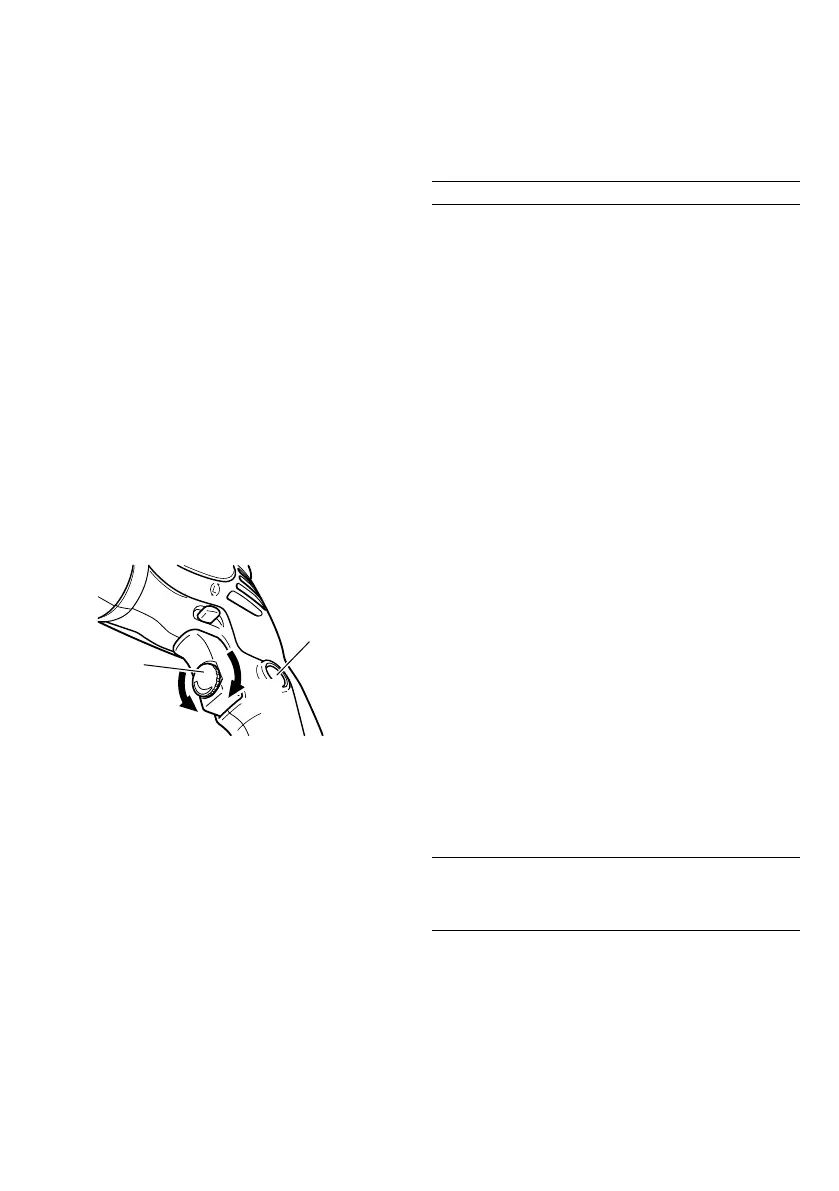

Turn the speed control dial clockwise for higher speed
and counterclockwise for lower speed (Fig. 6).
䡬 Pulling the trigger and pushing the stopper, it keeps
the switched-on condition which is convenient for
continuous running. When switching off, the stopper
can be disconnected by pulling the trigger again.
Fig. 6
CAUTION
Drill at a maximum rotation speed when drilling
wooden materials.
5. When driving wood screws
(1) Selecting a suitable driver bit
Employ plus-head screws, if possible, since the driver
bit easily slips off the heads of minus-head screws.
(2) Driving in wood screws
䡬 Prior to driving in wood screws, make holes suitable
for them on the wooden board. Apply the bit to the
screw head grooves and gently drive the screws into
the holes.
䡬 After rotating the screwdriver at low speed for a
while until a wood screw is partly driven into the
wood, squeeze the trigger more strongly to obtain
optimum driving force.
CAUTION
䡬 Exercise care in preparing a hole suitable for the
wood screws taking the hardness of the wood into
consideration.
Should the hole be excessively small or shallow,
requiring much power to drive the screw into it, the
thread of the wood screw may sometimes be
damaged.
䡬 Do not drive machine screws.
MAINTENANCE AND INSPECTION
1. Inspection the drill bit
Continued use of a worn and/or damaged drill bit will
result in reduced drilling efficiency and may seriously
overload the drill motor. Inspect the drill bit often and
replace it with a new bit as necessary.
2. Inspecting the mounting screws
Regularly inspect all mounting screws and ensure
that they are properly tightened. Should any of the
screws be loose, retighten them immediately. Failure
to do so could result in serious hazard.
3. Maintenance of the motor
The motor unit winding is the very “heart” of the
power tool. Exercise due care to ensure the winding
does not become damaged and/or wet with oil or
water.
4. Servicing
Consult an authorized Service Center in the event of
power tool failure.
5. Service parts list
A: Item No.
B: Code No.
C: No. Used
D: Remarks
CAUTION
Repair, modification and inspection of Hitachi Power
Tools must be carried out by a Hitachi Authorized
Service Center.
This Parts List will be helpful if presented with the
tool to the Hitachi Authorized Service Center when
requesting repair or other maintenance.
In the operation and maintenance of power tools, the
safety regulations and standards prescribed in each
country must be observed.
MODIFICATION
Hitachi Power Tools are constantly being improved
and modified to incorporate the latest technological
advancements.
Accordingly, some parts (i.e. code numbers and/or
design) may be changed without prior notice.
NOTE
Due to HITACHI’s continuing program of research and
development, the specifications herein are subject to
change without prior notice.
Speed
control dial
Stopper
Low speed
High
speed
01Eng_FDV16VB2_Eng 4/20/09, 18:064
