− 4 −

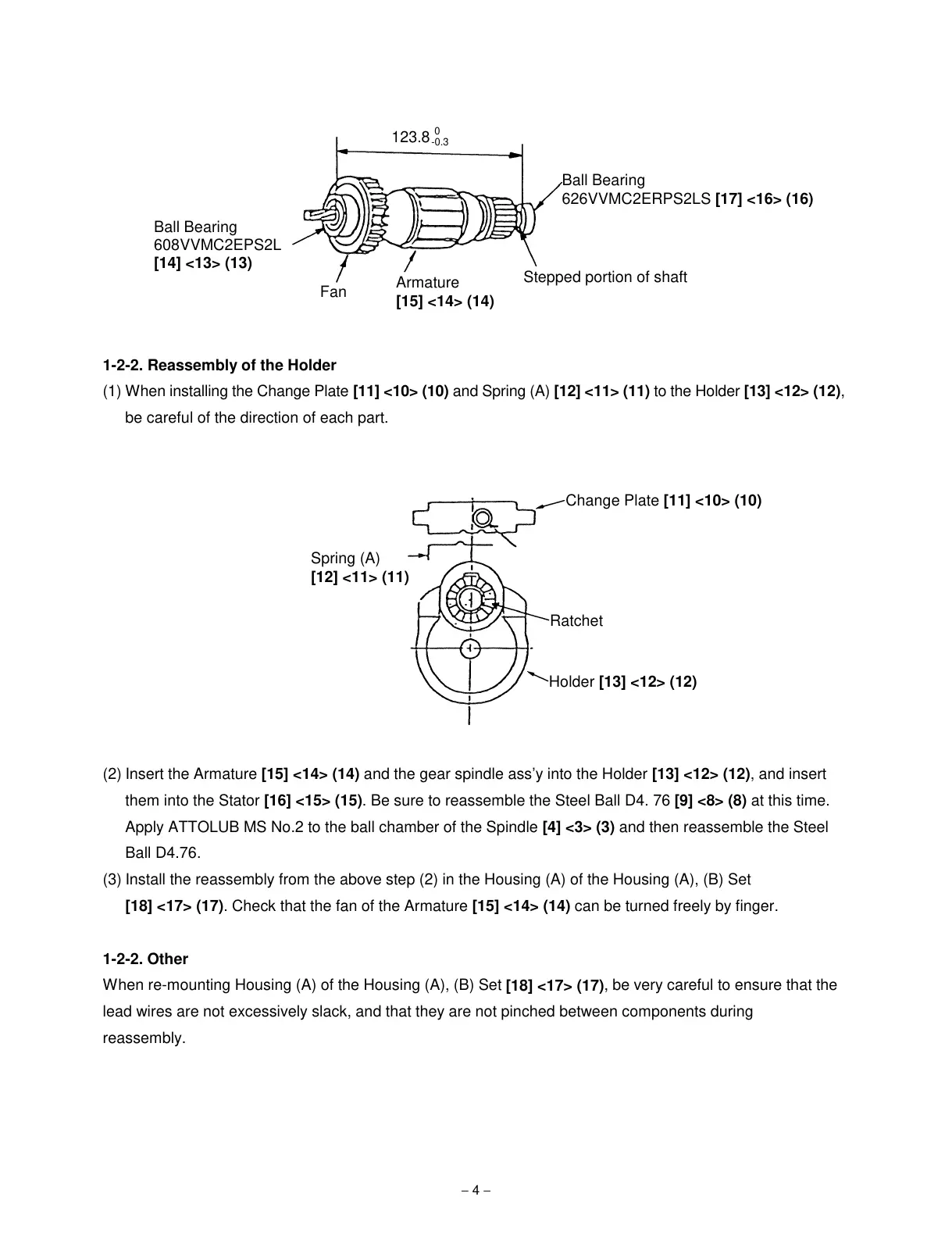

1-2-2. Reassembly of the Holder
(1) When installing the Change Plate
[11] <10> (10)
and Spring (A)
[12] <11> (11)
to the Holder
[13] <12> (12)
,
be careful of the direction of each part.
(2) Insert the Armature
[15] <14> (14)
and the gear spindle ass’y into the Holder
[13] <12> (12)
, and insert
them into the Stator
[16] <15> (15)
. Be sure to reassemble the Steel Ball D4. 76
[9] <8> (8)
at this time.
Apply ATTOLUB MS No.2 to the ball chamber of the Spindle
[4] <3> (3)
and then reassemble the Steel
Ball D4.76.
(3) Install the reassembly from the above step (2) in the Housing (A) of the Housing (A), (B) Set
[18] <17> (17)
. Check that the fan of the Armature
[15] <14> (14)
can be turned freely by finger.
1-2-2. Other
When re-mounting Housing (A) of the Housing (A), (B) Set
[18] <17> (17)
, be very careful to ensure that the
lead wires are not excessively slack, and that they are not pinched between components during
reassembly.
Ball Bearing
608VVMC2EPS2L
[14] <13> (13)
Fan
Armature
[15] <14> (14)
Stepped portion of shaft
Ball Bearing
626VVMC2ERPS2LS
[17] <16> (16)
123.8
-0.3
0
Change Plate
[11] <10> (10)
Spring (A)
[12] <11> (11)
Ratchet
Holder
[13] <12> (12)
To Next Page
