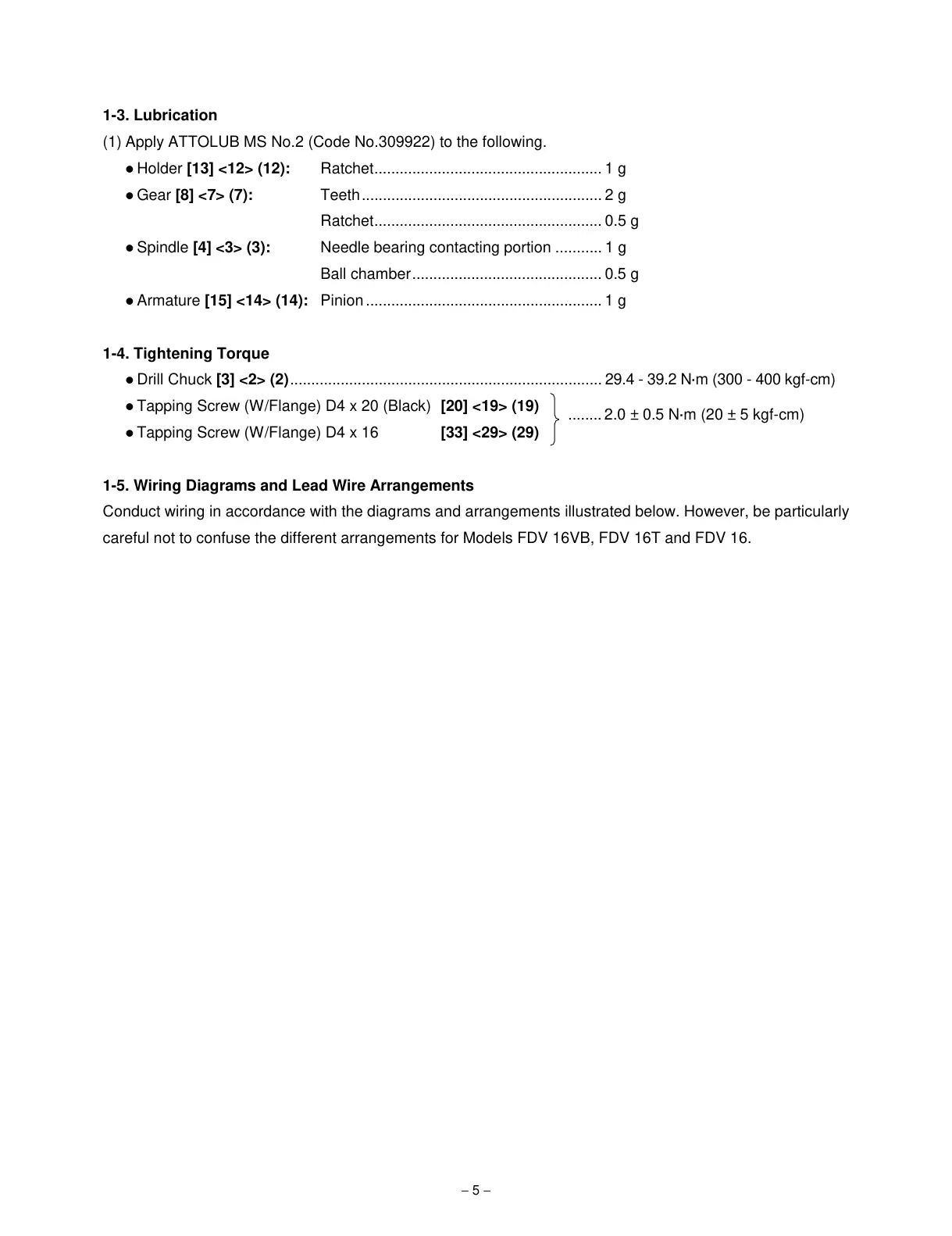

1-3. Lubrication

(1) Apply ATTOLUB MS No.2 (Code No.309922) to the following.

Holder

[13] <12> (12):

Ratchet...................................................... 1 g

Gear

[8] <7> (7):

Teeth......................................................... 2 g

Ratchet...................................................... 0.5 g

Spindle

[4] <3> (3):

Needle bearing contacting portion ........... 1 g

Ball chamber............................................. 0.5 g

Armature

[15] <14> (14):

Pinion........................................................ 1 g

1-4. Tightening Torque

Drill Chuck

[3] <2> (2)

.......................................................................... 29.4 - 39.2 N

m (300 - 400 kgf-cm)

Tapping Screw (W/Flange) D4 x 20 (Black)

[20] <19> (19)

Tapping Screw (W/Flange) D4 x 16

[33] <29> (29)

1-5. Wiring Diagrams and Lead Wire Arrangements

Conduct wiring in accordance with the diagrams and arrangements illustrated below. However, be particularly

careful not to confuse the different arrangements for Models FDV 16VB, FDV 16T and FDV 16.

........2.0 ± 0.5 N

m (20 ± 5 kgf-cm)
