-3-
Steel ball
Front cover ass’y
Cylinder case
Cylinder Case Ass’y [5]

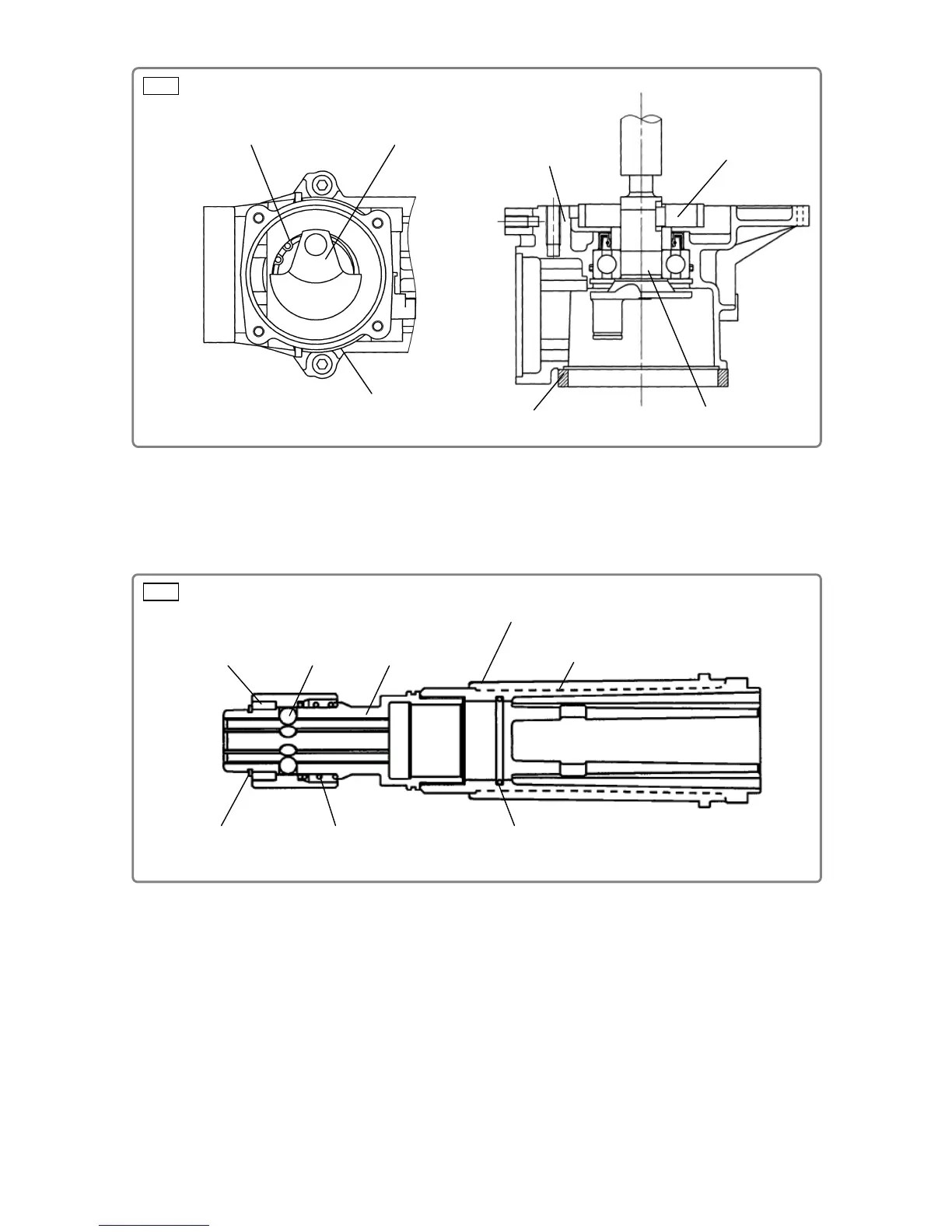

2. Disassembly of the tool retainer
Use a snap ring remover to remove the retaining ring. The ring, slide grip, spring and six steel balls can
then be removed from the Cylinder Case Ass’y [5] as shown in Fig. 3 below.
Crank Shaft [31]
Crank Case [44]
Retaining Ring for D40 Hole [32]
Crank Case [44]
Crank Shaft [31]
First Gear [45]
Support
Ring
Spring
Retaining ring
O-ring
Fig. 2
Fig. 3
