Hitachi H 41SD - Internal Wiring and Tests; Insulation Tests; No-Load Current Value

-7-

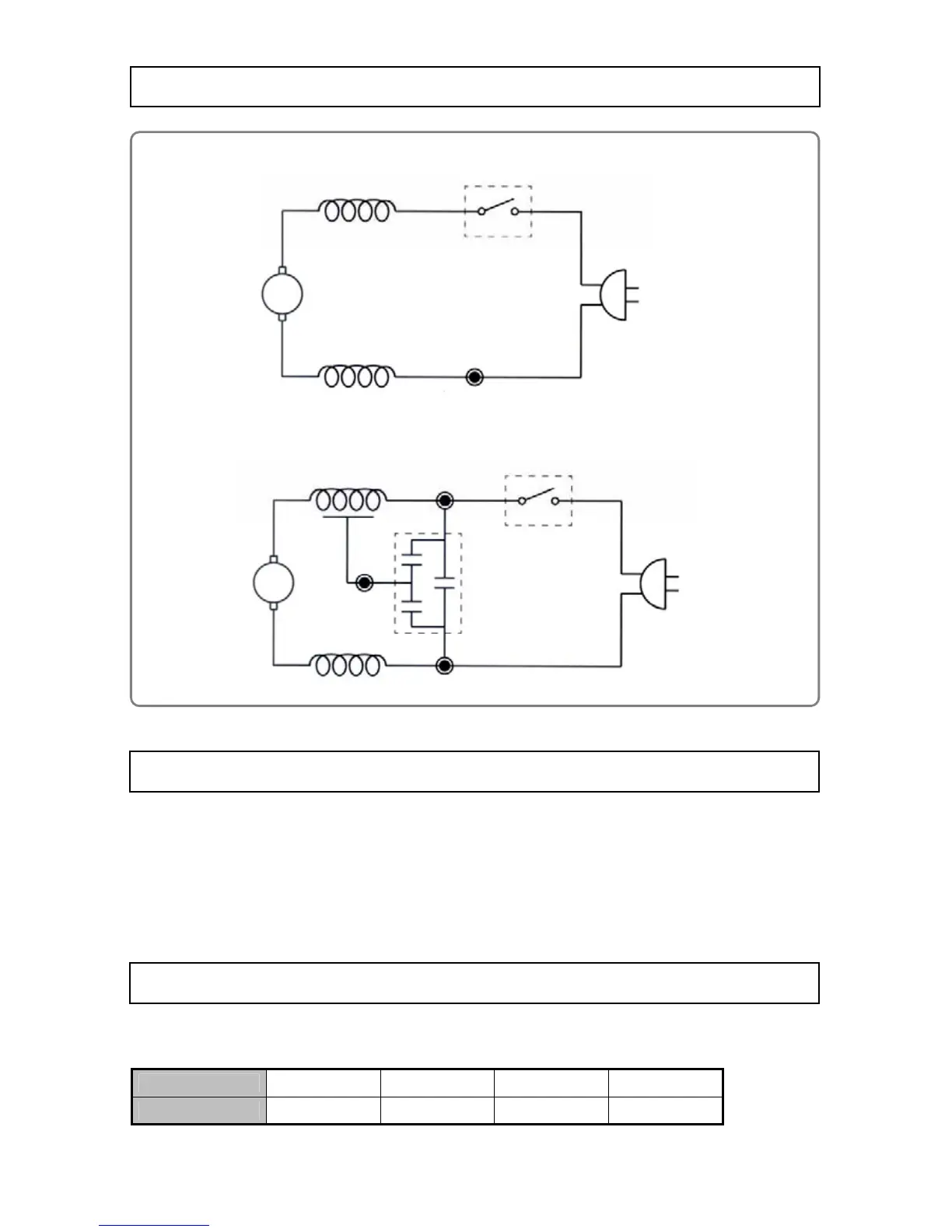

(1) Wiring diagram for products without a noise suppressor
(2) Wiring diagram for products with a noise suppressor
Upon the completion of disassembly and repair, measure the insulation resistance and dielectric strength.
Insulation resistance: 7 Mȍ or more using a 500 VDC megohm tester
Dielectric strength: 4,000 VAC/minute, with no abnormalities (220 to 240 V)
(110 V for U.K. products)
2,500 VAC/minute, with no abnormalities (110 to 127 V)
(Except for U.K. products)
After no-load operation for 30 minutes, the no-load current values should be as follows:
Voltage (V) 110 220 230 240
Current (A) max.
4.2 2.1 2.0 1.9
Switch
Stator ass’y
Plug
Armature ass’y
Connector or
p
illa
r
terminal
A
Noise suppressor
Switch
Stator ass’y
Plug
Armature ass’y
Pilla
r
terminal
A
Connecto
r
Connecto
r
Internal wirin
g
Insulation tests
No-load current value
