- 16 -
(
7
)

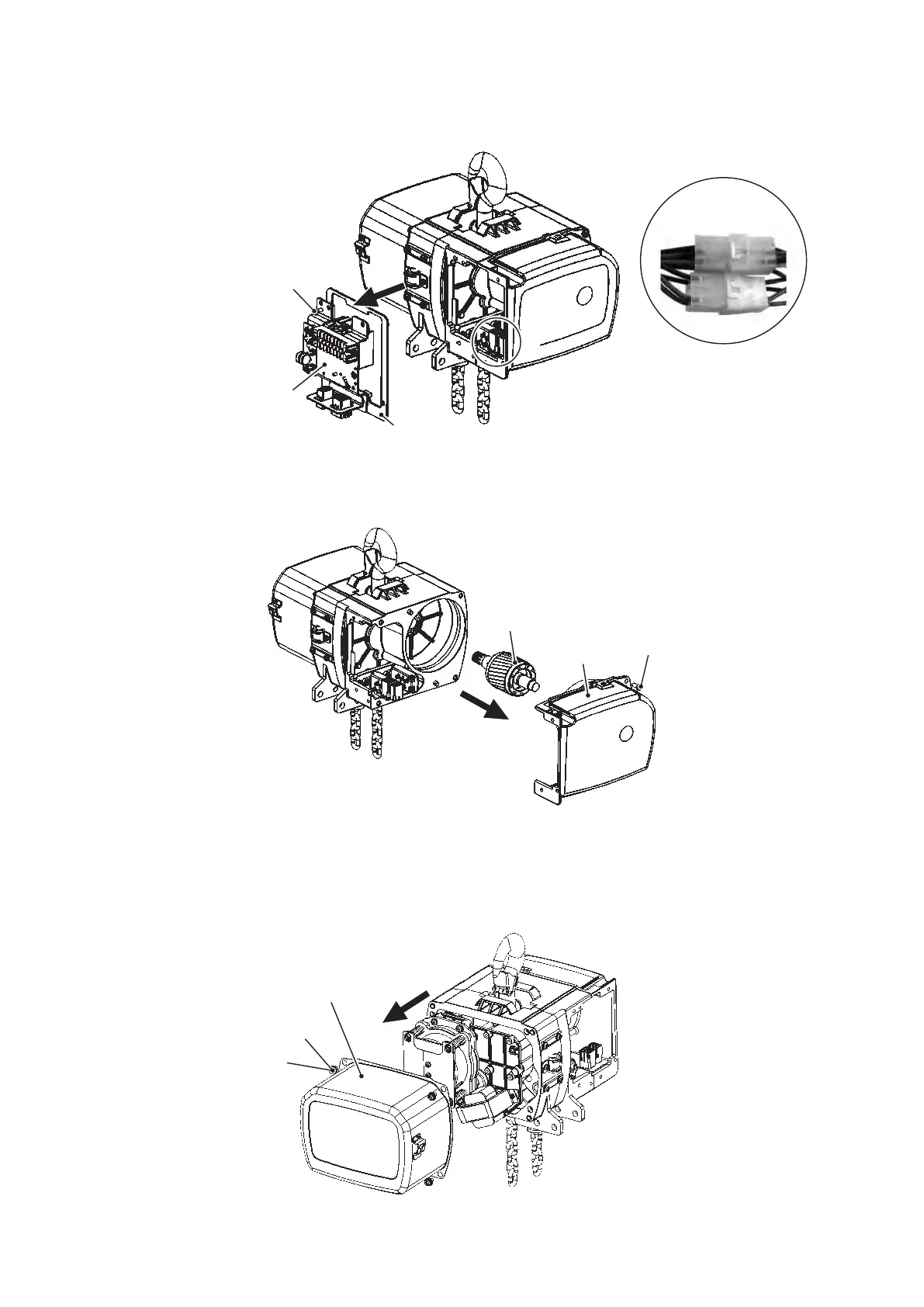

Remove 4 screws (M6×16) and remove the housing and the rotor.
2. How to disassemble the brake
(
1
) Disassemble by the same procedure mentioned up to step (4) of ‘1. Disassembly of the housing and the
rotor’.
(
2
) Remove 4 screws (M6×12) and 4 cover washers, only the 4 M6×16 screws in case of LN-type, and
remove the cover B.
Switch stand
packing
Screw M5×12
Rotor
Housing
Screw M6×16
6P, 9P
connectors
P
(
4
)
(
6
)
(
2
)
Cover B
Cover washer (L, LS)
screw M6×16 (LN)
screw M6×16 (L, LS)
(5) Remove the one M5×12 screw, then remove the switch stand and the packing.
(6) Detach the 6P connector and the 9P connector from the inside (part P) of the main body.
