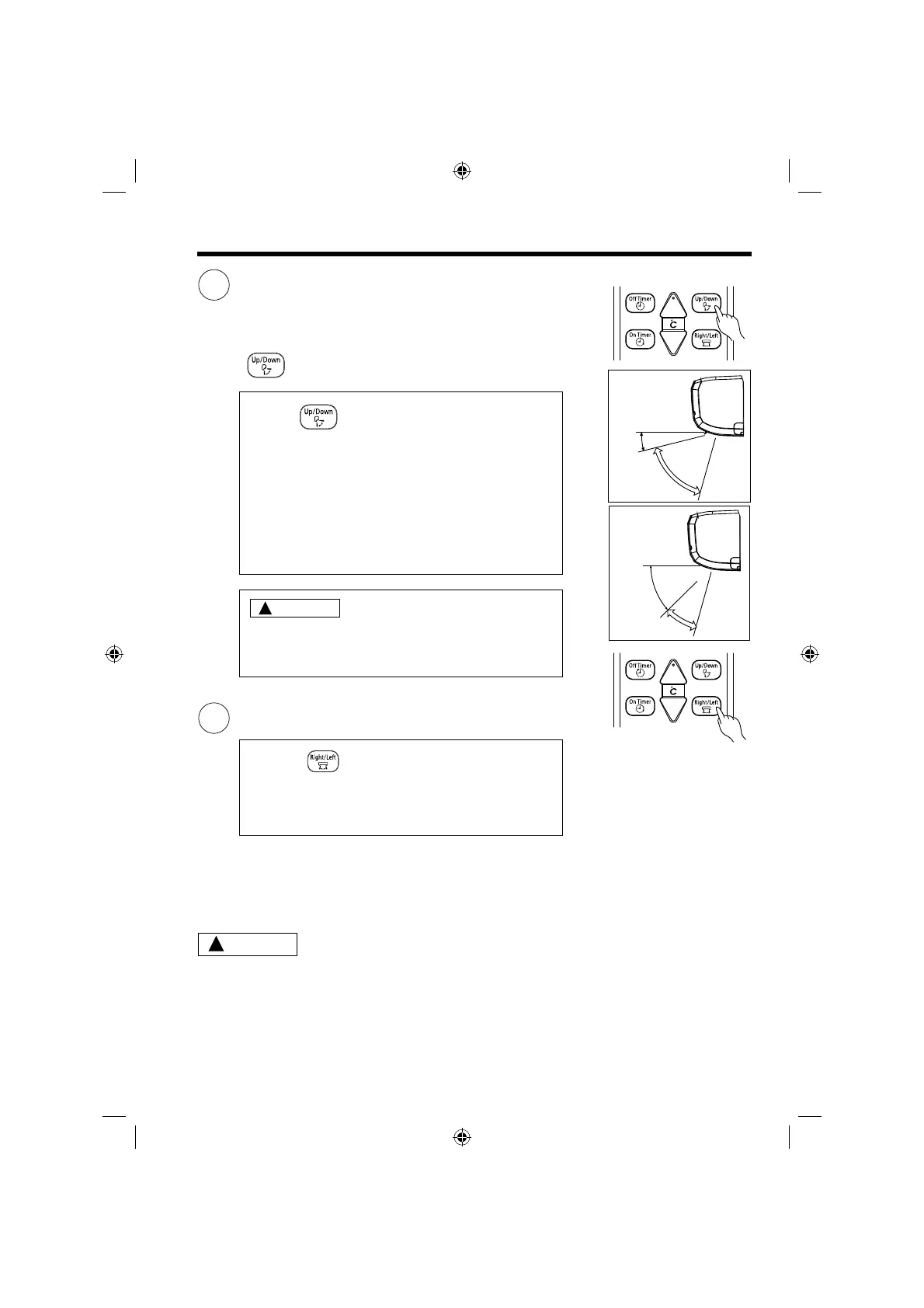

ADJUSTING THE AIR DEFLECTORS
Do not insert a fi nger, a rod or other objects into the air outlet or inlet as the fan is rotating at a high speed,
it will cause injury. Before any cleaning or adjusting the defl ectors, be sure to switch OFF the operation.
WARNING
!
1
2
Adjustment of the conditioned air to the left and right.
● If the “ (AUTO SWING (HORIZONTAL))” button is
pressed once, the horizontal air defl ector swings up and
down. If the button is pressed again, the defl ector stops
in its current position. Several seconds (about 6 seconds)
may be required before the defl ector starts to move.
● Use the horizontal air defl ector within the adjusting range
shown on the right.
● When the operation is stopped, the horizontal air defl ector
moves and stops at the position where the air outlet closes.
!
CAUTION
● In “Cooling” operation, do not keep the horizontal air
defl ector swinging for a long time. Some dew may form
on the horizontal air defl ector and dew may drop.
● If the “ (AUTO SWING (VERTICAL))” button is
pressed once, the defl ectors will start to swing right and
left. If the button is pressed again, the defl ector will stop
in the current position. Several seconds (about 6 seconds)
may be required before the defl ector starts to move.
Adjustment of the conditioned air in the upward and downward
directions.
The horizontal air defl ector is automatically set to the proper angle
suitable for each operation. The defl ector can be swung up and
down continuously and also set to the desired angle using the
“
(AUTO SWING (HORIZONTAL))” button.
When cooling
dehumidifying
Horizontal
about 15°
about 60°
When heating
about 45°
about 30°
Horizontal
