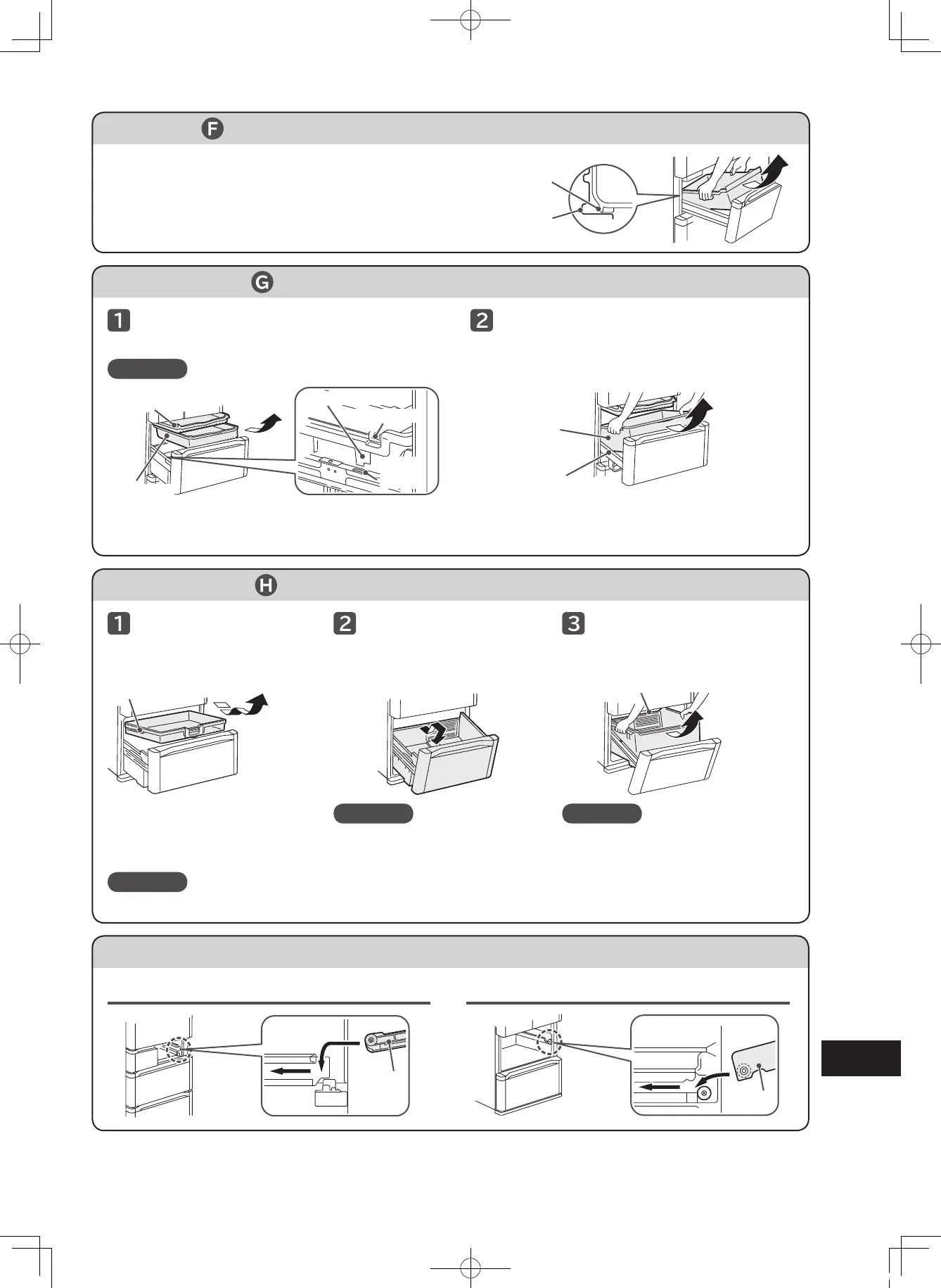

Slide case and lower freezer case
(Lower Freezer)
When installing it, insert the pins on the left/right of the Lower freezer case into the square holes on the frame to install it.
Moreover, hitch the pins on the left/right of the Slide case to the outside of the Lower freezer case.
Draw the door fully, and draw the Slimline slide
case and the Slide case respectively.
Lift up the Lower freezer case.
● Do not remove the Slimline slide case.
Caution
Upper Case, Lower Case
(Vegetable Compartment)
Draw the door fully and
pull up the Upper Case as
shown in the figure.
Lift up the Lower Case
toward you.
Lift up both sides of the
door toward you and draw
it slowly, and then place it
on the floor.
● Do not remove the door completely. ● Be careful. Water may drip from the
backside of the lower case.
Caution Caution
● The glass partition can
’
t be removed.
● Do not remove the moisture unit and photocatalyst from the lower case.
Caution
Ice Case
(Ice Compartment)
・
Upper Freezer case
(Upper Freezer)
How to attach the slide door
(
Ice Compartment/Upper Freezer/Lower Freezer/Vegetable Compartment
)
Draw the door fully and lift up the case
towards you.
Put the case bottom on the frame and set the case.
Ice Compartment/Upper Freezer Lower Freezer/Vegetable Compartment
Underside of the case
Frame
Slimline slide case
Slide case
Pin (right and left)
Fork (right and left)
Rectangle
hole in the
frame
Frame
Lower freezer case
Frame
Frame
How to Remove/Attach Parts
Upper Case
Lower Case
To Next Page
