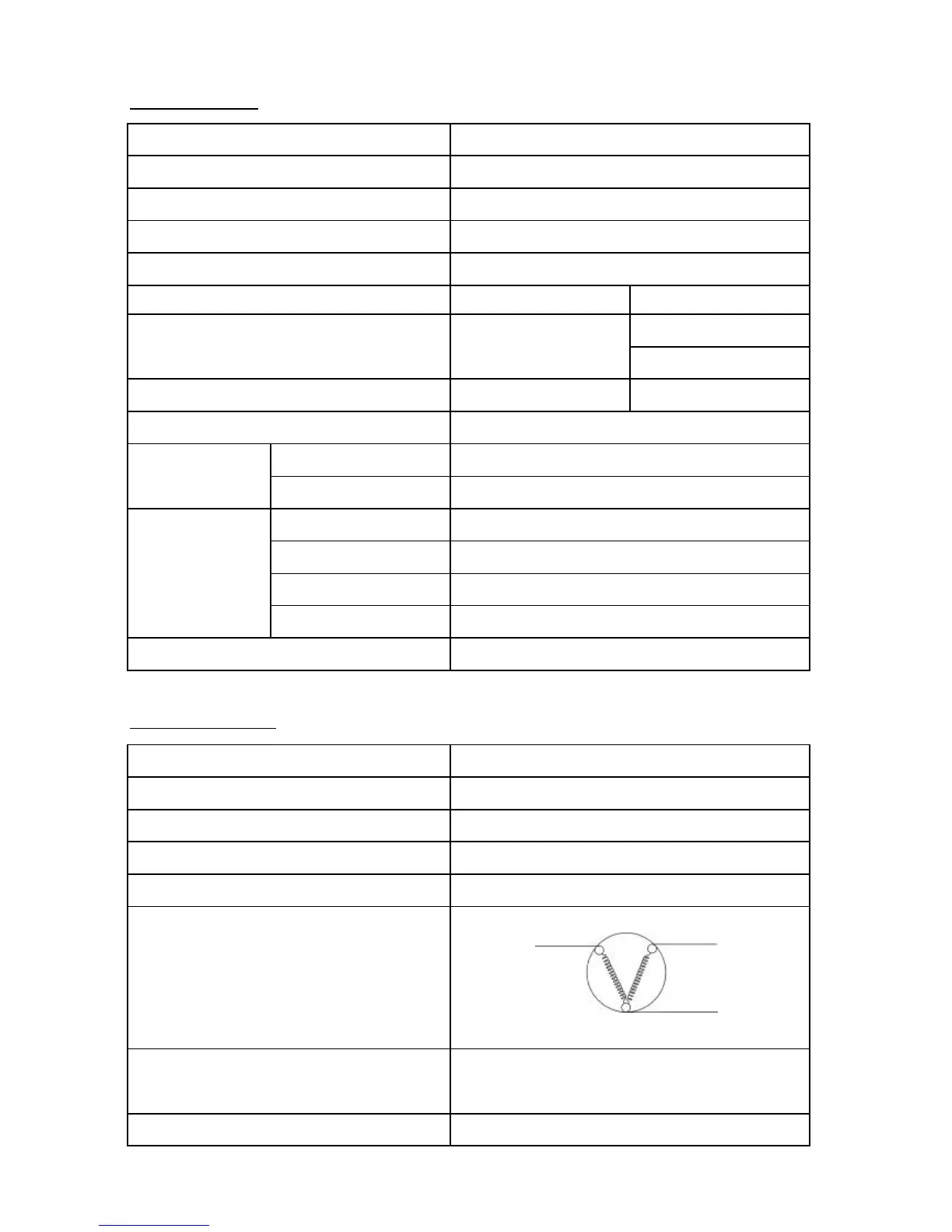

S P E C I F I C A T I O N
MODEL
COMPRESSORPTR-Z660EMX 018 (FL15S68NAD)
STARTING DEVICEPTR-Z481EMS 003 (PGN6SBT)
OVERLOAD RELAYPTR-Z481EMS 002 (P1.6C37A1)
RUNNING CAPACITORPTR-480ET5 005 (4μF/400V)
FREEZER SENSOR
R (21°C) = 12 k Ω ± 3 %
R (25°C) = 10 k Ω ± 2 %
REFRIGERATOR SENSORR (0°C) = 6.35 k Ω ± 2 %
REFRIGERATOR CHARGING R-134a (kg)0.165 kg
TEMPERATURE FRESH FOODELECTRONIC CONTROL
CONTROL FREEZERELECTRONIC CONTROL
DEFROSTING WAYHEATER
DEFROSTING INITIATIONF:AUTOMATIC , R:AUTOMATIC
SYSTEM TERMINATIONF:AUTOMATIC , R:AUTOMATIC
EVAPORATIONFORCED
FREEZER * * * *
MAIN PARTS COMPONENTS
COMPRESSOR
PHASE
RATE VOLTAGE ( V )
RATE FREQUENCY ( Hz )
POLE NUMBER
CONNECTION
M - C = 16.5 Ω
S - C = 23.9 Ω
STARTING CURRENT (A)7.91 A
RESISTANCE VALUE 75°C
PTR-Z660EMX 018 (FL15S68NAD)
SINGLE PHASE
220-240V
50Hz
2
PTR-W720FMX 071
YES
R-Z660ERU9X
UP HINGE SENSORPTR-Z400V 050
PTR-W720FMX 065R (-20°C) = 18.9k Ω ±2%
MAIN COIL
STARTING COIL
MS
C
2
