– 21 –
MODEL RAC-07CHV1 RAC-09CHV1
COMPRESSOR MODEL G333DB2Z G533QB9Z
PHASE SINGLE SINGLE
RATED VOLTAGE 220 – 240 V 220 – 240 V
RATED FREQUENCY 50 Hz 50 Hz
LOCKED ROTOR CURRENT 22 A 22 A
POLE NUMBER 2 2
COMPRESSOR MOTOR

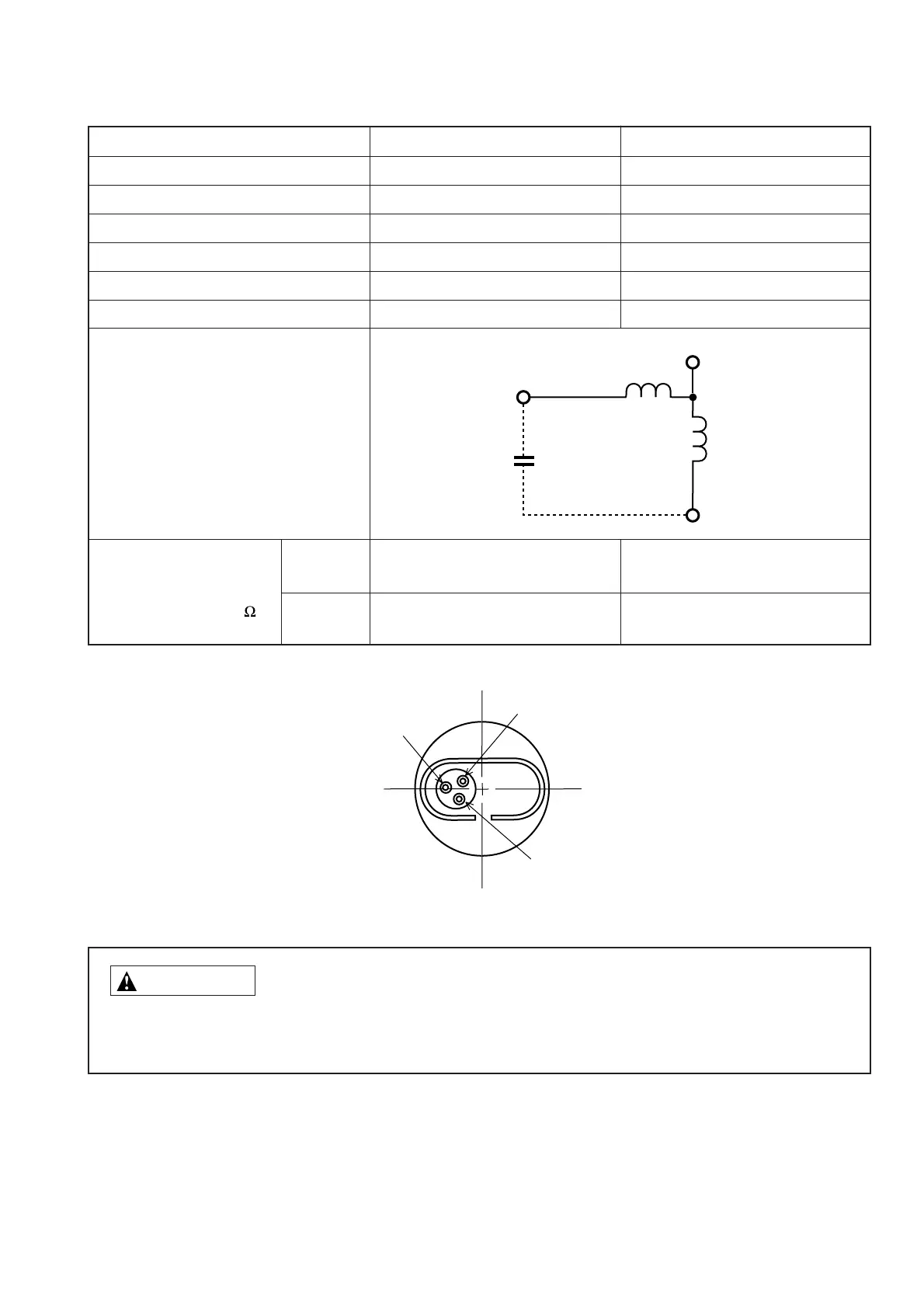

Compressor Motor Specifications
CONNECTION
20°C
(68°F)
75°C
(167°F)
RA = 4.027
RM = 3.938
RA = 4.896
RM = 4.787
( )
RESISTANCE VALUE
ORANGE
RED
WHITE
CAUTION
When the refrigerating cycle has been operated for a long time with the capillary tubes clogged or crushed
or with too little refrigerant, check the color of the refrigerating machine oil inside the compressor. If the
color has been changed conspicuously, replace the compressor.
RM
RA
RED
ORANGE
WHITE
CAPACITOR
RA = 4.372
RM = 3.154
RA = 5.315
RM = 3.834
