– 57 –

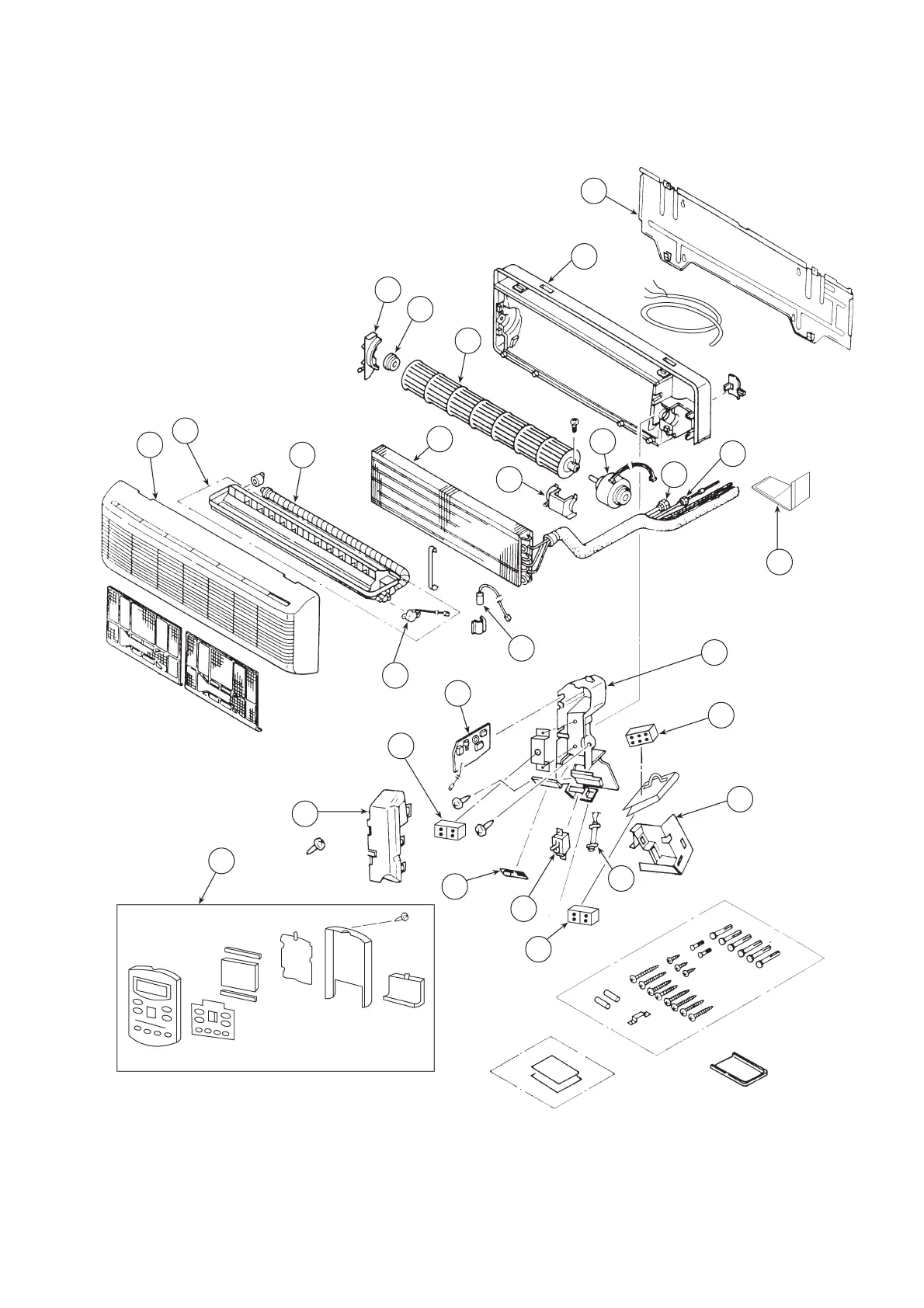

PARTS LIST AND DIAGRAM
MODEL RAS-07CH1, RAS-09CH1
7
15
16
3
20
8
20
26
2
17
12
24
18
19
40
23
51
13
11
9
10
14
6
5
4
1
23
