INDOOR UNIT

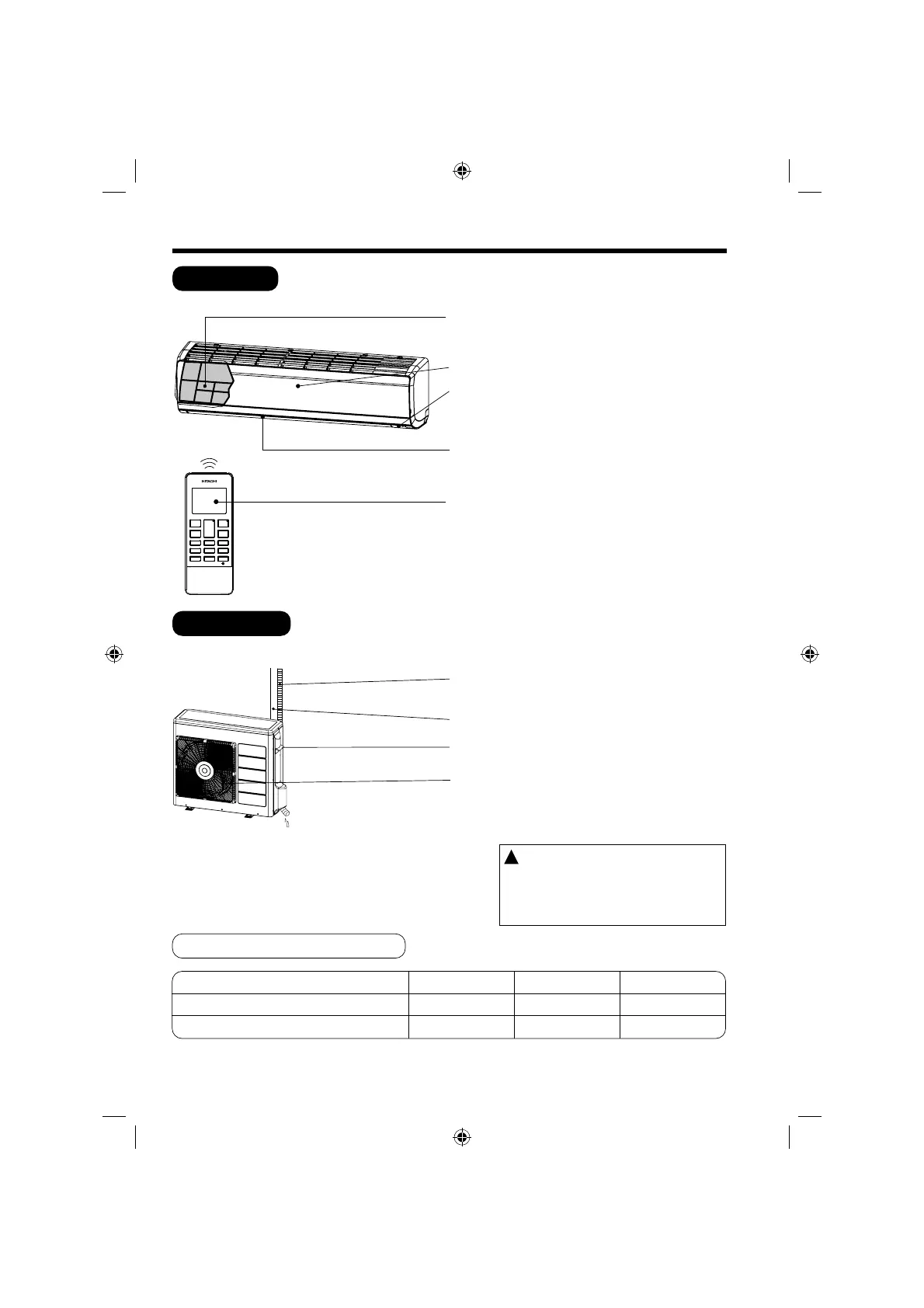

NAMES AND FUNCTIONS OF EACH PART
PRE-FILTER
To prevent dust from coming into the indoor unit.
(Refer page 22)
FRONT PANEL
INDOOR UNIT INDICATORS
Light indicator showing the operating condition.
(Refer page 5)
HORIZONTAL DEFLECTOR
●
VERTICAL
DEFLECTOR (AIR OUTLET) (Refer page 18)
REMOTE CONTROLLER
Send out operation signal to the indoor unit. So as to
operate the whole unit.
(Refer page 6)
MODEL NAME AND DIMENSIONS
OUTDOOR UNIT
DRAIN PIPE
Condensed water drain to outside.
CONNECTING CORD
AIR INLET (BACK, LEFT SIDE)
AIR OUTLET
MODEL WIDTH (mm) HEIGHT (mm)
DEPTH (mm)
RAS-E70YHAB/RAS-E80YHAB 1100 300
260
RAC-E70YHAB/RAC-E80YHAB 850 800
298
CAUTION
● When heating operation, drain or de-
frosted water fl ows out from outdoor
unit. Don’t close drain outlet portion in
chilly area so as not to freeze these.
!
