– 13 –

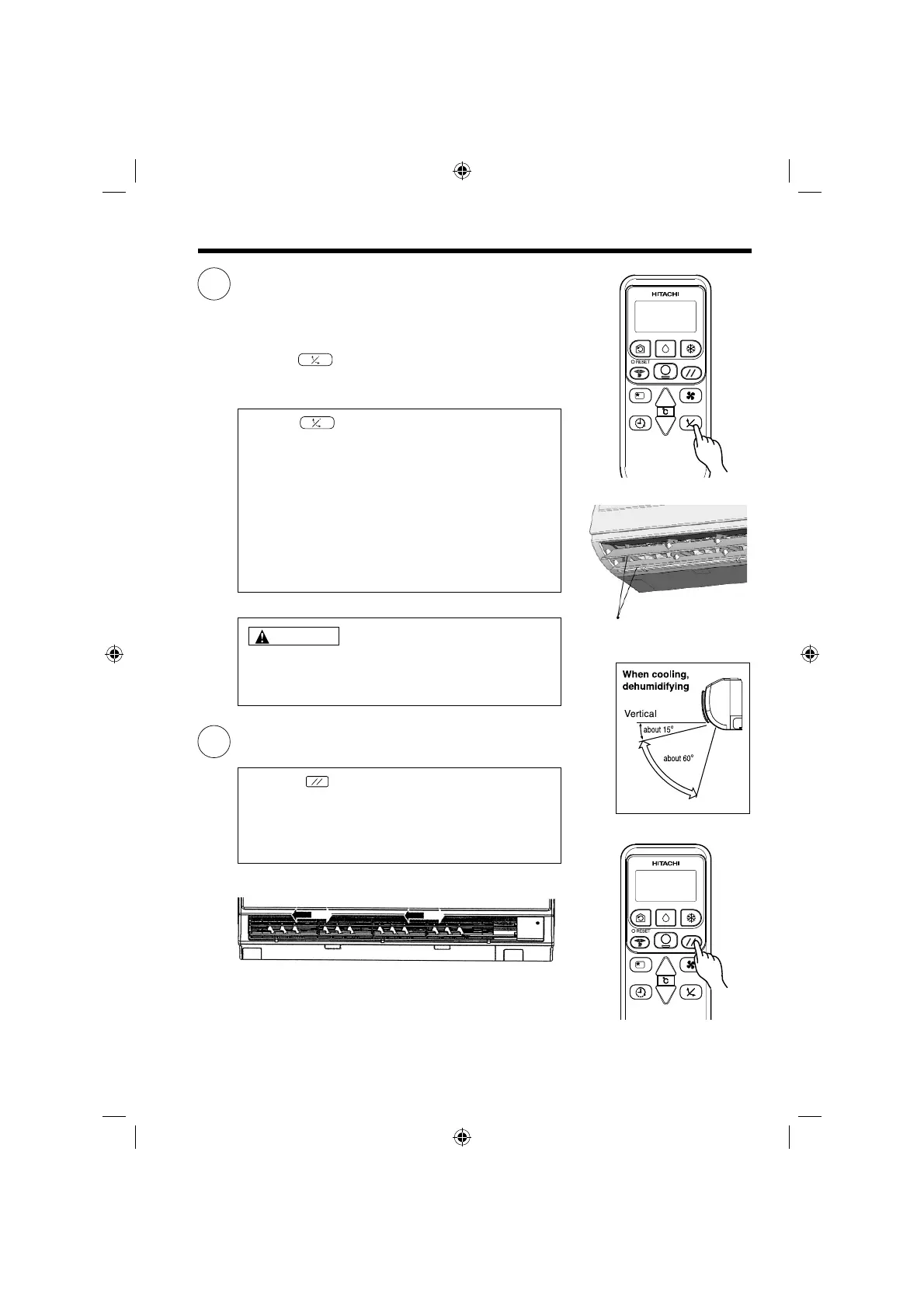

AIR FLOW LOUVERS ADJUSTMENTS
● If the “ (AUTO SWING)” button is pressed once,
the horizontal air defl ector swings up and down. If the
button is pressed again, the defl ector stops in its current
position. Several seconds (about 6 seconds) may be
required before the defl ector starts to move.
● Use the horizontal air defl ector within the adjusting range
shown on the right.
● When the operation is stopped, the horizontal air defl ector
moves and stops at the position where the air outlet
closes.
CAUTION
● In “Cooling” operation, do not keep the horizontal air
defl ector swinging for a long time. Some dew may form
on the horizontal air defl ector and dew may drop.
Adjustment of the conditioned air in the upward and downward
directions.
The horizontal air defl ector is automatically set to the proper
angle suitable for each operation. The defl ector can be swung
up and down continuously and also set to the desired angle
using the “ (AUTO SWING)” button.
Horizontal air defl ector
Adjustment of the conditioned air in the left and right directions.
● If the “ (PARALLEL SWING)” button is pressed
once, the vertical air defl ectors swing left and right to
parallel. If the button is pressed again, the defl ectors
stop in their current position. Several second (about 6
seconds) may be required before the defl ectors start to
move.
● PARALLEL SWING
1
2
