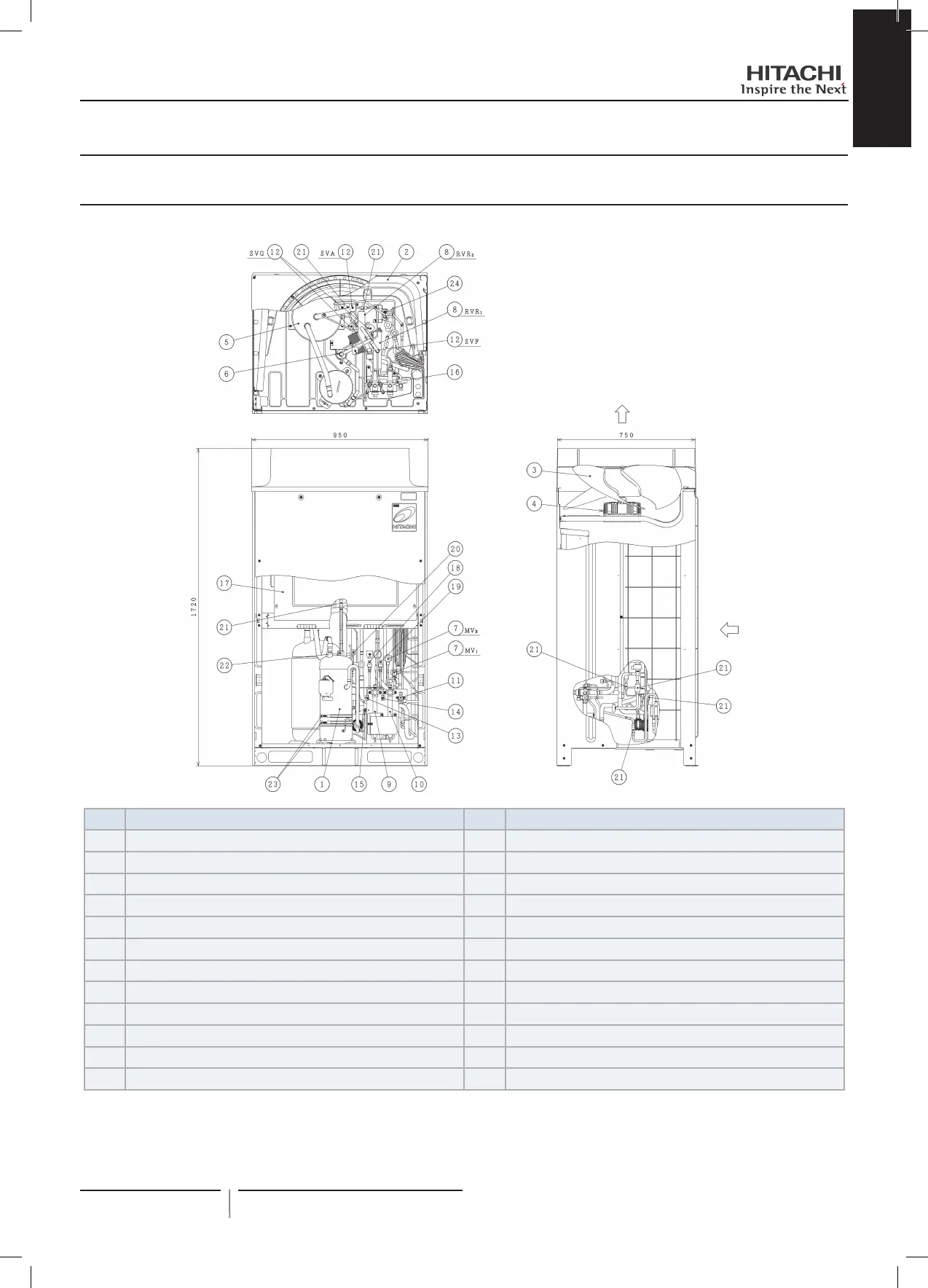

4 PART NAMES
4.1 RAS-8FSXN1E
Air inlet
Air outlet
Nº. Part Nº. Part
1 Compressor (Inverter) 13 Check joint (low)
2 Heat exchanger 14 Check joint (high)
3 Propeller fan 15 Check joint (for oil)
4 Fan motor 16 Check joint (for refrigerant)
5 Accumulator 17 Electrical control box
6 Oil separator 18 Low pressure sensor
7 Micro-computer control expansion valve (2 pcs.) 19 High pressure sensor
8 Reversing valve (2 pcs.) 20 High pressure switch for protection
9 Stop valve (low pressure gas) 21 Strainer
10 Stop valve (high/low pressure gas) 22 Check valve
11 Stop valve (liquid) 23 Crankcase heater (2 pcs.)
12 Solenoid valve (4 pcs.) 24 Double tube type heat exchanger
7
PMML0294A rev.2 - 07/2014
Part names
