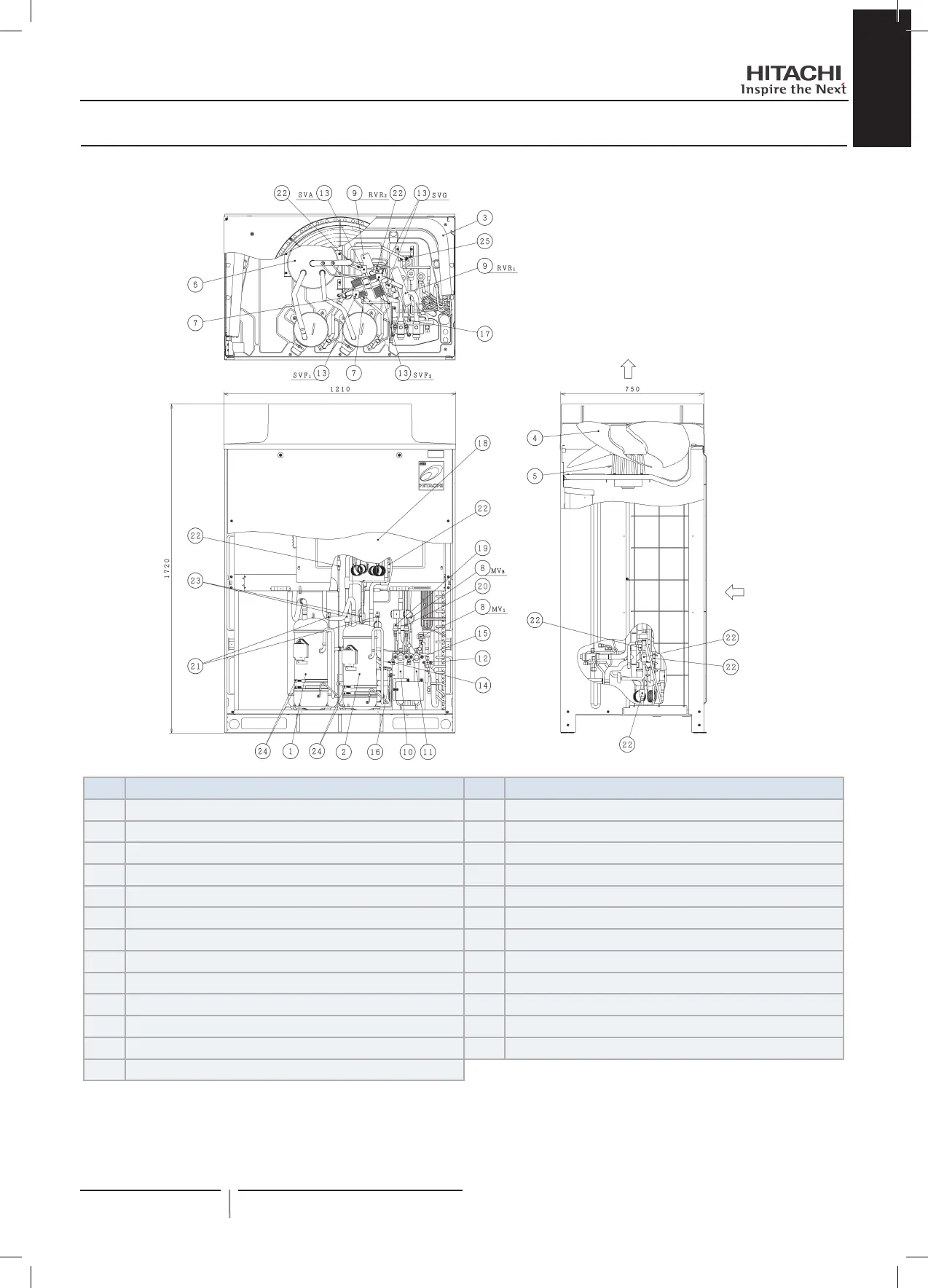

4.3 RAS-(14/16)FSXN1E
Air outlet
Air inlet
Nº. Part Nº. Part
1 Compressor (Inverter) 14 Check joint (low)
2 Compressor (Constant speed) 15 Check joint (high)
3 Heat exchanger 16 Check joint (for oil)
4 Propeller fan 17 Check joint (for refrigerant)
5 Fan motor 18 Electrical control box
6 Accumulator 19 Low pressure sensor
7 Oil separator 20 High pressure sensor
8 Micro-computer control expansion valve (2 pcs.) 21 High pressure switch for protection (2pcs.)
9 Reversing valve (2 pcs.) 22 Strainer
10 Stop valve (low pressure gas) 23 Check valve
11 Stop valve (high/low pressure gas) 24 Crankcase heater (4 pcs.)
12 Stop valve (liquid) 25 Double tube type heat exchanger
13 Solenoid valve (4 pcs.)
9
PMML0294A rev.2 - 07/2014
Part names
PMML0294A_rev.2_02-2014.indb 9 14/07/2014 12:28:01
