UNITS INSTALLATION

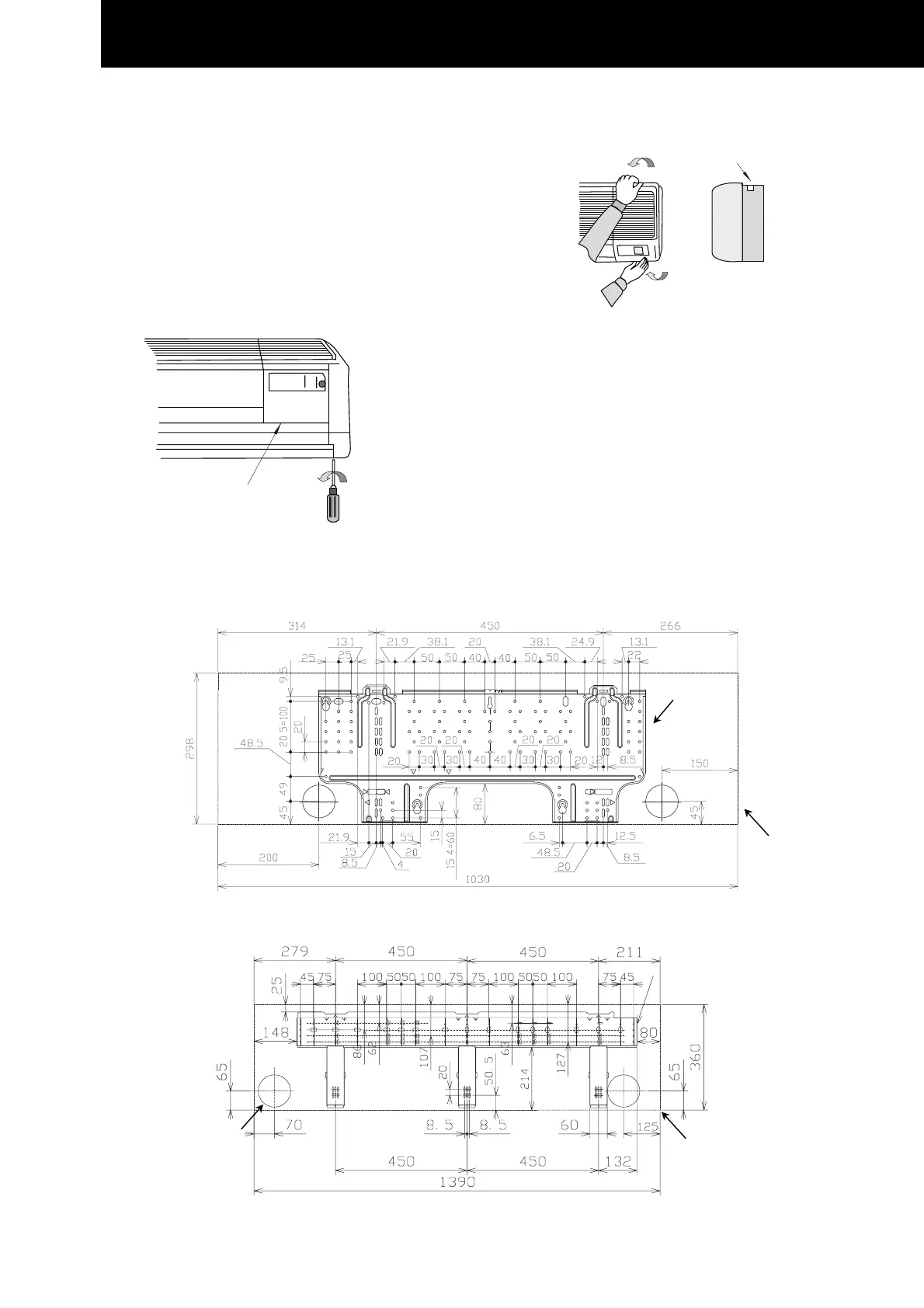

Putting back Front Panel (RPK-0.8 ~2.0)
1. Firstly put back the lower side of the front panel, and
then combine three parts of upper side of the front panel
2. There are three stoppers inside of the front panel. Check
to ensure that there is no gap between front panel, drain
pan and unit body.
Removing Right Side Cover (RPK-2.5 ~ 4.0)
1. In order to connect the refrigerant piping, wiring and to
check drain water flow, removing the right side cover is
needed. Perform this work according to the following
instructions. Pay an attention to the resin components
not to scratch.
2. Slowly pull the lower side of the right side cover and
detach the upper hook
CAUTION:
Any gap may cause air leakage or dewing.
2.1.4. DIMENSIONS OF THE MOUNTING BRACKET
■
RPK-0.8 ~ 2.0
■
RPK-2.5 ~ 4.0
Hook
Detach hook
To loose screw
Ø 65
Mounting
Bracket
Contourn
of the unit
Mounting
Bracket
Contourn
of the unit
To Next Page
