Before Use

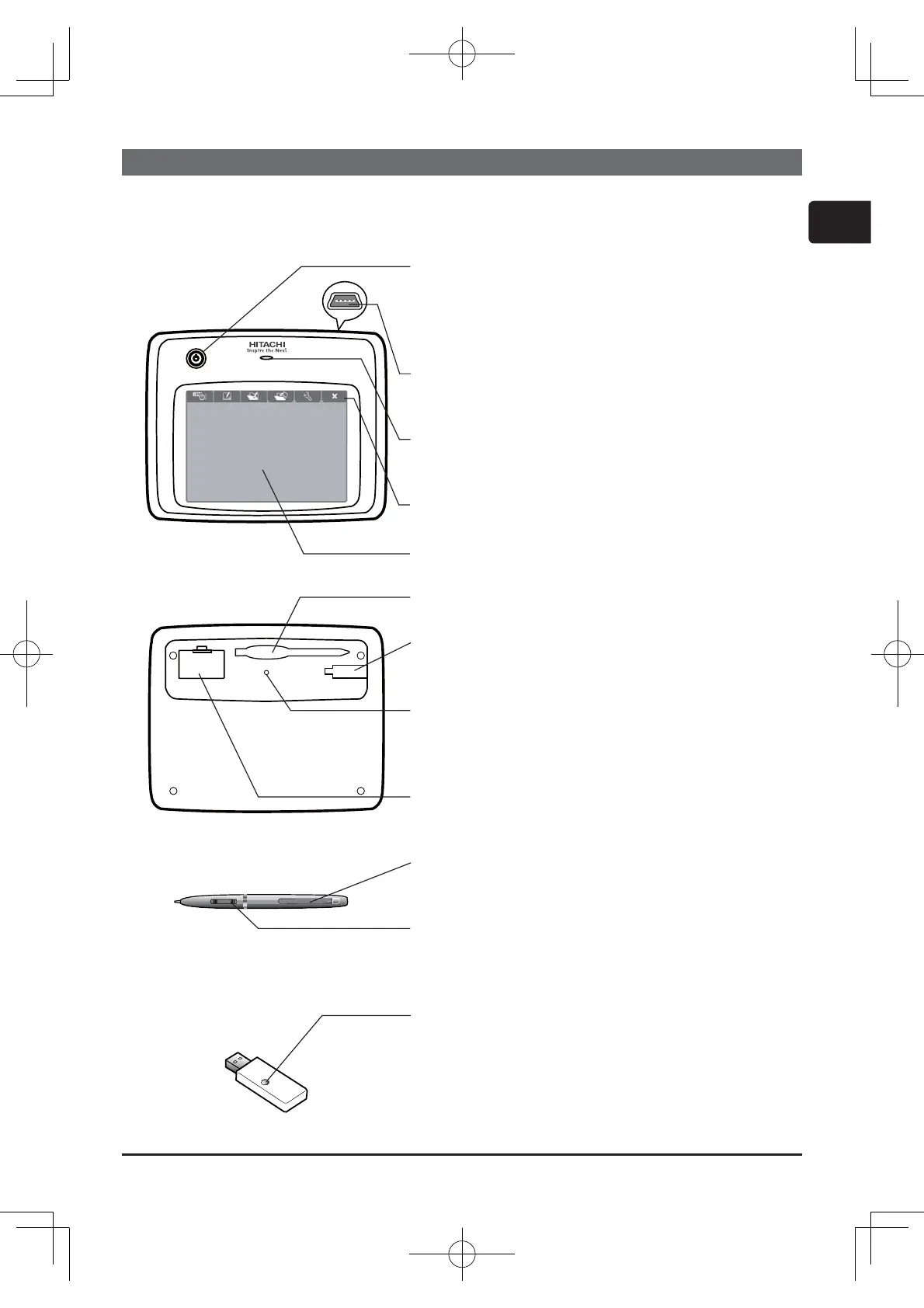

Names of Parts
Tablet (top)
Power button/Power LED
Turns the tablet on/off. Press the button for three
seconds or so to turn the tablet off.
The LED turns blue when the power is on. It
ashes when the battery is running low.
USB port
Connects to a projector or computer for recharging
the tablet.
Status LED
Indicates the wireless status or recharging status
of the battery.
Function keys
Switches the functions of the tablet.
Operation area
Tablet (bottom)
Pen slot
For storing the electronic pen.
Wireless adapter storage slot
For storing the wireless adapter.
Wireless settings button
Used when making communication settings with
the wireless adapter.
Battery box/Battery cover
Where the lithium ion battery is installed.
Electronic pen
Battery cover
Insert the AAA alkaline battery.
Eraser button
Pressing this button and dragging allows you to
erase what you’ve drawn.
Wireless adapter
Wireless settings button
Used when making communication settings with
the tablet.
