300
ohm
twin-lead
cable
antenna
cable
300
ohm
to
75
ohm
VHF
antenna
adaptor

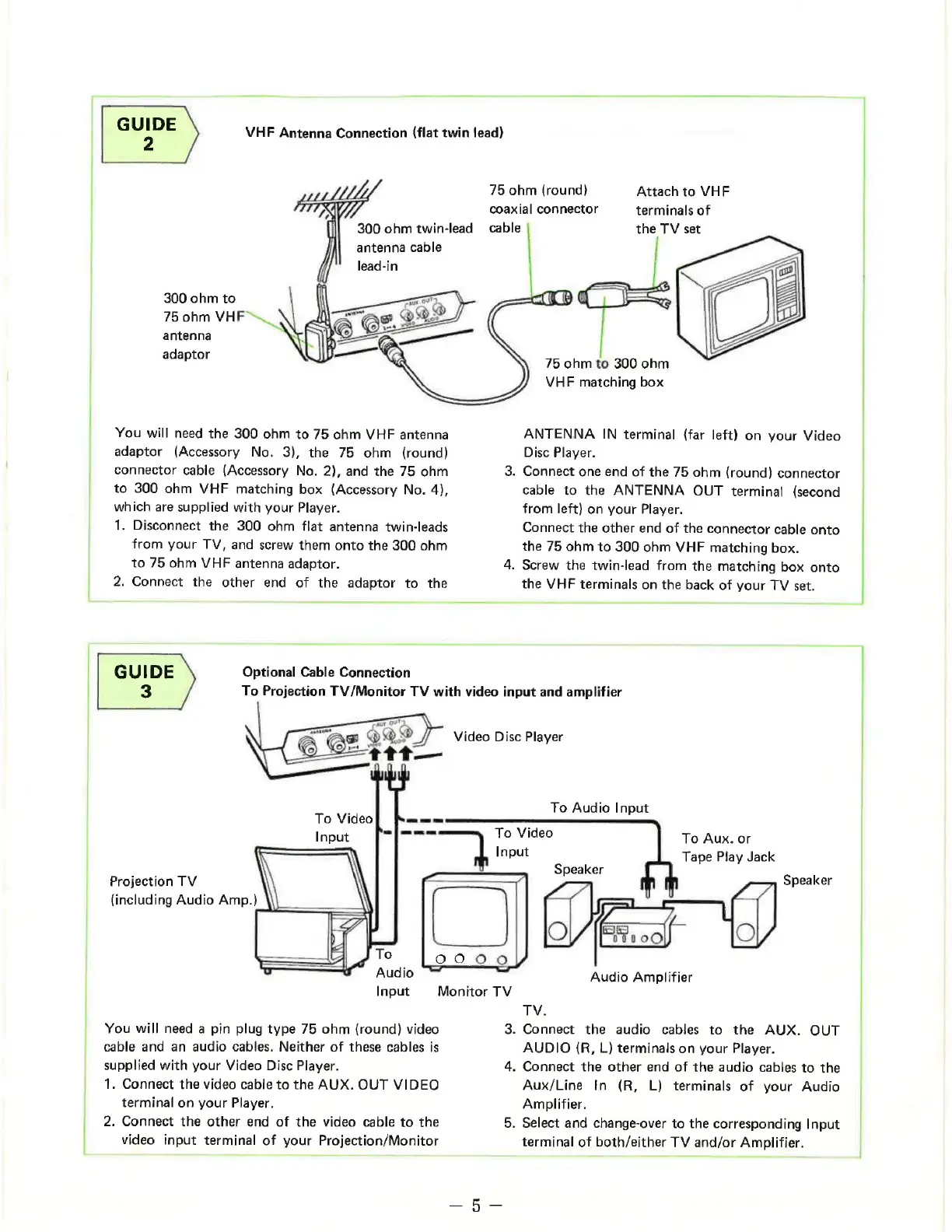

You
will
need
the
300
ohm
to
75
ohm
VHF
antenna
adaptor
(Accessory
No.
3),
the
75
ohm
(round)
connector
cable
(Accessory
No.
2),
and
the
75
ohm
to
300
ohm
VHF
matching
box
(Accessory
No.
4),
which
are
supplied
with
your
Player.
1.
Disconnect
the
300
ohm
flat
antenna
twin-leads
from
your
TV,
and
screw
them
onto
the
300
ohm
to
75
ohm
VHF
antenna
adaptor.
2.
Connect
the
other
end
of
the
adaptor
to
the
75
ohm
(round)
coaxial
connector
Attach
to
VHF
terminals
of
the
TV
set
75
ohm
to
300
ohm
VHF
matching
box
ANTENNA
IN
terminal
(far
left)
on
your
Video
Disc
Player.
.
Connect
one
end
of
the
75
ohm
(round)
connector
cable
to
the
ANTENNA
OUT
terminal
(second
from
left)
on
your
Player.
Connect
the
other
end
of
the
connector
cable
onto
the
75
ohm
to
300
ohm
VHF
matching
box.
.
Screw
the
twin-lead
from
the
matching
box
onto
the
VHF
terminals
on
the
back
of
your
TV
set.
Optional
Cable
Connection
To
Projection
TV/Monitor
TV
with
video
input
and
amplifier
|
à
Projection
TV
{including
Audio
Amp.)
Audio
Input
Monitor
TV
You
will
need
a
pin
plug
type
75
ohm
(round)
video
3.
cable
and
an
audio
cables.
Neither
of
these
cables
is
supplied
with
your
Video
Disc
Player.
4,
1.
Connect
the
video
cable
to
the
AUX.
OUT
VIDEO
terminal
on
your
Player.
2.
Connect
the
other
end
of
the
video
cable
to
the
5
video
input
terminal
of
your
Projection/Monitor
To
Video
Input
Video
Disc
Player
To
Audio
Input
To
Aux.
or
Tape
Play
Jack
Speaker
Speaker
Audio
Amplifier
TV.
Connect
the
audio
cables
to
the
AUX.
OUT
AUDIO
(R,
L)
terminals
on
your
Player.
Connect
the
other
end
of
the
audio
cables
to
the
Aux/Line
In
(R,
L)
terminals
of
your
Audio
Amplifier.
.
Select
and
change-over
to
the
corresponding
Input
terminal
of
both/either
TV
and/or
Amplifier.
