Setting of DIP switches and RSW switches
TCGB0123 rev.2 - 10/2019
118


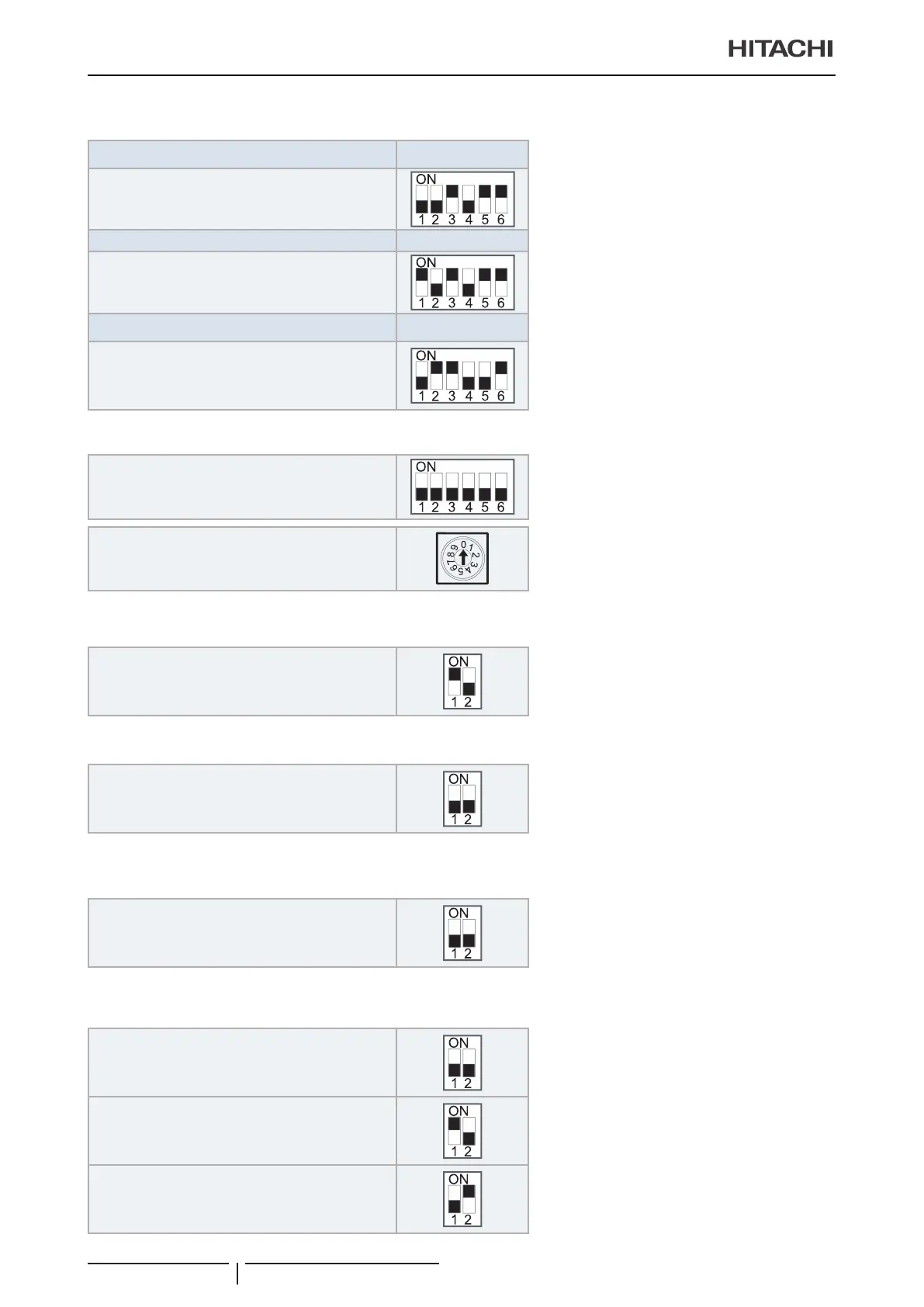

DSW3: Capacity Setting (No setting is required)
Model
RAS-2WHVRP
RASM-2VRE
Setting position
Model RAS-2.5WHVRP
Setting position
Model
RAS-3WHVRP
RASM-3VRE
Setting position

DSW4 / RSW1: No setting is required (Do not change)
Factory setting
Factory setting position.

DSW5: End terminal resistance (No setting is required)
Setting before shipment

DSW6: No setting is required (Do not change)
Factory setting

DSW7: No setting is required (Do not change)
Factory setting

DSW302: Piping Length Setting (Setting is required)
Setting before shipment
Pipe length (<5m)
Pipe length (≥30m)
