Transporting

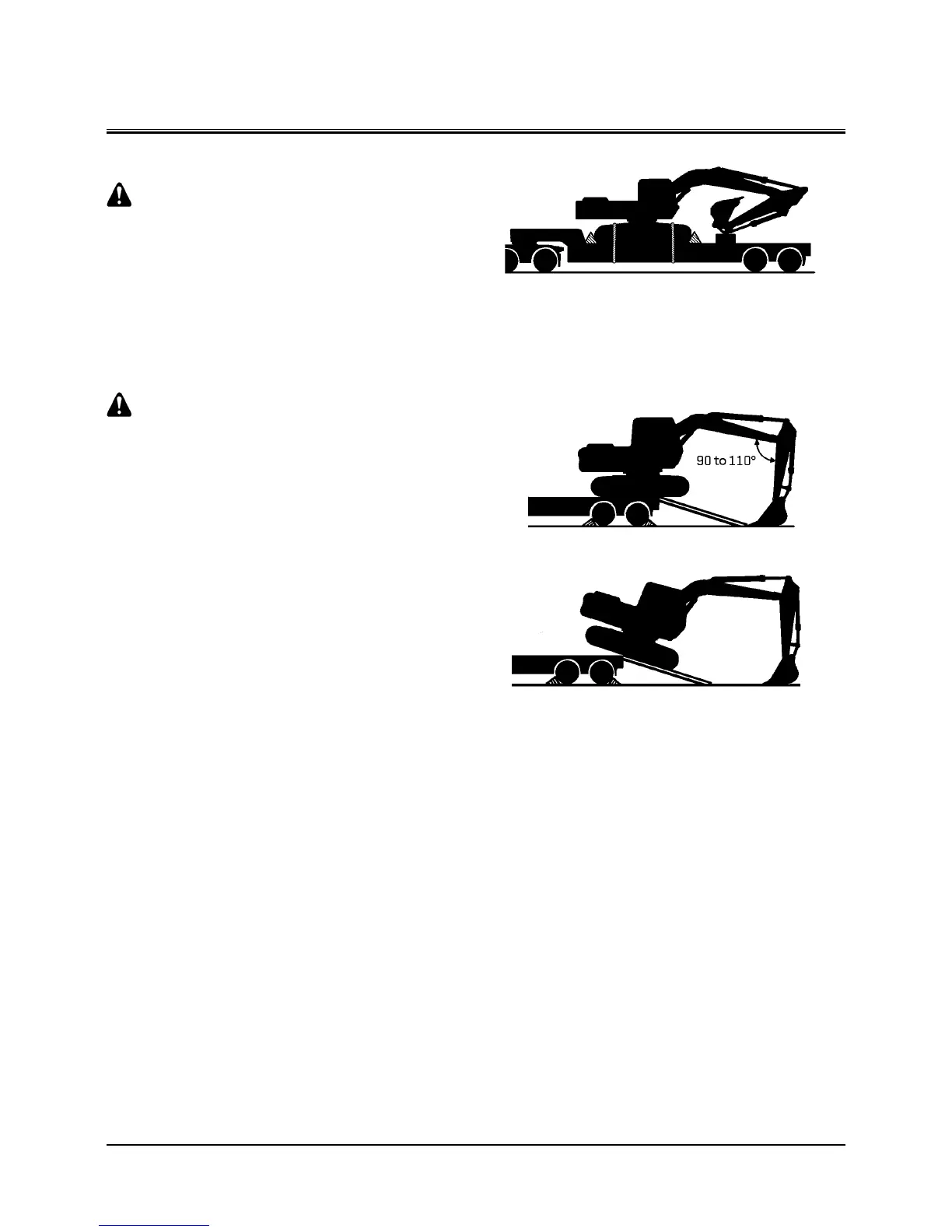

WARNING: Fasten chains or cables to the machine
frame. Do not place chains or cables over or against
the hydraulic lines or hoses.
1. Place blocks in front of and behind the tracks.
2. Fasten each corner of the machine and front attachment
to the trailer with a chain or cable.
Unloading
WARNING: The rear end of the flatbed where it meets
the ramp is a sudden bump. Take care when traveling
over it.
IMPORTANT: Prevent possible damage to the front attach-
ment. Always position the arm at 90 to 110
° to the boom when unloading the machine.
Unloading the machine with the arm tucked
in may cause machine damage.
1. To move the machine over end of the trailer onto the
ramp, rest the flat surface of the bucket on the ground.
Angle of the arm to the boom should be 90 to 110°.
IMPORTANT: Prevent possible damage to the hydraulic
cylinders. Do not allow the machine to hit
the ground hard with the bucket.
2. The bucket must be on the ground before the machine
begins to tip forward.
3. As the machine moves forward, raise the boom and
extend the arm until the machine is completely off the
ramp.
M107-06-023
