MAINTENANCE
7-43

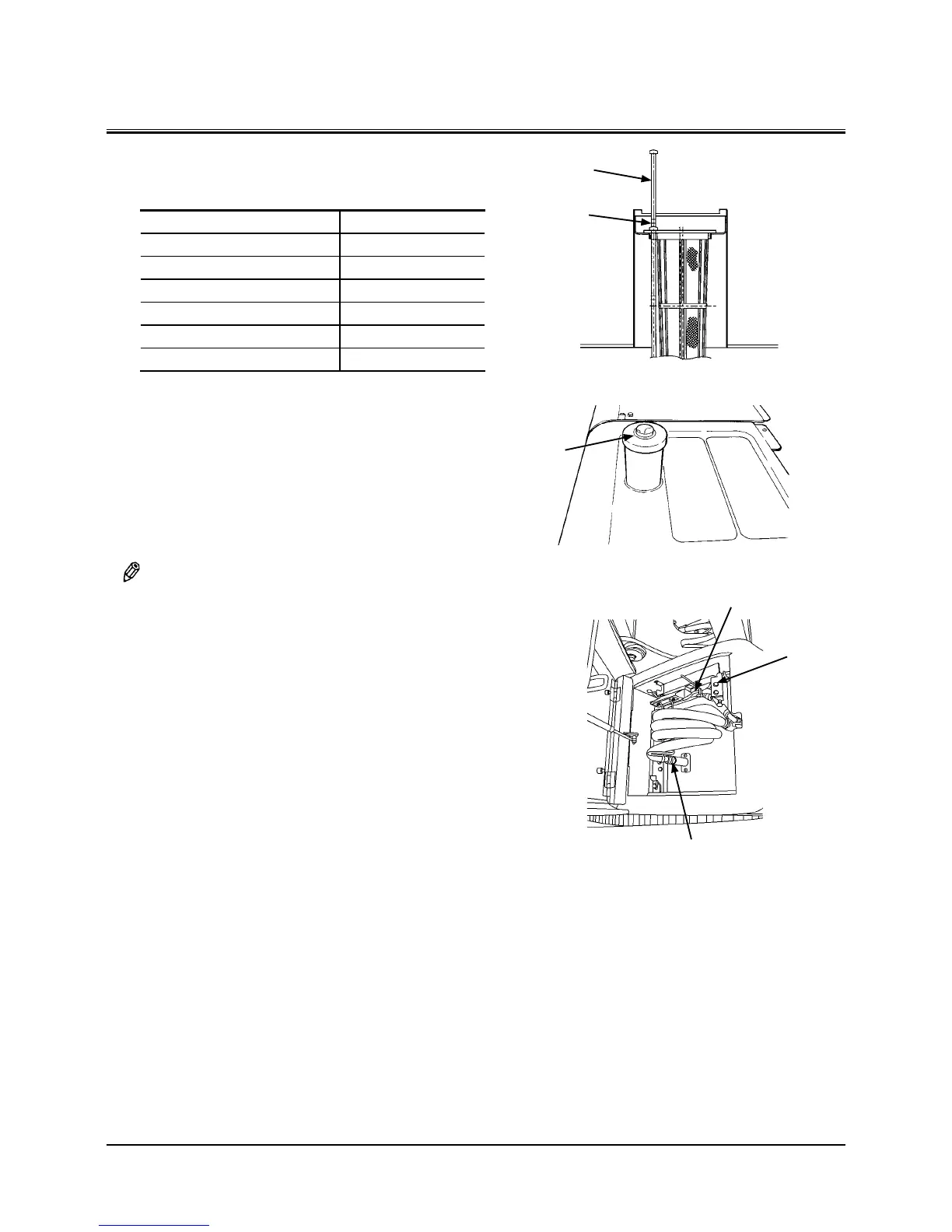

8. To avoid condensation, fill the tank at the end of each
day’s operation. Take care not to spill fuel on the machine
or ground.
Model Tank Capacity
ZX120-3 Class 250 L (66 US gal)
ZX180-3 Class 320 L (85 US gal)
ZX210-3, 210LC-3 400 L (106 US gal)
ZX210LCN-3, 240N-3 330 L (87 US gal)
ZX270-3 Class 500 L (132 US gal)
ZX330-3 Class 630 L (166 US gal)
Do not fill the tank more than specified. Stop filling when
a yellow mark on fuel level gauge (3) becomes visible. Be
sure to position the fuel service nozzle so that any part of
the nozzle does not obstruct rising of float-type fuel level
gauge (3).
9. Reinstall filler cap (2) on the filler tube. Be sure to lock
filler cap (2) with the key to prevent the cap from being
lost as well as to prevent vandalism.
NOTE: Take precautions for Fueling with Automatic Fuel-
ing Device (Optional).
Avoid overfilling. Never fail to remove filler cap (2)
when refueling with the automatic fueling device
and be sure to stop fueling when the yellow mark
on the float becomes visible.
M1U1-07-114
Automatic fueling device
ON-OFF
Switch
Refueling port
M178-07-087
2
M157-07-060
3
Yellow
Mark
To Next Page
