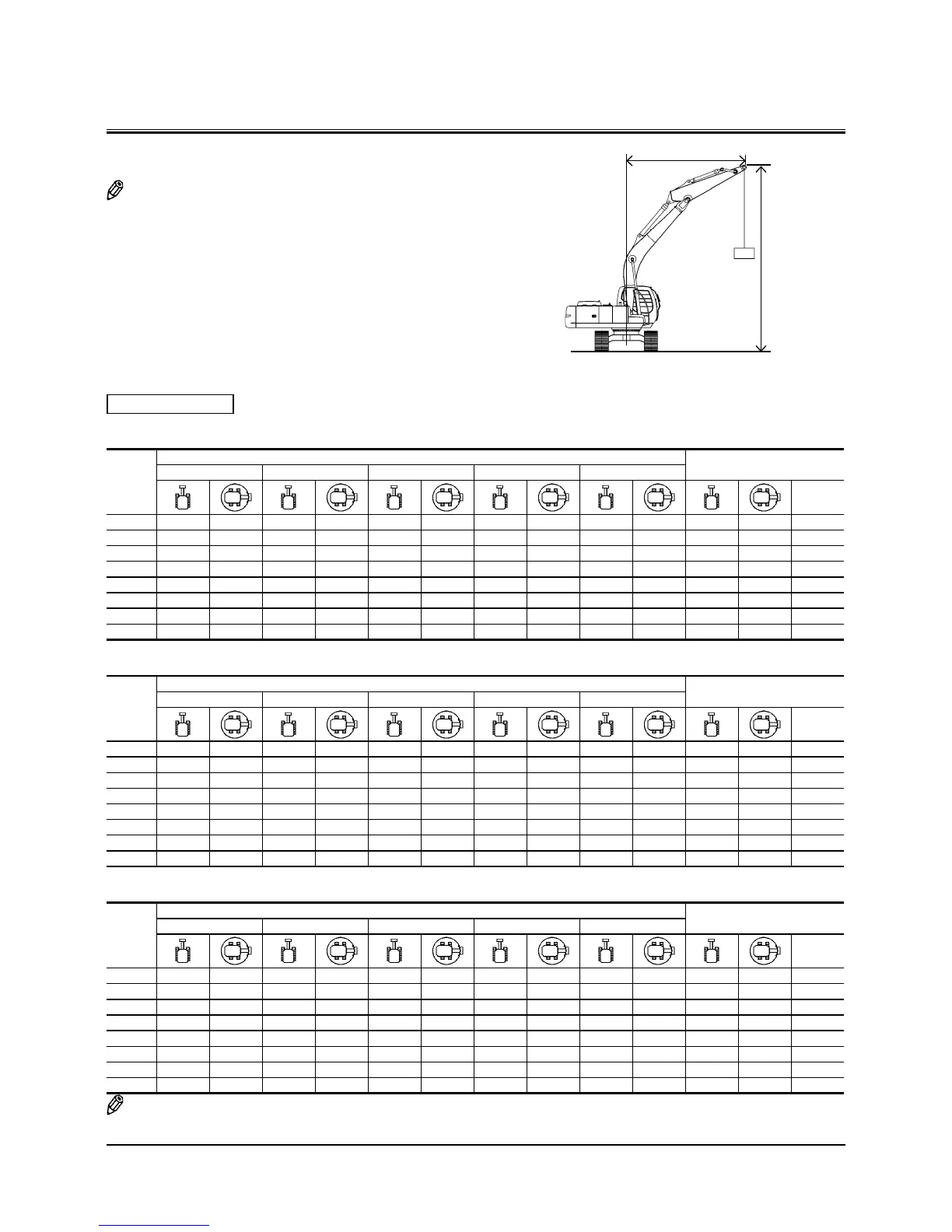

LIFTING CAPACITIES
NOTE: • Lifting capacity of the ZX series does not exceed 75%
of tipping load with the machine on firm, level ground
or 87 % of full hydraulic capacity. (ISO 10567)
• * Indicates load limited by hydraulic capacity.
A
C
B
M1G6-13-013
METRIC MEASURE
ZX110-3 Blade (Down), Monoblock boom, Arm 1.96 m, G 500 mm Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0
4.5 3160* 3160* 2119* 2119* 5.42
3.0 4980* 4980* 3650* 3070 2370* 1970 2077* 1948 6.05
1.5 4330* 2910 3400* 1920 2193* 1808 6.26
0 6360* 5050 4730* 2790 3250* 1880 2501* 1847 6.09
-1.5 4850* 4850* 6880* 5050 4590* 2760 3207* 2116 5.51
-3.0 5370* 5180 3491* 3005 4.34
-4.5
ZX110-3 Blade (Down), Monoblock boom, Arm 2.26 m, G 500 mm Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0
4.5 2920* 2920* 1790* 1790* 5.73
3.0 4530* 4530* 3450* 3100 2840* 1990 1760* 1760* 6.33
1.5 6580* 5310 4170* 2920 3300* 1930 1860* 1700 6.53
0 6790* 5050 4670* 2790 3470* 1870 2100* 1730 6.37
-1.5 4500* 4500* 7070* 5030 4660* 2750 2640* 1950 5.81
-3.0 8500* 8500* 5800* 5130 3740* 2810 3420* 2640 4.73
-4.5
ZX110-3 Blade (Down), Monoblock boom, Arm 2.81 m, G 500 mm Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0
4.5 2480* 2480* 2070* 2050 1550* 1550* 6.27
3.0 3600* 3600* 3030* 3030* 2760* 2010 1540* 1540* 6.82
1.5 5830* 5430 3830* 2950 3080* 1930 1620* 1520 7.01
0 7140* 5050 4480* 2780 3360* 1850 1820* 1530 6.86
-1.5 4030* 4030* 7240* 4950 4680* 2700 3370* 1820 2240* 1690 6.35
-3.0 6960* 6960* 6380* 5000 4200* 2720 3250* 2150 5.37
-4.5
NOTE: When the lifting hook is used, the maximum allowable lifting load is 4 tons.
A: Load radius
B: Load point height
C: Lifting capacity
