OPTIONAL ATTACHMENTS AND DEVICES
13-98
METRIC MEASURE
ZX350LCN-3 Mono block boom, Arm 2.33 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
6.0 10400 * 8780 9650 * 6140 9640 * 5870 7.70
4.5 15120 * 12630 11640 * 8340 10030 * 5980 8600 5090 8.30
3.0 13060 * 7830 9860 5750 8000 4700 8.60
1.5 13430 7450 9620 5540 7850 4570 8.62
0 13190 7250 9480 5410 8120 4700 8.38
-1.5 18040 * 10870 13160 7220 9480 5410 8930 5140 7.84
-3.0 19520 * 19520 * 15800 * 11090 12270 * 7370 10080 * 6150 6.93
-4.5 11560 * 11550 9190 * 8820 5.47
ZX350LCN-3 Mono block boom, Arm 2.67 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
6.0 9890 * 8850 9180 * 6190 9120 * 5540 8.00
4.5 14260 * 12830 11160 * 8400 9670 * 6000 8170 4830 8.58
3.0 17540 * 11620 12660 * 7870 9870 5750 7630 4470 8.87
1.5 13430 7440 9600 5510 7480 4340 8.89
0 19400 * 10710 13140 7200 9430 5360 7700 4440 8.65
-1.5 13890 * 13890 * 18430 * 10730 13070 7130 9380 5320 8400 4820 8.13
-3.0 21190 * 21190 * 16450 * 10920 12700 * 7240 9930 * 5680 7.26
-4.5 16110 * 16110 * 12770 * 11320 9480 * 7800 5.88

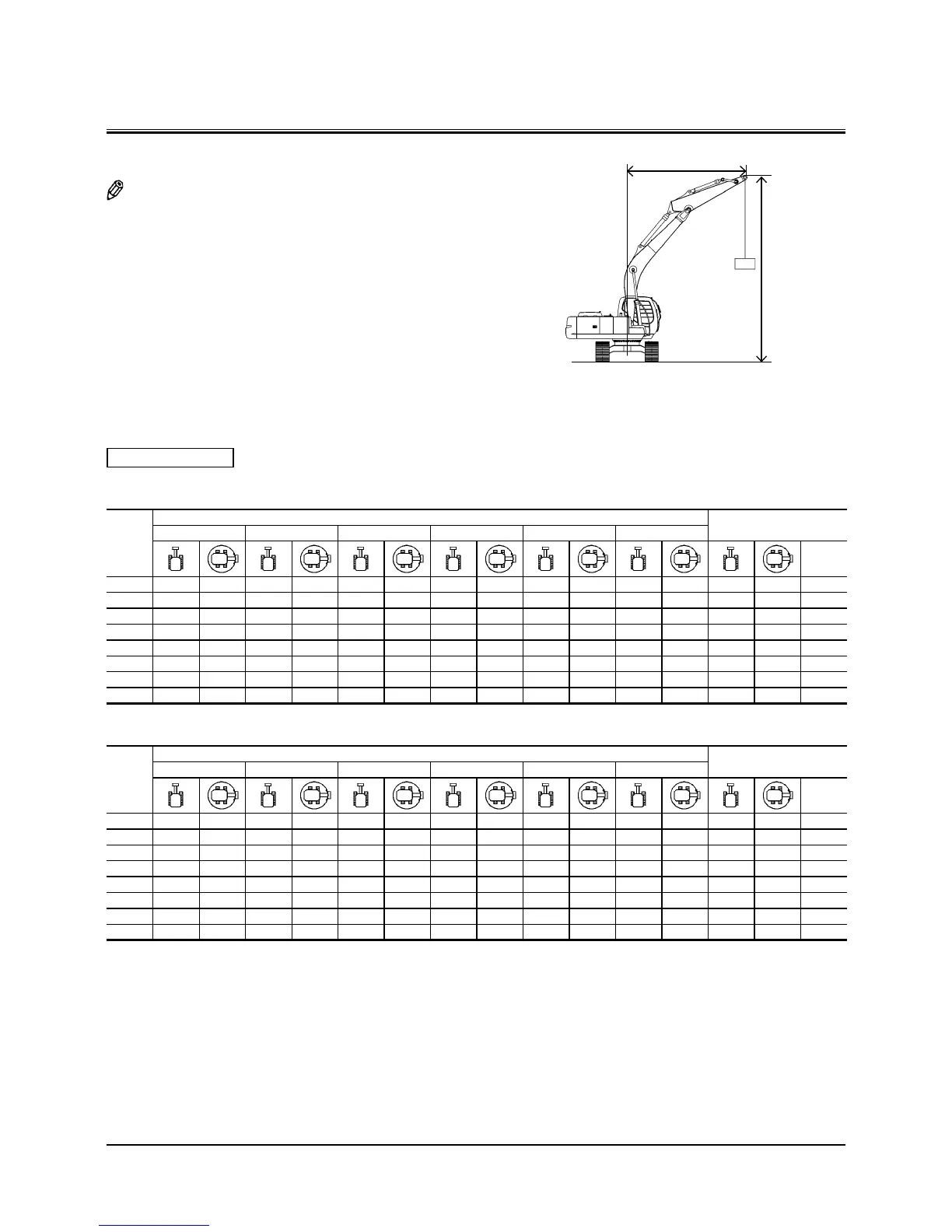

LIFTING CAPACITIES
NOTE: • Lifting capacity of the ZX series does not exceed 75%
of tipping load with the machine on firm, level ground
or 87 % of full hydraulic capacity. (ISO 10567)
• * Indicates load limited by hydraulic capacity.
A: Load radius
B: Load point height
C: Lifting capacity
A
C
B
M1G6-13-013
