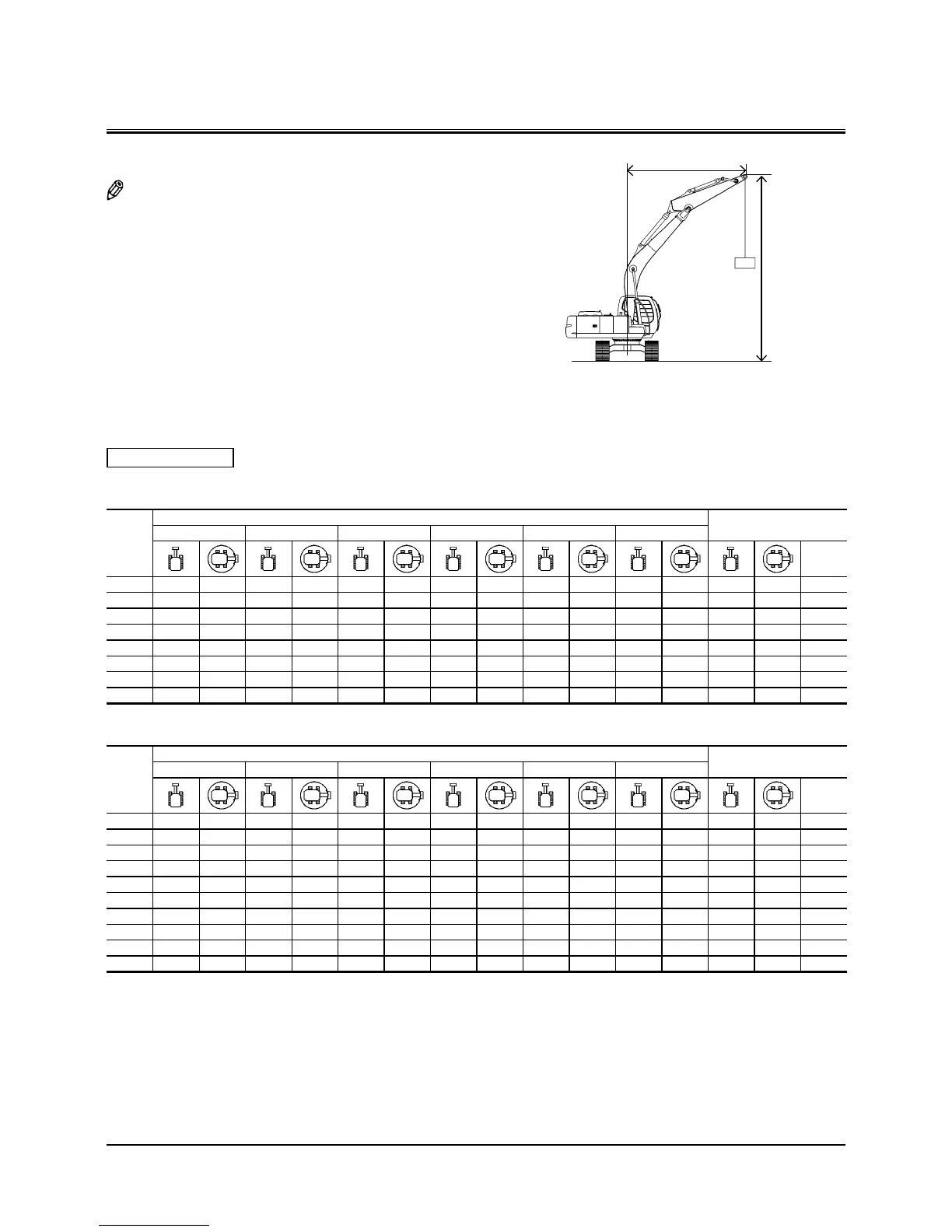

OPTIONAL ATTACHMENTS AND DEVICES
13-99
METRIC MEASURE
ZX350LCN-3 Mono block boom, Arm 3.20 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
6.0 8530 * 6280 6300 * 4960 8.58
4.5 10430 * 8540 9130 * 6060 7470 * 4490 6330 * 4380 9.12
3.0 16340 * 11980 12030 * 7990 9920 5790 7470 4370 6550 * 4080 9.39
1.5 18730 * 11080 13410 * 7510 9620 5520 7330 4240 6850 3970 9.42
0 19450 * 10700 13160 7200 9410 5330 7230 4150 7020 4040 9.19
-1.5 13320 * 13320 * 18940 * 10630 13010 7080 9310 5250 7560 4330 8.70
-3.0 15640 * 15640 * 21080 * 21080 * 17380 * 10760 13060 7120 9370 5300 8740 4980 7.90
-4.5 18960 * 18960 * 14380 * 11080 10830 * 7360 9210 * 6440 6.66
ZX350LCN-3 Mono block boom, Arm 4.00 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
7.5 5030 * 5030 * 8.63
6.0 7590 * 6440 6810 * 4690 4880 * 4300 9.42
4.5 8300 * 6200 7720 4590 4890 * 3850 9.91
3.0 14430 * 12530 10970 * 8210 9230 * 5890 7540 4420 5030 * 3600 10.16
1.5 17460 * 11410 12610 * 7650 9690 5570 7350 4250 5320 * 3500 10.18
0 8070 * 8070 * 19040 * 10780 13220 7240 9410 5330 7190 4110 5810 * 3540 9.98
-1.5 8110 * 8110 * 12220 * 12220 * 19260 * 10540 12960 7020 9240 5180 7110 4040 6580 3750 9.53
-3.0 12710 * 12710 * 17660 * 17660 * 18360 * 10550 12900 6970 9210 5150 7380 4200 8.80
-4.5 18220 * 18220 * 22520 * 21120 16220 * 10750 12270 * 7090 9150 5290 8680 * 5120 7.71
-6.0 16250 * 16250 * 12050 * 11220 8450 * 7490 8280 * 7400 6.06
LIFTING CAPACITIES
NOTE: • Lifting capacity of the ZX series does not exceed 75%
of tipping load with the machine on firm, level ground
or 87 % of full hydraulic capacity. (ISO 10567)
• * Indicates load limited by hydraulic capacity.
A: Load radius
B: Load point height
C: Lifting capacity
A
C
B
M1G6-13-013
