OPTIONAL ATTACHMENTS AND DEVICES
13-100
METRIC MEASURE
ZX350LC-3 2-piece boom, Arm 2.33 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
9.0 12460 * 12460 * 11240 * 11240 * 5.25
7.5 12130 * 12130 * 10060 * 9860 8830 * 7680 6.83
6.0 13500 * 13500 * 10360 * 9760 8760 * 6610 7810 * 6080 7.80
4.5 19220 * 19220 * 17510 * 14470 11510 * 9510 8990 * 6600 7330 * 5290 8.40
3.0 24740 * 24740 * 18460 * 13950 13430 * 9450 9620 * 6430 7180 * 4910 8.69
1.5 24470 * 24470 * 19410 * 13530 13820 8910 9830 6180 7300 * 4800 8.72
0 30490 * 24540 19510 * 12760 13960 8470 9640 5940 7720 * 4950 8.47
-1.5 29070 * 29070 * 29950 * 24330 19730 * 12420 13540 8110 9510 5830 7220 * 5440 7.94
-3.0 38130 * 38130 * 27030 * 24630 17660 * 12350 11230 * 8020 6540 * 6540 * 6.91
ZX350LC-3 2-piece boom, Arm 2.67 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
9.0 11670 * 11670 * 9960 * 9960 * 5.73
7.5 11540 * 11540 * 9570 * 9570 * 8070 * 7100 7.19
6.0 14880 * 14880 * 12750 * 12750 * 9930 * 9760 8330 * 6750 7210 * 5720 8.12
4.5 21730 * 21730 * 16330 * 14530 * 11030 * 9540 * 8650 * 6710 6810 * 5010 8.70
3.0 24570 * 24570 * 18880 * 14030 12870 * 9560 9310 * 6520 6680 * 4650 8.98
1.5 27680 * 26030 19360 * 13730 13810 8990 9800 6240 6800 * 4550 6800 * 4550 9.00
0 18560 * 18560 * 30210 * 24720 19410 * 12860 13890 * 8510 9670 5970 7180 * 4670 8.77
-1.5 25980 * 25980 * 30270 * 24320 19690 * 12420 13580 8130 9470 5790 7240 * 5090 8.25
-3.0 33740 * 33740 * 28090 * 24470 18500 * 12310 12340 * 7960 6030 * 6030 * 7.36
-4.5 18970 * 18970 * 11270 * 11270 * 9930 * 9930 * 4.80

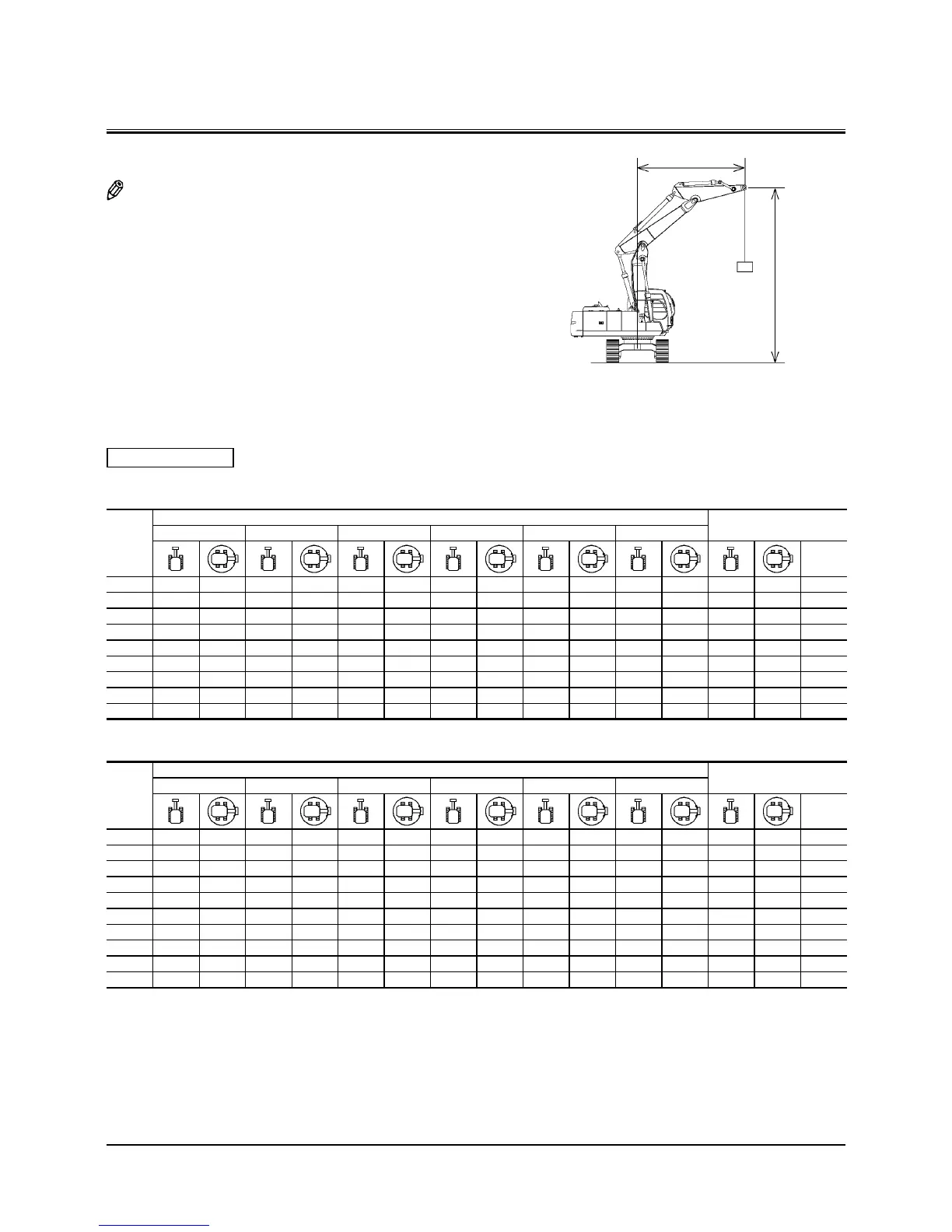

LIFTING CAPACITIES
NOTE: • Lifting capacity of the ZX series does not exceed 75%
of tipping load with the machine on firm, level ground
or 87 % of full hydraulic capacity. (ISO 10567)
• * Indicates load limited by hydraulic capacity.
A: Load radius
B: Load point height
C: Lifting capacity
C
B
M1G6-13-018
A
