OPTIONAL ATTACHMENTS AND DEVICES
13-102
METRIC MEASURE
ZX350LCN-3 2-piece boom, Arm 2.33 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
9.0 12460 * 12460 * 11240 * 10910 5.25
7.5 12130 * 12130 * 10060 * 9140 8830 * 7080 6.83
6.0 13500 * 13500 * 10360 * 9120 8760 * 6100 7810 * 5600 7.80
4.5 19220 * 19220 * 17510 * 13410 11510 * 8870 8990 * 6090 7330 * 4860 8.40
3.0 24740 * 24220 18460 * 13460 13430 * 8710 9620 * 5920 7180 * 4500 8.69
1.5 24470 * 22420 19410 * 12320 13800 8180 9820 5680 7300 * 4390 8.72
0 30490 * 21620 19510 * 11570 13930 7760 9620 5440 7720 * 4530 8.47
-1.5 29070 * 29070 * 29950 * 21420 19730 * 11240 13510 7400 9490 5330 7220 * 4970 7.94
-3.0 38130 * 38130 * 27030 * 21700 17660 * 11180 11230 * 7320 6540 * 6090 6.91
ZX350LCN-3 2-piece boom, Arm 2.67 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
9.0 11670 * 11670 * 9960 * 9590 5.73
7.5 11540 * 11540 * 9570 * 9280 8070 * 6550 7.20
6.0 14880 * 14880 * 12750 * 12750 * 9930 * 9160 8330 * 6240 7210 * 5260 8.12
4.5 21730 * 21730 * 16330 * 13500 * 11030 * 8900 8650 * 6200 6810 * 4600 8.70
3.0 24570 * 24240 18880 * 12950 12870 * 8820 9310 * 6000 6680 * 4260 8.98
1.5 27680 * 23020 19360 * 12510 13790 8260 9780 * 5730 6800 * 4160 6800 * 4160 9.00
0 18560 * 18560 * 30210 * 21790 19410 * 11670 13890 * 7790 9650 5460 7180 * 4270 8.77
-1.5 25980 * 25980 * 30270 * 21410 19690 * 11250 13550 7420 9460 5290 7240 * 4650 8.25
-3.0 33740 * 33740 * 28090 * 21560 18500 * 11140 12340 * 7250 6030 * 5530 7.36
-4.5 18970 * 18970 * 11270 * 11270 * 9930 * 9930 * 4.80

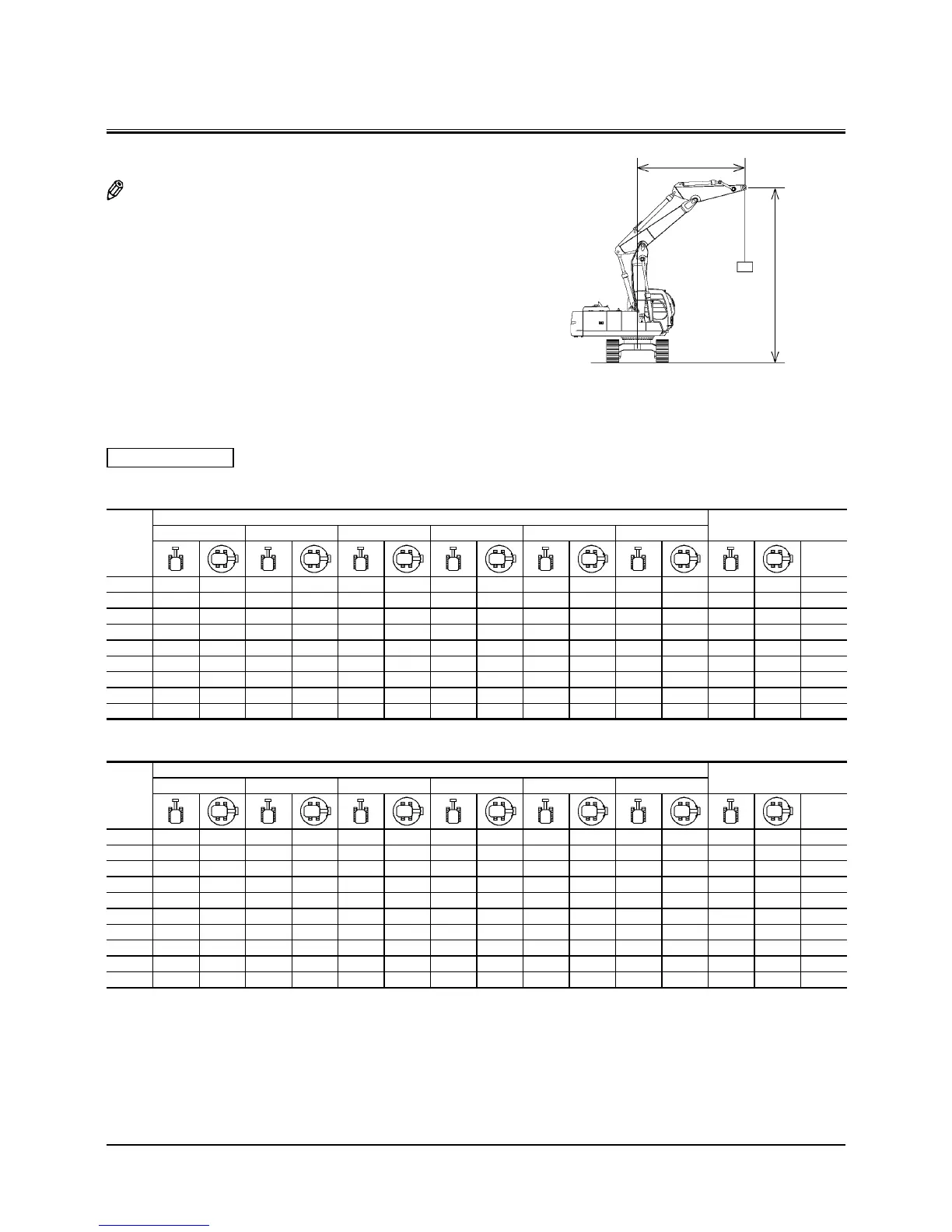

LIFTING CAPACITIES
NOTE: • Lifting capacity of the ZX series does not exceed 75%
of tipping load with the machine on firm, level ground
or 87 % of full hydraulic capacity. (ISO 10567)
• * Indicates load limited by hydraulic capacity.
A: Load radius
B: Load point height
C: Lifting capacity
C
B
M1G6-13-018
A
