Hitachi ZAXIS 200-3 class User Manual

OPTIONAL ATTACHMENTS AND DEVICES
13-103
METRIC MEASURE
ZX350LCN-3 2-piece boom, Arm 3.20 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
10.5 9340 * 9340 * 4.38
9.0 9110 * 9110 * 7290 * 7290 * 6.55
7.5 8930 * 8930 * 7690 * 6320 6540 * 5700 7.86
6.0 11680 * 11680 * 9310 * 9170 * 7800 * 6460 6220 * 4710 8.72
4.5 23490 * 23490 * 14430 * 13550 10300 * 8960 8180 * 6400 6820 * 4430 6060 * 4160 9.25
3.0 19720 * 19720 * 24350 * 24220 18690 * 13050 11990 * 9010 8830 * 6190 7240 * 4350 5960 * 3880 9.52
1.5 26540 * 23970 19300 * 12810 13730 8400 9670 * 5880 7370 4210 6050 * 3790 9.54
0 29250 * 22100 19260 * 11820 13600 7860 9630 5550 7230 4080 6350 * 3870 9.32
-1.5 30340 * 21390 19450 * 11260 13660 7500 9470 5300 6930 * 4170 8.84
-3.0 29230 * 21310 19270 * 11090 13320 7220 8650 5230 5700 * 4810 8.05
-4.5 29960 * 29960 * 23730 * 21740 14790 * 11070 8440 * 7290 7230 * 6890 6.26
ZX350LCN-3 2-piece boom, Arm 4.00 m, G 600 mm Unit; kg
B: Load
point
height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m 9.0 m
REACH
m
10.5 6570 * 6570 * 5.91
9.0 8220 * 8220 * 6320 * 6320 * 5500 * 5500 * 7.65
7.5 8140 * 8140 * 7060 * 6690 5030 * 4780 8.80
6.0 8500 * 8500 * 7170 * 6670 6240 * 4690 4810 * 4060 9.57
4.5 11450 * 11450 * 12100 * 12100 * 9340 * 9040 7560 * 6510 6410 * 4670 4750 * 3640 10.06
3.0 15070 * 15070 * 24830 * 24560 * 16760 * 13260 10810 * 8750 8200 * 6480 6700 * 4550 4820 * 3410 10.30
1.5 13290 * 13290 * 25400 * 24040 19120 * 12830 * 12890 * 8690 9030 * 6130 7100 * 4360 5030 * 3330 10.32
0 14890 * 14890 * 27760 * 23010 19170 * 12230 13600 8060 9590 5770 7310 4160 5390 * 3380 10.12
-1.5 18720 * 18720 * 29890 * 21710 19220 * 11440 13760 * 7590 9510 5410 7150 4000 5820 * 3600 9.68
-3.0 22880 * 22880 * 30130 * 21240 19500 * 11060 13430 7300 9360 5190 5670 * 4050 8.96
-4.5 25900 * 25900 * 27710 * 21410 17920 * 10970 12050 * 7130 6570 * 5230 5630 * 5080 7.69
-6.0 16970 * 16970 * 12010 * 12010 * 4.02

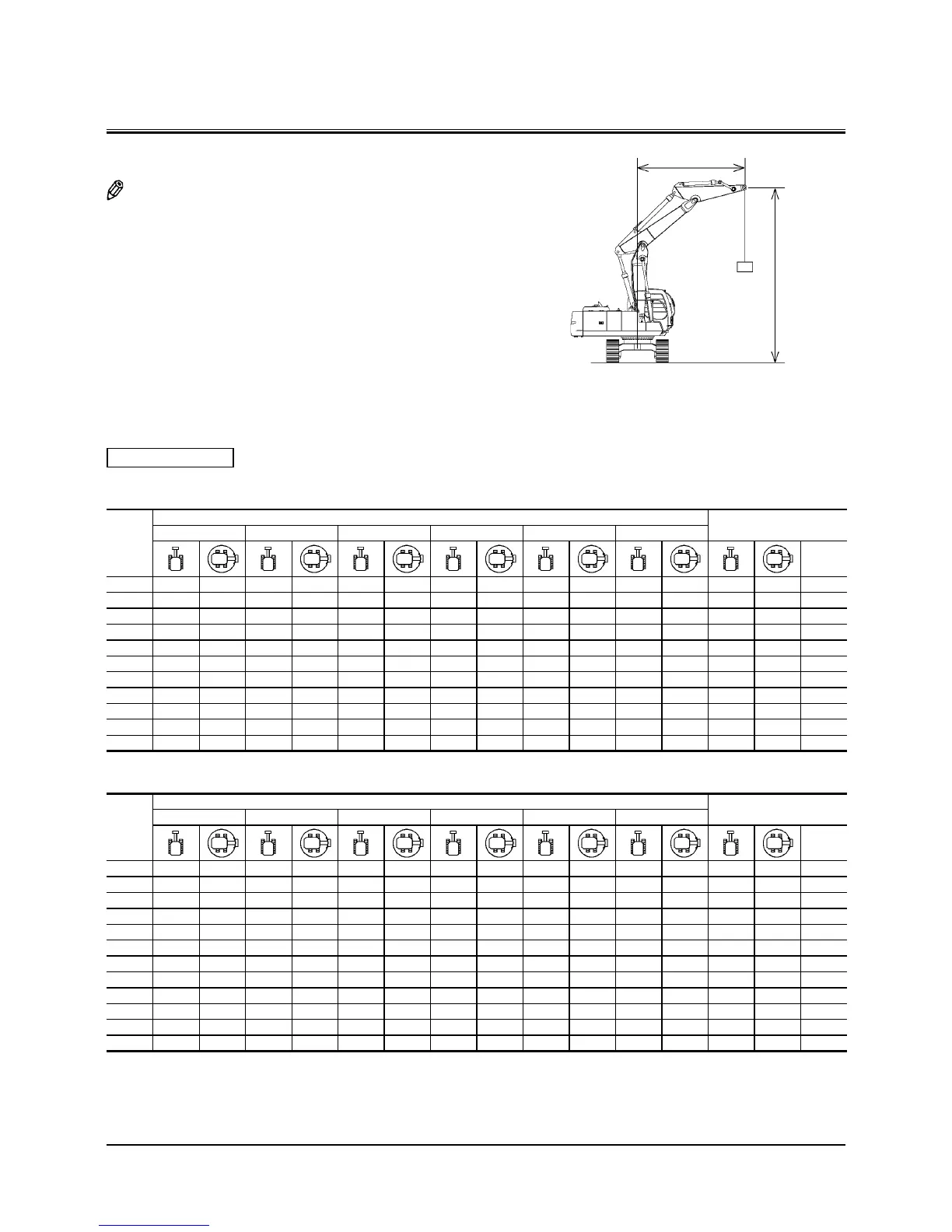

LIFTING CAPACITIES
NOTE: • Lifting capacity of the ZX series does not exceed 75%
of tipping load with the machine on firm, level ground
or 87 % of full hydraulic capacity. (ISO 10567)
• * Indicates load limited by hydraulic capacity.
A: Load radius
B: Load point height
C: Lifting capacity
C
B
M1G6-13-018
A
