MAINTENANCE
7-69

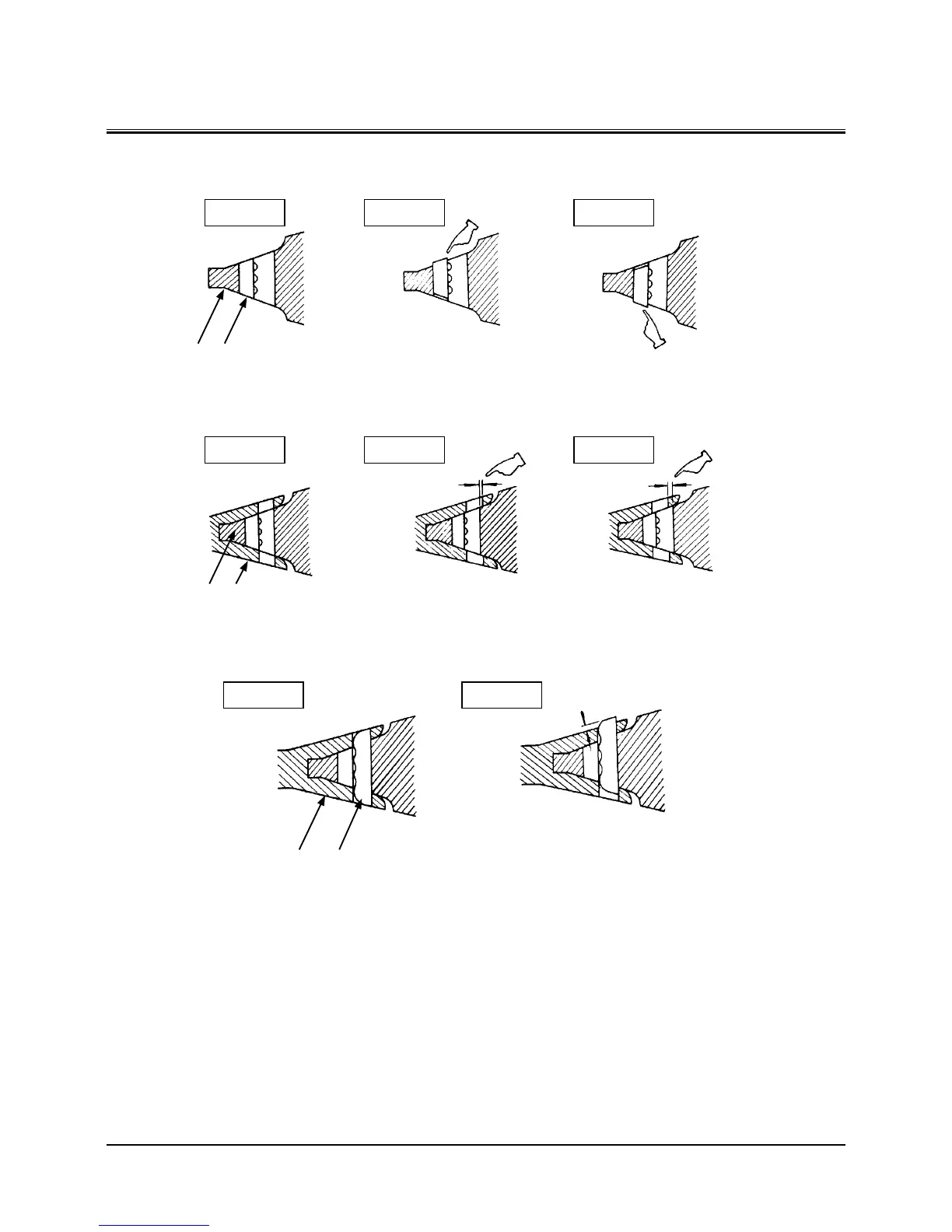

3. Clean shank (6) surface.
4. Install rubber pin lock (4) into shank (6) hole as shown.
5. Position new tooth (1) over shank (6).
6. Drive locking pin (5) fully into the hole as shown.
IMPORTANT: Check the bucket teeth periodically to en
-
sure that wear does not exceed the designed
service limit.
M104-07-060
6 4
M104-07-061
6 1
M104-07-062
1 5
RIGHT WRONG WRONG
RIGHT WRONG WRONG
RIGHT WRONG
