OPTIONAL ATTACHMENTS AND DEVICES
13-50

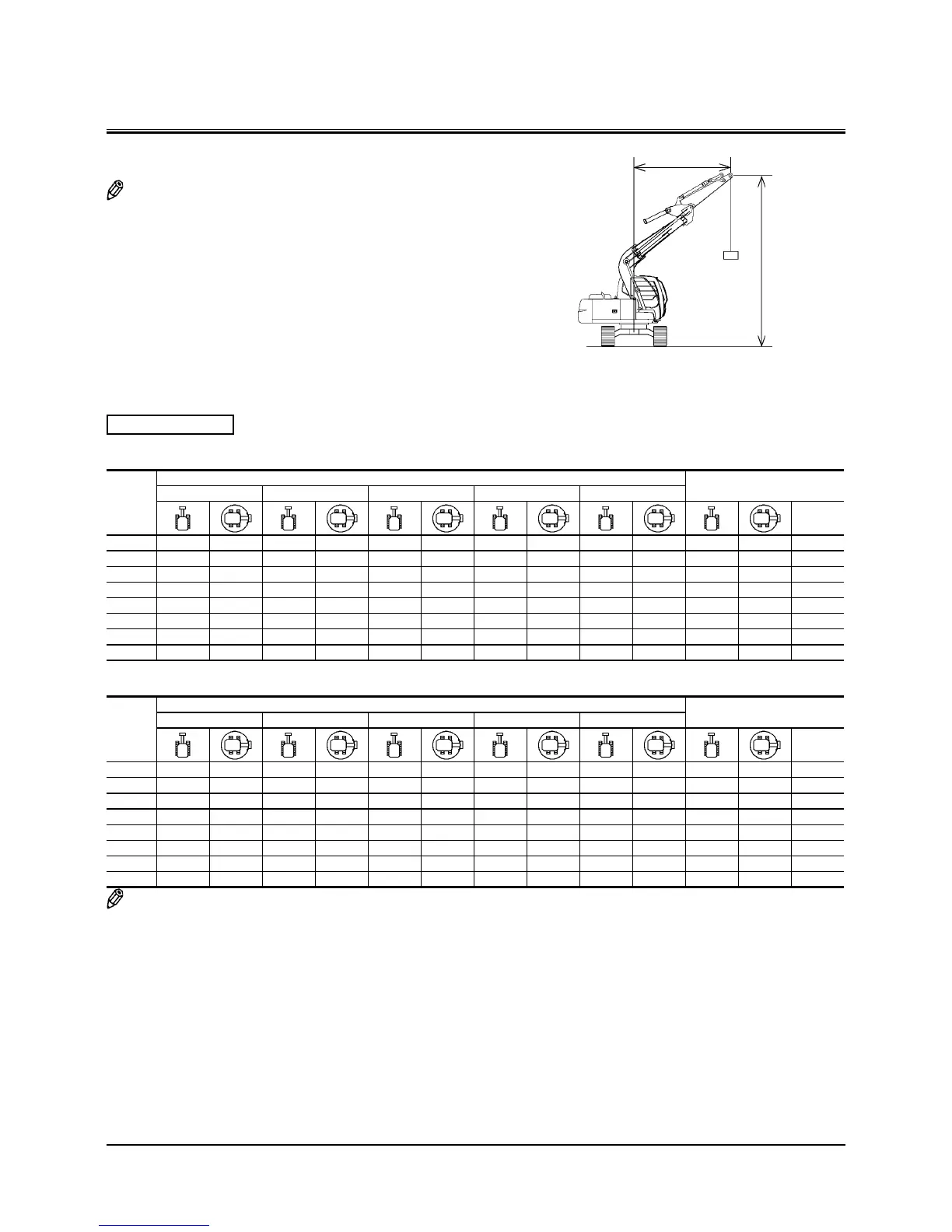

LIFTING CAPACITIES
NOTE: • Lifting capacity of the ZX series does not exceed 75%
of tipping load with the machine on firm, level ground
or 87 % of full hydraulic capacity. (ISO 10567)
• * Indicates load limited by hydraulic capacity.
A
C
B
M1G6-13-017
A: Load radius
B: Load point height
C: Lifting capacity
METRIC MEASURE
ZX110-3 Off-set front, Arm 1.96 m, G 500 mm Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0
4.5 2150* 2150* 1860* 1840 5.63
3.0 3600* 3600* 2660* 2620 2170 1580 1800* 1460 6.24
1.5 3230 2320 2060 1480 1830 1310 6.44
0 5390* 3790* 3010 2110 1970 1400 1850 1310 6.28
-1.5 4460* 4460* 5750 3800 2950 2050 2110 1490 5.71
-3.0 9030* 9030* 5920* 3990 3090 2180 3000 2130 4.60
-4.5
ZX110-3 Blade(Down), Off-set front, Arm 1.96 m, G 500 mm Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0
4.5 2150* 2150* 1860* 1862* 5.63
3.0 3600* 3600* 2660* 2660* 2470* 1800 1800* 1661 6.24
1.5 3400* 2630 2750* 1700 1870* 1503 6.44
0 5390* 4340 4000* 2420 3030* 1610 2080* 1512 6.28
-1.5 4460* 4460* 6550* 4350 4240* 2360 2570* 1723 5.71
-3.0 9030* 9030* 5920* 4540 3790* 2490 3640* 2429 4.60
-4.5
NOTE: When the lifting hook is used, the maximum allowable lifting load is 4 tons.
