OPTIONAL ATTACHMENTS AND DEVICES
13-56

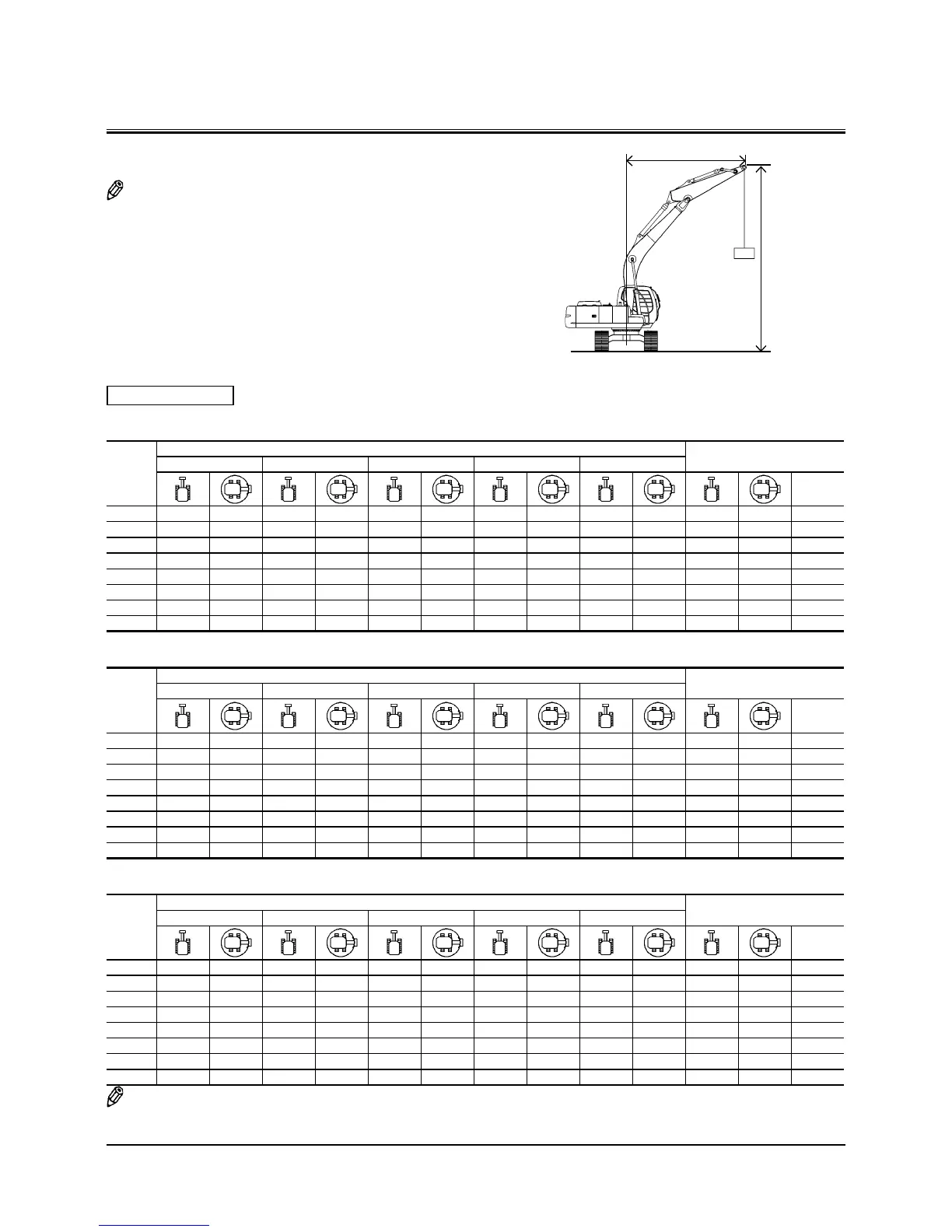

LIFTING CAPACITIES
NOTE: • Lifting capacity of the ZX series does not exceed 75%
of tipping load with the machine on firm, level ground
or 87 % of full hydraulic capacity. (ISO 10567)
• * Indicates load limited by hydraulic capacity.
A
C
B
M1G6-13-013
METRIC MEASURE
ZX130LCN-3 Monoblock boom, Arm 2.10 m, G 500 mm Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0
4.5 3730* 3580 2790* 2270 5.96
3.0 6340* 6330 4440* 3410 3420 2210 2750* 1930 6.54
1.5 5170 3200 3340 2130 2810 1800 6.73
0 5410* 5410* 5010 3060 3270 2070 2870 1830 6.57
-1.5 4760* 4760* 8390* 5530 4970 3020 3260 2060 3240 2050 6.04
-3.0 6880* 5660 4680* 3090 3940* 2690 5.00
-4.5
ZX130LCN-3 Monoblock boom, Arm 2.52 m, G 500 mm Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0
4.5 3350* 3350* 3310* 2290 2310* 2070 6.37
3.0 5540* 5540* 4100* 3460 3440 2230 2300* 1780 6.91
1.5 7960* 5830 5040* 3230 3340 2140 2430* 1670 7.09
0 6330* 5530 5010 3070 3250 2060 2630 1680 6.94
-1.5 4560* 4560* 8680* 5500 4930 3000 3220 2030 2920 1860 6.44
-3.0 8410* 8410* 7460* 5590 4980 3040 3720 2340 5.48
-4.5
ZX130LCN-3 Monoblock boom, Arm 3.01 m, G 500 mm Unit; kg
B: Load
Point
Height
m
A: Load radius
Max.
1.5 m 3.0 m 4.5 m 6.0 m 7.5 m
REACH
m
6.0 2140* 2140* 5.97
4.5 2900* 2900* 2950* 2310 2000* 1810 6.89
3.0 4570* 4570* 3660* 3490 3240* 2230 1990* 1580 7.39
1.5 7250* 5930 4660* 3240 3340 2120 2330* 1500 2080* 1480 7.56
0 6970* 5490 5000 3030 3230 2020 2290* 1490 7.42
-1.5 4030* 4030* 8710* 5370 4880 2930 3170 1970 2580 1620 6.95
-3.0 7050* 7050* 7960* 5420 4890 2940 3200 2000 3140 1960 6.08
-4.5 5810* 5630 3620* 3080 3510* 3020 4.57
NOTE: When the lifting hook is used, the maximum allowable lifting load is 4 tons.
A: Load radius
B: Load point height
C: Lifting capacity
