COMPONENT OPERATION / Axle
T3-10-12
FINAL DRIVE / AXLE SHAFT
The final drive is the device finally to reduce the speed
in the power transmission system, and is a planetary
gear type. As for power transmission, power from the
differential, is transmitted from the shaft, rotates three
planetary gears in the ring gear, and transmits rotation
of the planetary gear to the axle shaft through the
planetary carrier.

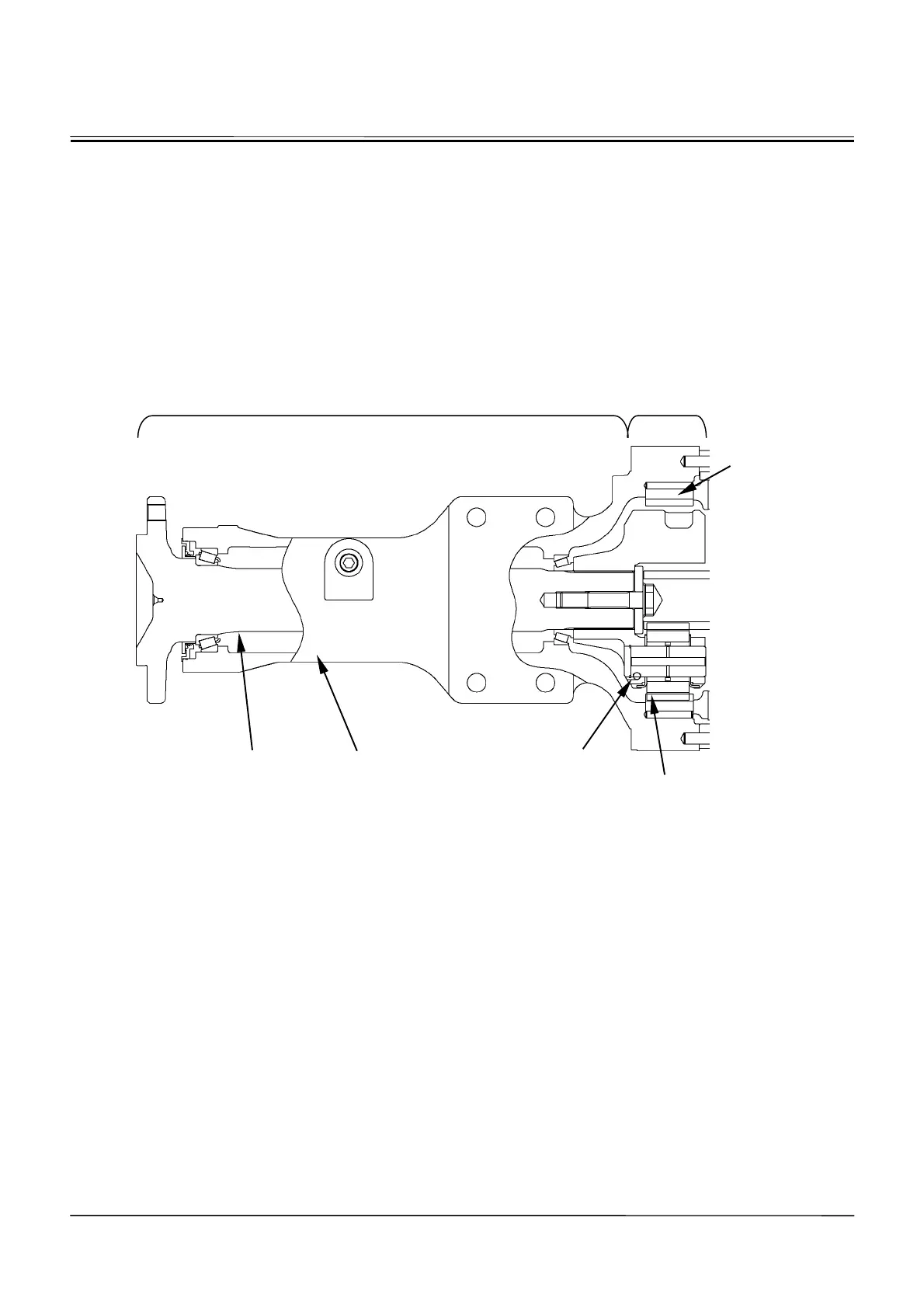

T4GD-03-10-002
Axle Shaft
Final
Drive
Ring Gear
Shaft Housing Planetary Carrier
Planetary Gear
To Next Page
